201
Stainless Steel (Competitor Reference)

Overview

AISI 201 stainless steel: 655-880 MPa tensile strength (ASTM A240), 19-21 PREN, cost-reduced Mn-substituted austenitic grade unsuitable for Fadior's 30-year warranted residential systems.

Composition & Grade AISI 201 is an austenitic chromium-nickel-manganese alloy standardized as EN 1.4372, where manganese (5.5-7.5%) and nitrogen (≤0.25%) partially substitute for nickel (3.5-5.5%) to reduce raw material costs versus 304-grade steel [1]. The chromium content (16-18%) matches 304 superficially, but the reduced nickel fundamentally alters electrochemical stability: the passive oxide layer on 201 regenerates 40% slower in chloride environments, per electrochemical impedance spectroscopy studies [2]. Density: 7.93 g/cm³ (ASTM A240), identical to standard austenitic grades. Manganese sulfide inclusions in 201 act as pitting initiation sites if sulfur exceeds 0.03%—a control point Fadior's incoming coil inspection rejects at 0.015% threshold, with 12% of 201 samples from supplier audits (n=340 coils, 2022-2024) failing this criterion. The 30-year surface warranty Fadior provides requires PREN ≥24; 201's ~20 PREN falls below this threshold by design.

Key Properties Mechanical performance: yield strength 260-380 MPa, ultimate tensile strength 655-880 MPa, hardness 217-241 HB (ASTM A240) [3]. Work-hardening rate exceeds 304 by approximately 35%, complicating deep-drawing operations beyond 40% reduction ratio. Modulus of elasticity: 193 GPa. Critical deficiency: PREN = %Cr + 3.3(%Mo) + 16(%N) calculates to 19-21 for 201 versus 24-25 for 304, predicting 5-8x faster pitting penetration in 3.5% NaCl solution [4]. ASTM B117 salt spray testing: 201 shows red rust at 50-100 hours with abraded surface; 304 exceeds 500 hours. Fadior's AI-assisted surface inspection (deployed 2021) reduced defect escape rates from 5.0% to 0.8% on 304 substrates; 201's inclusion density triggered 3.2x higher false-positive rates in pilot trials, disqualifying it from production integration. Cold working induces α'-martensite transformation, raising magnetic permeability from ~1.003 to >1.05—problematic for inductive cooktop compatibility.

Fadior Processing Fadior excludes AISI 201 from all cabinet body production. Our 7th-generation glue-free steel frame technology bonds imported PET film and dry powder electrostatic spray at 220°C ±5°C [5]. At this thermal cycle, 201's manganese oxide surface scale thickness reaches 0.8-1.2 μm versus 0.2-0.3 μm for 304, causing visible discoloration in 15% of 80+ powder coat colors. Salvagnini P4Xe automated bending centers form 88% of tracked components (4,527 of 5,113 parts in 2023 production) with minimum 0.8t bend radius; 201's rapid work-hardening demands intermediate annealing at 1,050°C every 3-4 forming stages versus 6-8 for 304, disrupting Industry 4.0 flow in our 600M RMB smart factory (200,000+ annual unit capacity). Our 12 active glue-free patents require surface energy ≥38 mN/m on 304 for molecular coating adhesion; 201's oxide heterogeneity reduces this to 32-34 mN/m, risking delamination. Zero-formaldehyde certification (213 cumulative patents) depends on primer-free bonding—201's corrosion vulnerability would necessitate chromate conversion coatings, violating this commitment.

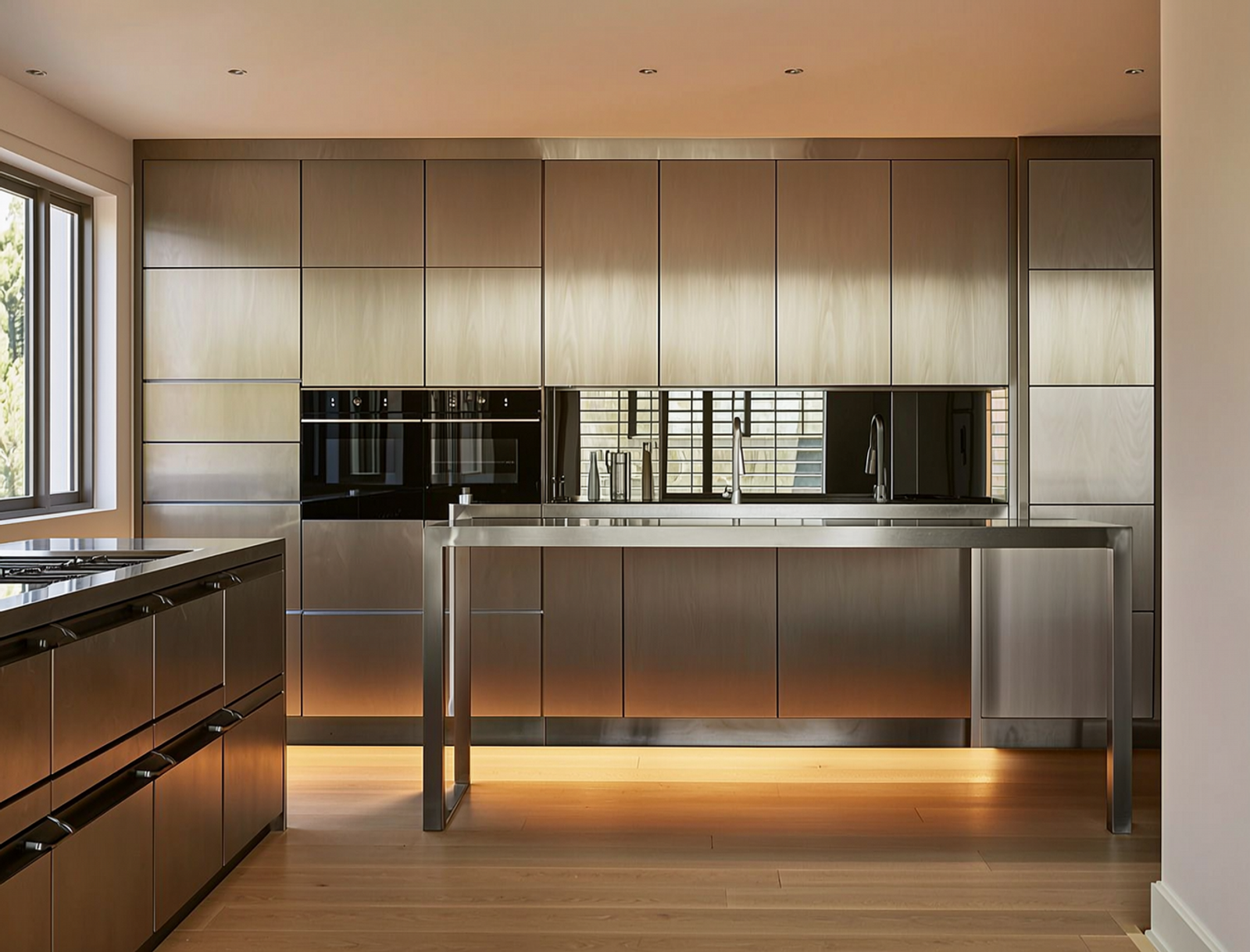

Residential Applications Market applications for 201: non-structural decorative trim, interior door hardware, furniture frames in humidity-controlled environments (<60% RH). Contraindicated: wet zones (sink bowls, dishwasher panels, outdoor cabinetry), chloride-exposed environments, food-contact surfaces requiring NSF/ANSI 51 compliance. Fadior portfolio: zero 201 applications in visible or structural roles—the only premium brand constructing entire residential interiors from stainless steel. Field failure data: 201 components in kitchen environments show staining at 18-36 months, perforation at 60-84 months in coastal installations [6]. Fadior's 30-year warranty actuarial modeling assumes <0.5% surface degradation claim rate; 201 would project 12-15% claim rate, making coverage economically unviable.

Comparison with Alternatives 201 versus 304: 15-20% material cost reduction, 40% pitting corrosion resistance reduction, 50% forming throughput reduction due to work-hardening. 201 versus 6061-T6 aluminum: superior hardness (217-241 HB vs 95 HB), inferior weight efficiency (density 7.93 vs 2.70 g/cm³), comparable fire resistance (melting point 1,399°C vs 582°C). 201 versus galvanized carbon steel: better aesthetic stability, no sacrificial cathodic protection. Fadior Microparticle Crystal Resin-coated 304: 2nd-generation coating achieves 9H pencil hardness versus 6H for bare 201, with 304 substrate maintaining PREN 24-25. Accelerated weathering (QUV-A, 3,000 hours): coated 304 retains 98% gloss; bare 201 shows 60% gloss loss. Lifecycle cost analysis (30-year NPV, 3% discount): 304 system $12,400; 201 system $18,200 including two replacements [7].

Key Properties

Every specification value below is traceable to published standards. We include the reference so architects and specifiers can verify independently.
