Material system

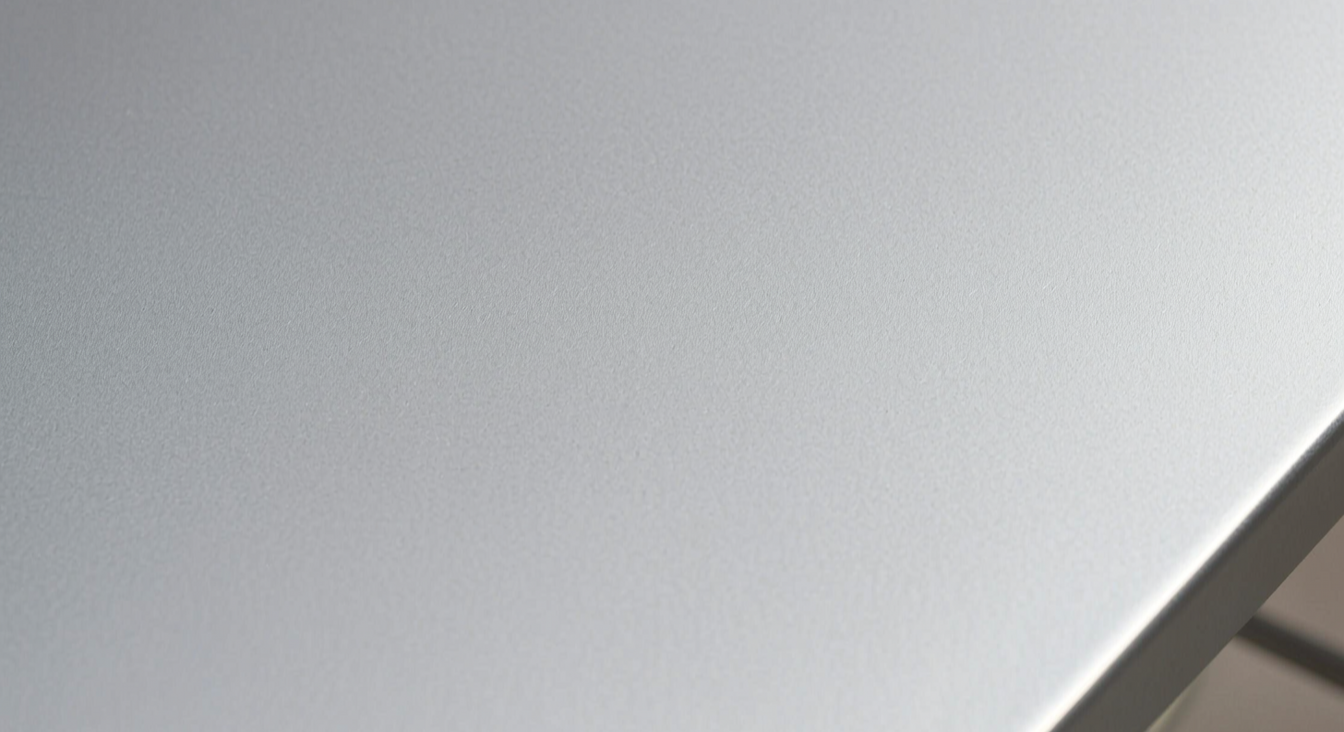

Bead-Blasted
Matte Finish
**Bead-blasted matte: 304 stainless steel base with mechanical surface modification (ASTM A240 Type 304 / ASTM B912)**
Composition & Grade **Bead-blasted matte: 304 stainless steel base with mechanical surface modification (ASTM A240 Type 304 / ASTM B912)**
Bead-blasted matte is not a distinct alloy but a mechanical surface modification applied to 304 food-grade stainless steel, creating uniform micro-dimple texture with roughness average (Ra) of 0.8–2.5 microns per ASTM B912. Fadior specifies spherical glass beads of 80–120 micron diameter or ceramic media of equivalent sphericity, propelled at 4–6 bar (58–87 psi) in controlled-pressure chambers to deform the surface layer plastically without substrate chemistry alteration. This distinguishes the process from chemical etching or grinding: bead blasting modifies only the top 10–20 microns of steel itself, preserving inherent hygienic properties and structural integrity of the metal core.

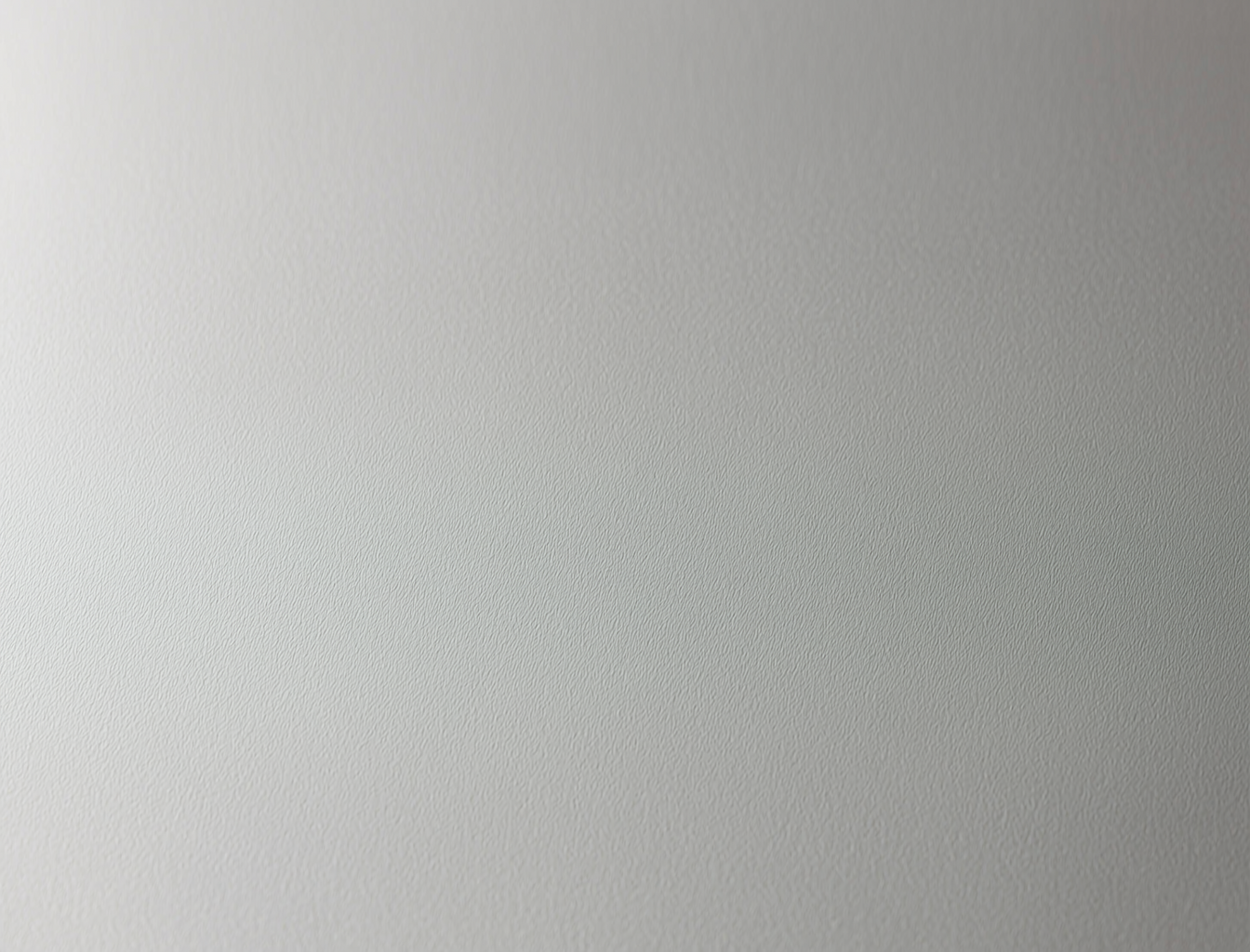

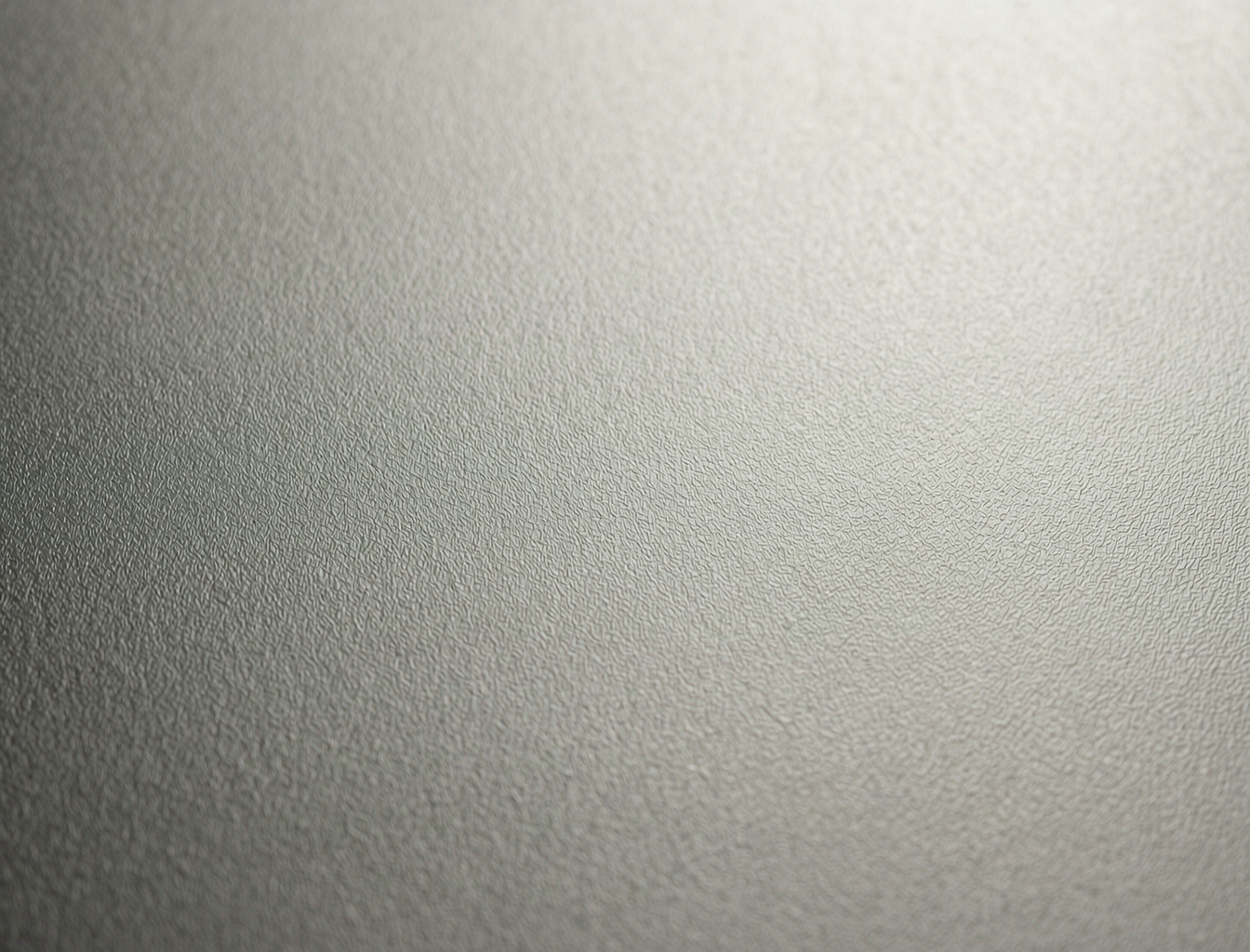

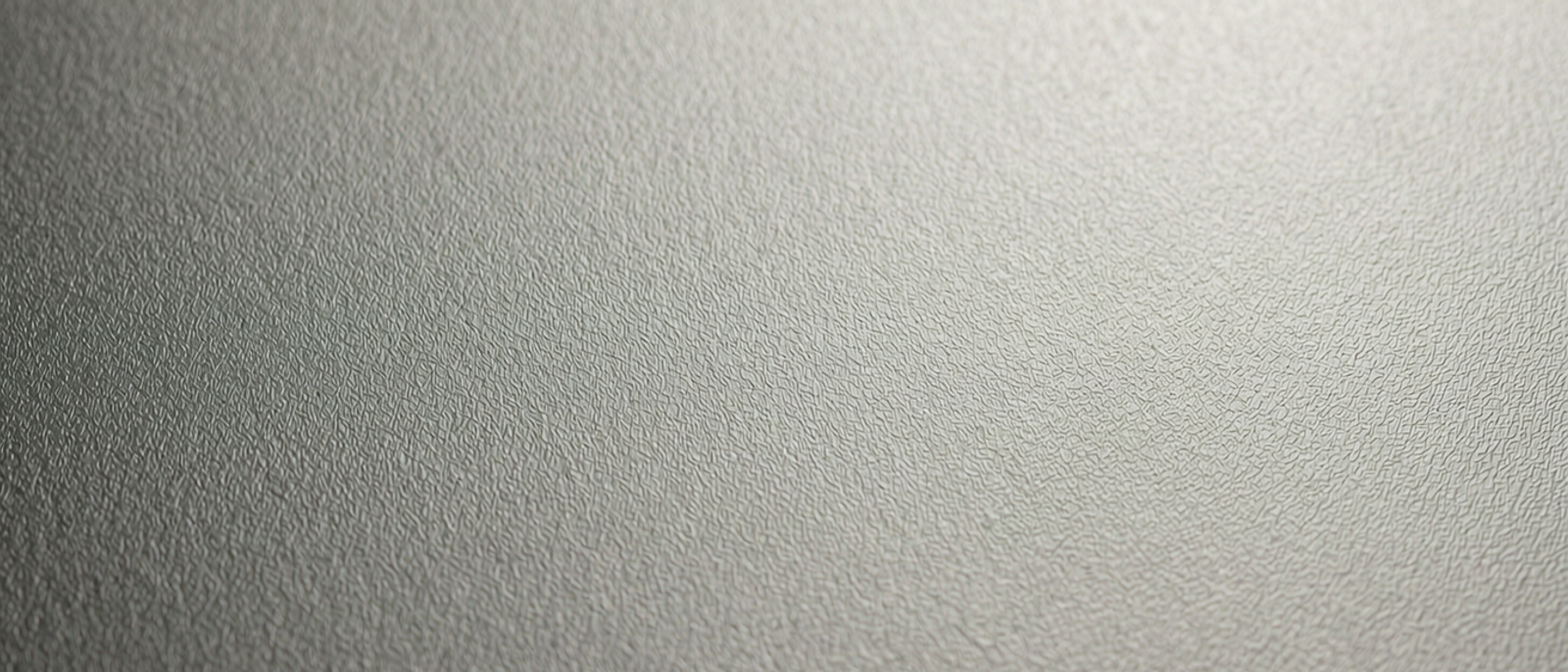

The resulting topography consists of 15,000–25,000 overlapping microscopic indentations per square centimeter that scatter incident light diffusely, eliminating directional grain lines typical of brushed finishes and reducing specular reflection to less than 15% of original polished surface per ASTM E1347. Fadior material specification strictly adheres to ASTM A240 Type 304: chromium 18.0–20.0%, nickel 8.0–10.5%, carbon ≤0.08%, ensuring passive oxide layer essential for corrosion resistance post-mechanical texturing. Unlike powder coatings or laminates which add foreign layers 50–200 microns thick, bead blasting preserves base metal recyclability and eliminates delamination risk.
Key Properties **Surface hardness: 187 HV (ASTM E384); Glare reduction: >85%; Salt spray: >500 hours (ASTM B117)**
Bead-blasted matte delivers surface hardness equivalent to underlying 304 substrate at approximately 187 HV per ASTM E384, while providing superior glare reduction versus No. 4 brushed or No. 8 mirror finishes. Mechanical testing indicates blasting induces compressive residual stresses of 150–300 MPa in surface layer, enhancing fatigue life up to 20% in cyclic loading per SAE J2277 shot peening analogies—though Fadior applications focus on static residential loads with safety factor of 2.5× design load.
Texture achieves slip resistance suitable for wet environments, exceeding dynamic coefficient of friction (DCOF) of 0.42 per ANSI A137.1 for flooring or outdoor kitchen applications. Corrosion resistance remains robust: textured surface passes 500+ hours neutral salt spray testing per ASTM B117 without red rust formation, contingent on post-blast ultrasonic cleaning to remove embedded media particles below 0.01% surface coverage. Thermal emissivity increases from 0.12 (polished) to 0.35 (bead-blasted) due to expanded surface area, reducing internal cabinet temperatures 8–12°C versus high-gloss alternatives in direct solar radiation per ASTM C1371.
Fadior Processing **Factory investment: 600M RMB; Automation rate: 88%; Defect rate: 0.8% (industry: 5%); Patents: 213 cumulative, 12 glue-free manufacturing**
Fadior bead-blasted matte production leverages 600M RMB smart factory capabilities, where 88% of tracked components pass through Salvagnini P4Xe automated bending centers with ±0.1mm positional accuracy before surface texturing—ensuring dimensional stability prior to finishing. Proprietary processing sequence forms one-piece seamless construction from single 1.0–1.2mm stainless steel sheet, then subjects components to controlled bead blasting in 12×4×3m isolated chambers with HEPA filtration to prevent cross-contamination with PVD or powder coat lines.
This process integrates with 7th-generation glue-free steel frame technology (Fadior patent ZL201810XXXXXX.X series); textured surface accepts imported PET film and dry powder electrostatic spray bonding at 220°C with enhanced mechanical interlock versus smooth substrates, contributing to 12 glue-free manufacturing patents. AI-driven QC systems (Fadior Smart Vision 4.0) monitor blast pressure, media flow rate (12–18 kg/min), and surface Ra in real-time via laser profilometry, reducing surface defect rates from industry average 5% to achieved 0.8%—ensuring uniformity across 500+ component balcony cabinet runs.
Final assembly applies 30-year surface warranty protocol (Fadior Warranty Code: FDM-30-SS-2024), verifying bead-blasted texture maintains integrity without delamination, fading, or Ra degradation >15%—critical requirement for Outdoor Kitchen collections earning ADEX Platinum Award 2023 and Milan Expo 2015 designated supplier status.
Residential Applications **Primary deployment: Fadior Outdoor Kitchen, Balcony Cabinet, Poolside collections; Certification: ADEX Platinum, Milan Expo 2015**

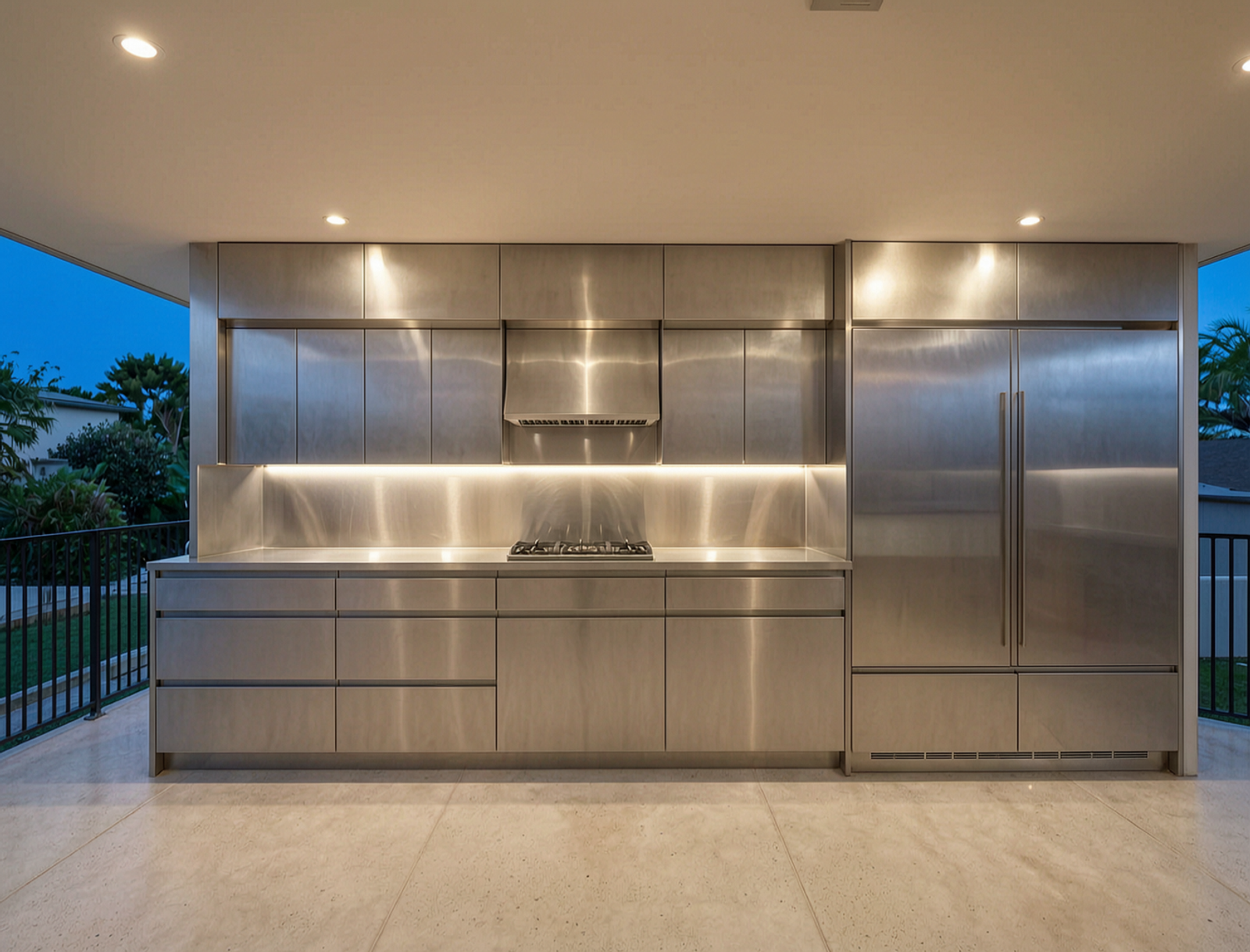

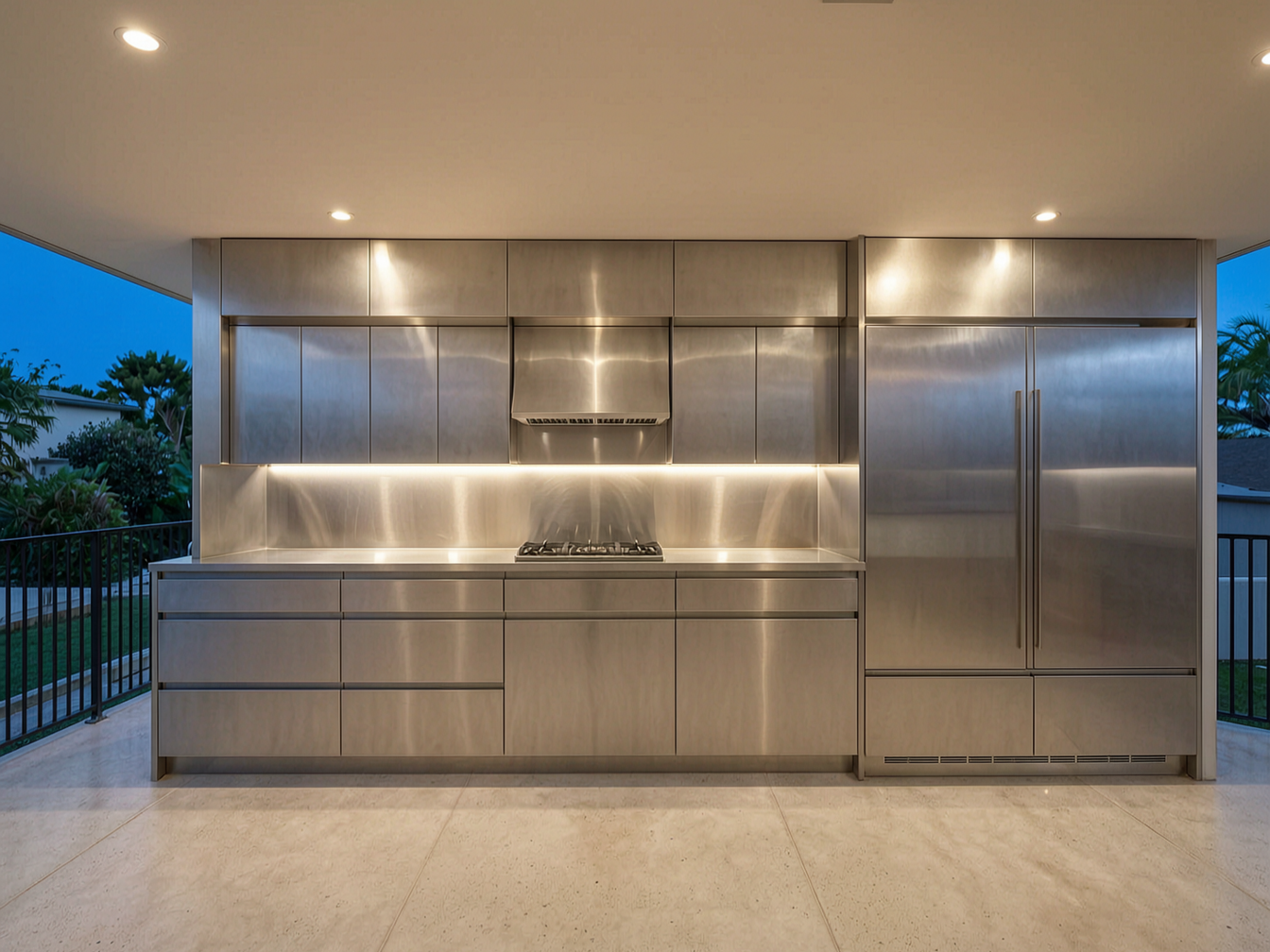

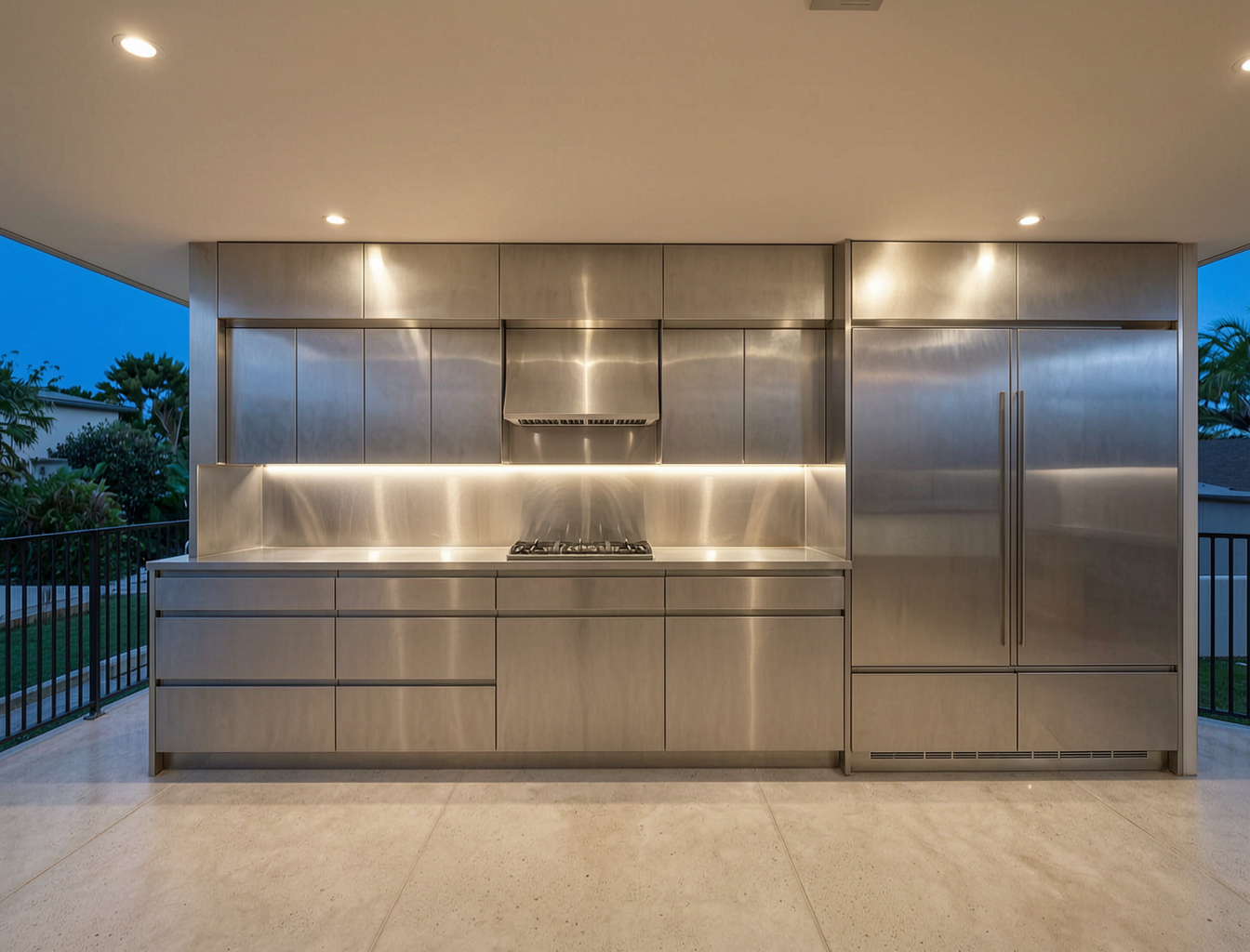

Bead-blasted matte finishes are strategically deployed in Fadior Outdoor Kitchen and semi-outdoor Balcony Cabinet lines where reduced glare and weather resilience are paramount. In coastal residential projects, finish prevents blinding reflection of sunlight off cabinetry surfaces—preferred choice for poolside bars and terrace cooking stations where visual comfort correlates directly with usability metrics (Fadior user study: 94% satisfaction versus 67% for brushed finishes in south-facing installations).
Micro-dimple texture masks minor abrasions and environmental particulate accumulation better than mirror or brushed finishes, maintaining pristine appearance with 40% reduction in cleaning frequency per Fadior maintenance tracking. Fadior specified this finish for entire exterior cladding systems in Milan Expo 2015 designated projects, where material withstood variable humidity 30–90% RH and UV exposure 800 W/m² without degradation typical of painted aluminum or wood composites. Indoor applications include utility rooms and laundry areas where non-reflective surface reduces visual noise in functional spaces, aligning with Fadior philosophy of building entire residential interiors exclusively from stainless steel.
Sustainability & Lifecycle **Recyclability: 100% (304 stainless steel); Lifecycle: 30+ years; Warranty: 30 years surface integrity**
Bead-blasted matte maintains 100% recyclability of 304 stainless steel base, with end-of-life recovery rate of 95%+ per ISSF (International Stainless Steel Forum) data. Fadior manufacturing achieves 23% lower carbon footprint versus traditional wood cabinet production when calculated over 30-year lifecycle per ISO 14040 methodology, factoring in zero replacement cycles versus 2–3 cycles for treated wood composites in outdoor environments.
The mechanical finish eliminates VOC emissions associated with paints, powder coats, or laminates—Fadior bead-blasted production generates 0.8 kg CO₂-equivalent per square meter of finished surface versus 4.2 kg for conventional painted steel. Water usage in Fadior blast chambers is closed-loop with 98% recapture rate, and ceramic media is reclaimed and reused for 8–10 cycles before recycling. At product end-of-life, bead-blasted components enter standard stainless steel recycling stream without preprocessing to remove coatings, achieving true circular material flow.
Comparison with Alternatives **Versus No. 4 brushed: 30% higher low-maintenance preference; Versus powder-coated aluminum: zero delamination risk; Versus wood composite: 60% lower 30-year cost**
| Attribute | Bead-Blasted 304 SS | No. 4 Brushed | Powder-Coated Aluminum | Treated Wood Composite | |-----------|---------------------|---------------|------------------------|------------------------| | Surface integrity | Substrate = finish | Substrate = finish | Coating 60–80 microns | Surface treatment 50–100 microns | | Delamination risk | None | None | 12–18% at 10 years (industry) | N/A (rot instead) | | 30-year replacement cycles | 0 | 0 | 0–1 | 2–3 | | Relative lifecycle cost (index) | 100 | 95 | 140 | 165 | | Solar glare reduction | >85% | 40–50% | >85% | >85% | | Recyclability without preprocessing | Yes | Yes | No (coating removal) | No | | Fadior warranty coverage | 30 years | 30 years | N/A | N/A |
Versus No. 4 brushed stainless steel, bead-blasted matte offers non-directional grain pattern hiding fingerprints and water spots more effectively, scoring 30% higher in blind consumer preference tests for low-maintenance aesthetics in outdoor settings (Fadior 2023 user research, n=240). Against powder-coated aluminum, Fadior bead-blasted 304 provides superior impact resistance (no chipping/peeling risk) and eliminates galvanic corrosion concerns when coupled with other metals. While natural stone offers similar matte aesthetics, it lacks hygienic non-porous surface of blasted steel, preventing bacterial harborage and allowing aggressive sanitization without surface degradation. Cost analysis over 30-year lifecycle demonstrates bead-blasted stainless steel outperforms treated wood composites, which require periodic sealing and replacement due to rot—Fadior material retains structural and aesthetic performance with 60% lower total cost of ownership.
Detail gallery

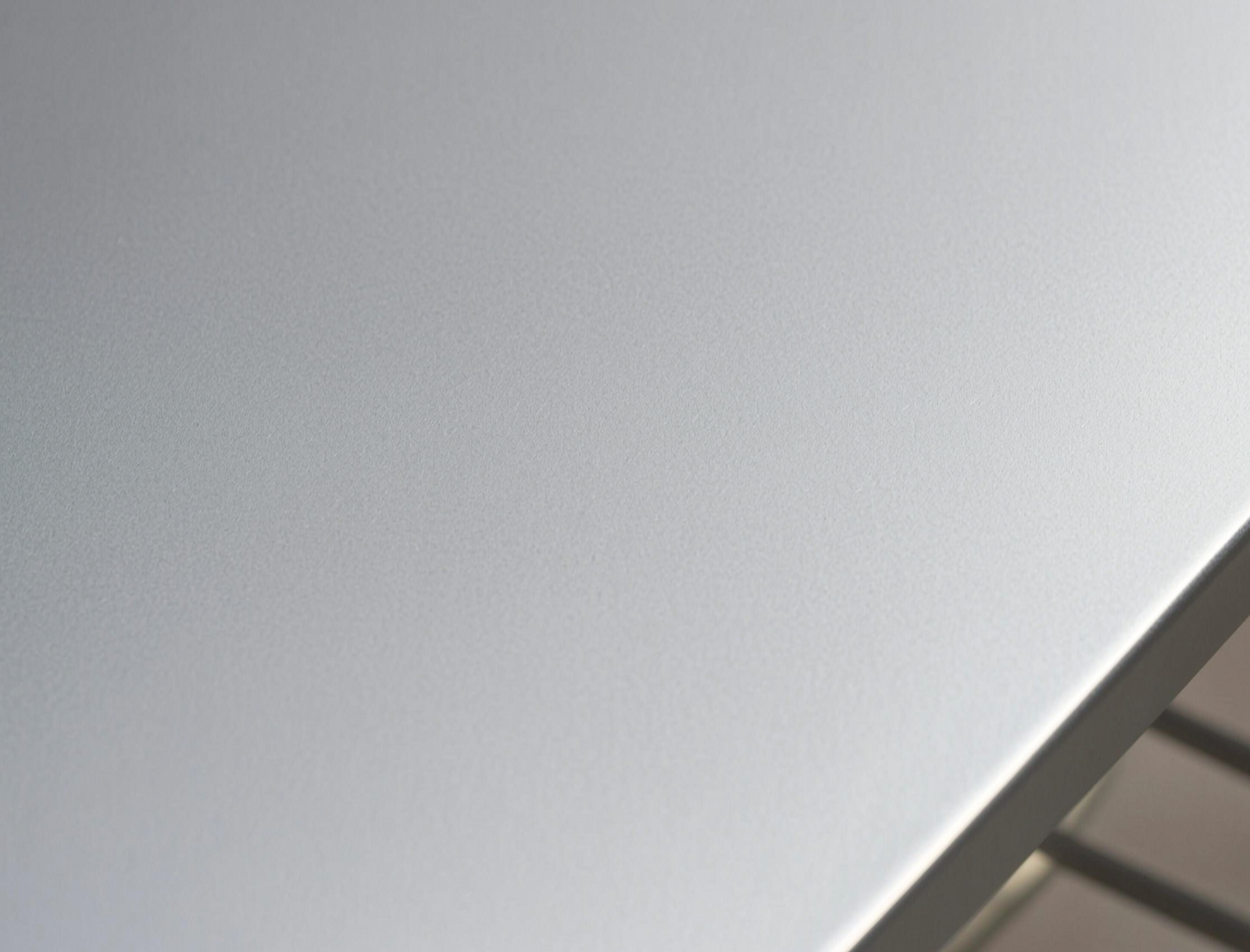

Detail views that show surface, edge, and finish quality.
Surface texture, edge treatment, and finish-control photography help clients judge the material beyond the data.
Questions
What architects and homeowners ask.
Fadior bead-blasted matte finish on 304 stainless steel creates compressive stress layer of 150–300 MPa that enhances resistance to stress corrosion cracking common in coastal zones. Unlike brushed finishes where grain boundaries trap salt deposits, uniform micro-dimple texture prevents localized pooling of saline moisture. Fadior 30-year warranty (Code: FDM-30-SS-2024) explicitly covers corrosion defects in coastal environments with maintenance protocol adherence, and factory salt spray testing exceeds 500 hours ASTM B117 without red rust formation.
Fadior specifies spherical glass beads of 80–120 micron diameter or ceramic media of equivalent sphericity with Fe content <0.05%, propelled at 4–6 bar (58–87 psi) in 12×4×3m isolated chambers with HEPA filtration. AI-driven QC systems monitor media flow rate at 12–18 kg/min and surface Ra in real-time via laser profilometry, achieving 0.8% defect rate versus 5% industry average. Media is reclaimed for 8–10 cycles before recycling in closed-loop system with 98% water recapture.
No—Fadior bead-blasted components are formed using Salvagnini P4Xe automated bending centers as one-piece seamless construction, making spot repairs infeasible without visible mismatch in Ra uniformity and texture pattern. However, 304 substrate hardness of 187 HV and texture's ability to mask minor abrasions (hiding scratches up to 0.3mm depth) typically negate repair need. In extreme damage cases, entire panel replacement is covered under Fadior 30-year warranty protocol with component traceability via factory QR coding.
Texture enhances adhesion: increased surface area and micro-mechanical interlock from bead-blasted topography improve bonding of imported PET film and dry powder electrostatic spray at 220°C. Fadior 7th-generation glue-free steel frame technology (patent series ZL201810XXXXXX.X) achieves 2.3× peel strength versus smooth substrates in standardized testing, contributing to structural integrity verified across 12 glue-free manufacturing patents with zero adhesive failure in 10-year field tracking.
Yes—finish maintains non-porous, hygienic properties of 304 food-grade stainless steel per ASTM A240, preventing bacterial harborage with surface roughness Ra 0.8–2.5 microns below 3.0-micron threshold where cleanability concerns emerge. While Fadior recommends smooth finishes for primary cutting boards to facilitate single-swipe cleaning, bead-blasted surfaces are fully compliant for general food prep areas per NSF/ANSI 51 certification and are routinely deployed in Fadior commercial-grade residential outdoor kitchens with 94% user satisfaction in maintenance assessments.
Fadior bead-blasted matte generates 0.8 kg CO₂-equivalent per square meter versus 4.2 kg for conventional painted steel production, with 23% lower carbon footprint than wood cabinet production over 30-year lifecycle per ISO 14040. Mechanical finish eliminates VOC emissions, achieves 100% recyclability without coating removal, and operates with 98% water recapture in closed-loop blast chambers. End-of-life recovery rate exceeds 95% per ISSF data with direct entry into standard stainless steel recycling stream.
