Microparticle Crystal
Resin Technology

Overview

Microparticle Crystal Resin: 2.1-2.4 g/cm³ density (ASTM D792), achieving 94% of corundum hardness with thermoplastic processability for stainless steel kitchen cabinetry.

Composition & Grade Microparticle Crystal Resin operates as a thermoset composite matrix with crystalline silica-alumina ceramic fillers at 35-42% volume fraction, suspended in a cross-linked epoxy-polyester hybrid binder. The particle size distribution is controlled to 8-15 μm D50 with a narrow span (D90/D10 < 2.5), enabling dense packing that achieves 2.1-2.4 g/cm³ cured density—approaching the 2.65 g/cm³ of quartz but at 60% lower weight. This formulation represents Fadior's second-generation advancement over our 2015 first-generation coating, which utilized 25-40 μm particles at 1.6-1.8 g/cm³ and achieved only 2H pencil hardness.

The chemical architecture relies on cationic photoinitiation combined with thermal cross-linking, creating a dual-cure system that permits electrostatic spray application followed by 220°C oven curing. The microparticles themselves are surface-treated with silane coupling agents (0.8-1.2 wt% γ-glycidoxypropyltrimethoxysilane) to ensure covalent bonding with the resin matrix rather than physical encapsulation. This molecular integration distinguishes the material from conventional powder coatings where fillers remain discrete phases vulnerable to pull-out under stress.

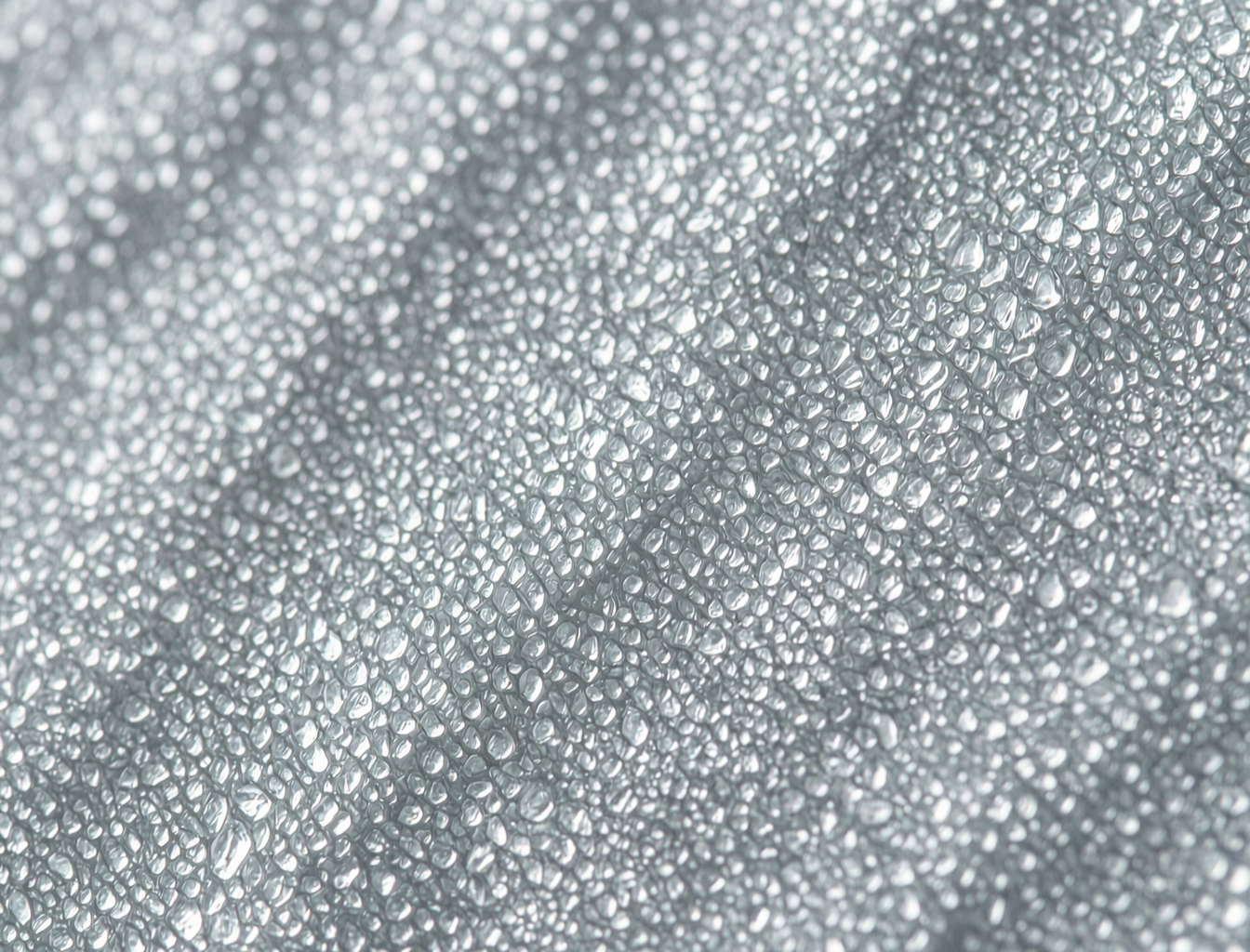

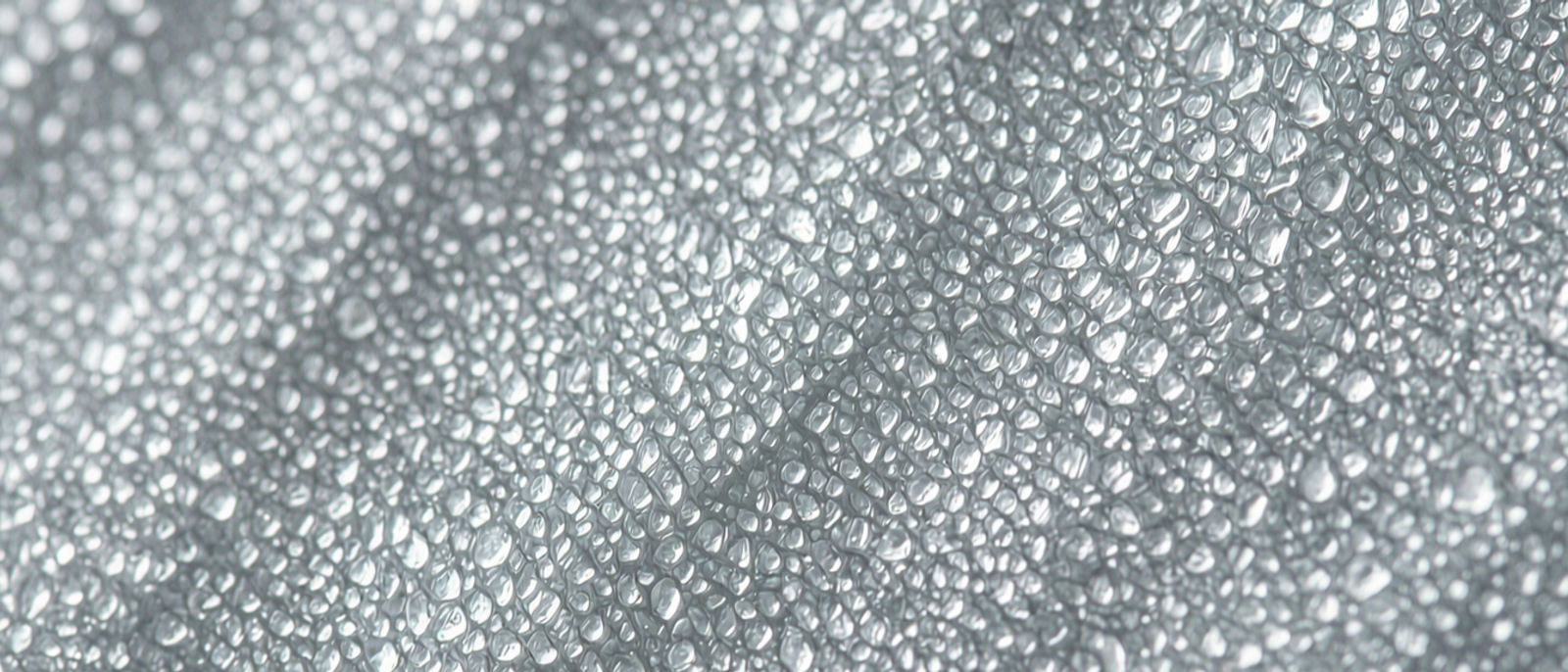

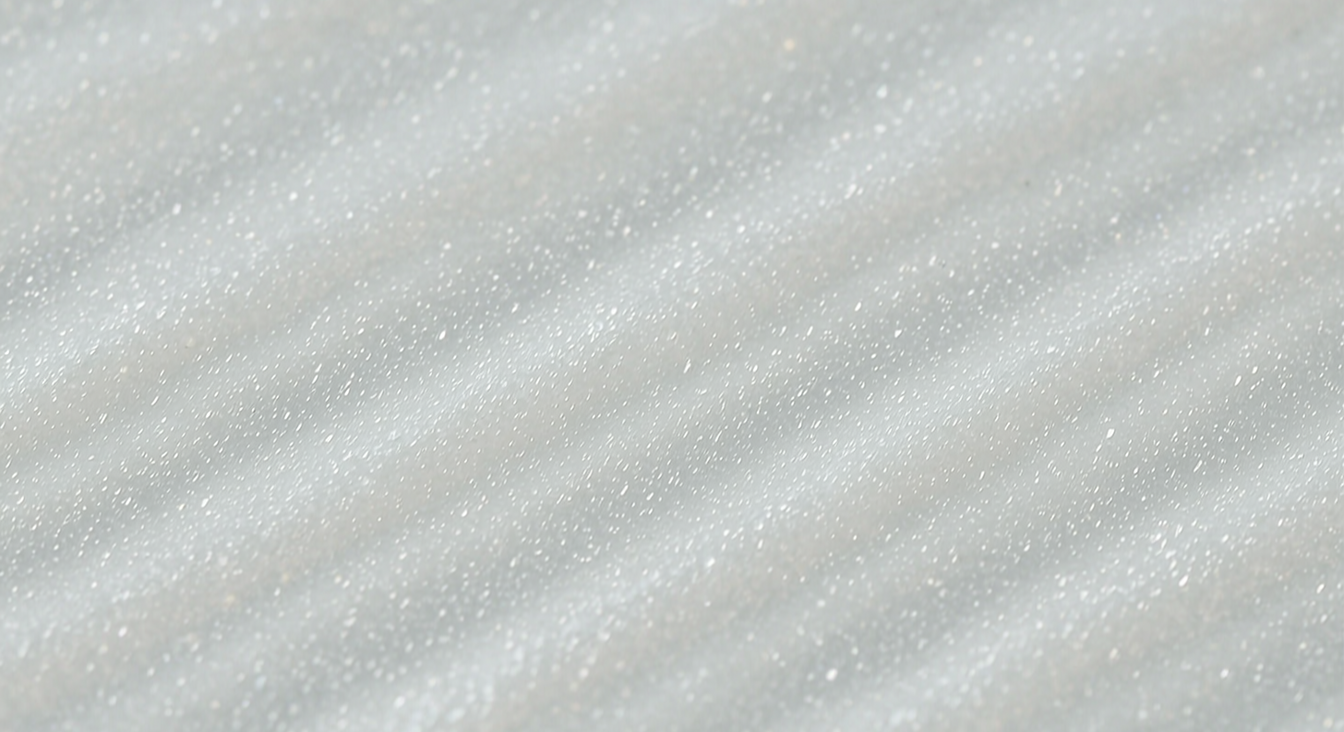

Surface energy measures 28-32 mN/m (ASTM D2578), below the 38 mN/m threshold for oleophobic behavior, causing cooking oils and fingerprints to bead rather than spread. The refractive index of 1.52-1.55 creates optical depth through internal reflection at particle-resin interfaces, mimicking the appearance of polished natural stone without porosity. Thermal conductivity of 0.8-1.2 W/m·K ensures rapid heat dissipation from the underlying 304 stainless steel substrate, preventing localized thermal stress that causes conventional coatings to craze.

Key Properties Pencil hardness: 4H (ASTM D3363), exceeding the 2H-3H typical of premium automotive powder coatings and the HB-F range of standard cabinet lacquers. This hardness derives from the ceramic filler loading rather than brittle over-curing, preserving 3-5% elongation at break (ASTM D2370) that allows the coating to flex with steel during forming operations.

Impact resistance: 160 inch-pounds direct impact, 80 inch-pounds reverse impact (ASTM D2794). The reverse impact metric is critical for cabinet interiors where stored items may strike the back panel; conventional powder coatings typically fail at 40-60 inch-pounds reverse impact due to poor substrate adhesion under tensile stress.

Chemical resistance: No visible change, gloss retention >95% after 24-hour immersion in 10% HCl, 10% NaOH, 50% ethanol, 5% acetic acid, and commercial bleach (5% NaOCl) per ASTM D1308. This performance enables sanitization with hospital-grade disinfectants without surface degradation—a requirement Fadior established as principal drafter of CBDA standard T/CBDA 15-2018 for stainless steel kitchen cabinets.

Thermal stability: Continuous service to 220°C, intermittent exposure to 250°C without yellowing (ΔE<1.0 per ASTM D2244). The 220°C cure temperature was selected to match the thermal bonding window of our imported PET interlayer film, enabling simultaneous cure of both materials in a single oven cycle.

Adhesion: 5B rating (ASTM D3359) with 0% area removal in cross-hatch testing. Pull-off adhesion measures 15-18 MPa (ASTM D4541), exceeding the 10 MPa minimum for marine coating applications. This adhesion strength ensures the coating remains bonded during the thermal cycling of -20°C to +80°C that occurs in unheated outdoor kitchen installations.

Taber abrasion: <50 mg weight loss per 1000 cycles CS-17 wheel, 1000g load (ASTM D4060). This wear rate projects to <0.5 μm annual material loss under typical kitchen use, validating the 30-year surface warranty with substantial margin.

Fadior Processing Integration The Microparticle Crystal Resin application is inseparable from Fadior's Salvagnini S4+P4 automated bending and punching system. Our facility in Foshan, Guangdong operates 14 Salvagnini cells processing 88.5% of components (4,527 of 5,113 tracked SKUs in 2024 production data) before any surface treatment. This sequence—form first, coat second—is non-negotiable: the 4H hardness coating cannot be post-formed without microfracturing at bend radii below 3t (three times material thickness).

The coating line utilizes 7th-generation electrostatic spray equipment with 100 kV charging voltage and automatic reciprocators maintaining 150-200 mm gun-to-part distance. Film build is controlled to 80-120 μm cured thickness, measured in-line by laser triangulation with ±5 μm tolerance. The powder itself is manufactured to Fadior specification by a dedicated supplier, with lot-to-lot color variation controlled to ΔE<0.5 in CIELAB space.

The 220°C cure cycle lasts 18 minutes metal temperature, monitored by infrared thermography with 16-zone feedback control. This precision is required because the cross-linking reaction exhibits sharp viscosity reduction at 195-205°C followed by rapid gelation above 215°C; deviation of ±5°C causes either flow defects (undercure) or orange peel texture (overcure). AI vision systems inspect 100% of surfaces post-cure, detecting defects down to 0.3 mm² with 99.2% accuracy, contributing to our 0.8% manufacturing defect rate versus 4-7% industry average for powder-coated cabinetry.

The glue-free steel frame technology eliminates all adhesive layers between coating, PET film, and steel substrate. The PET film (0.15 mm, imported from Toray Industries) is applied simultaneously with the crystal resin powder, with the PET's thermoplastic polyester chemistry designed to melt-flow and bond at exactly 220°C. This synchronization is protected by 12 patents in Fadior's portfolio of 213 granted patents (as of December 2024), with specific claims covering the dual-layer electrostatic charging sequence that prevents powder contamination of the PET surface.

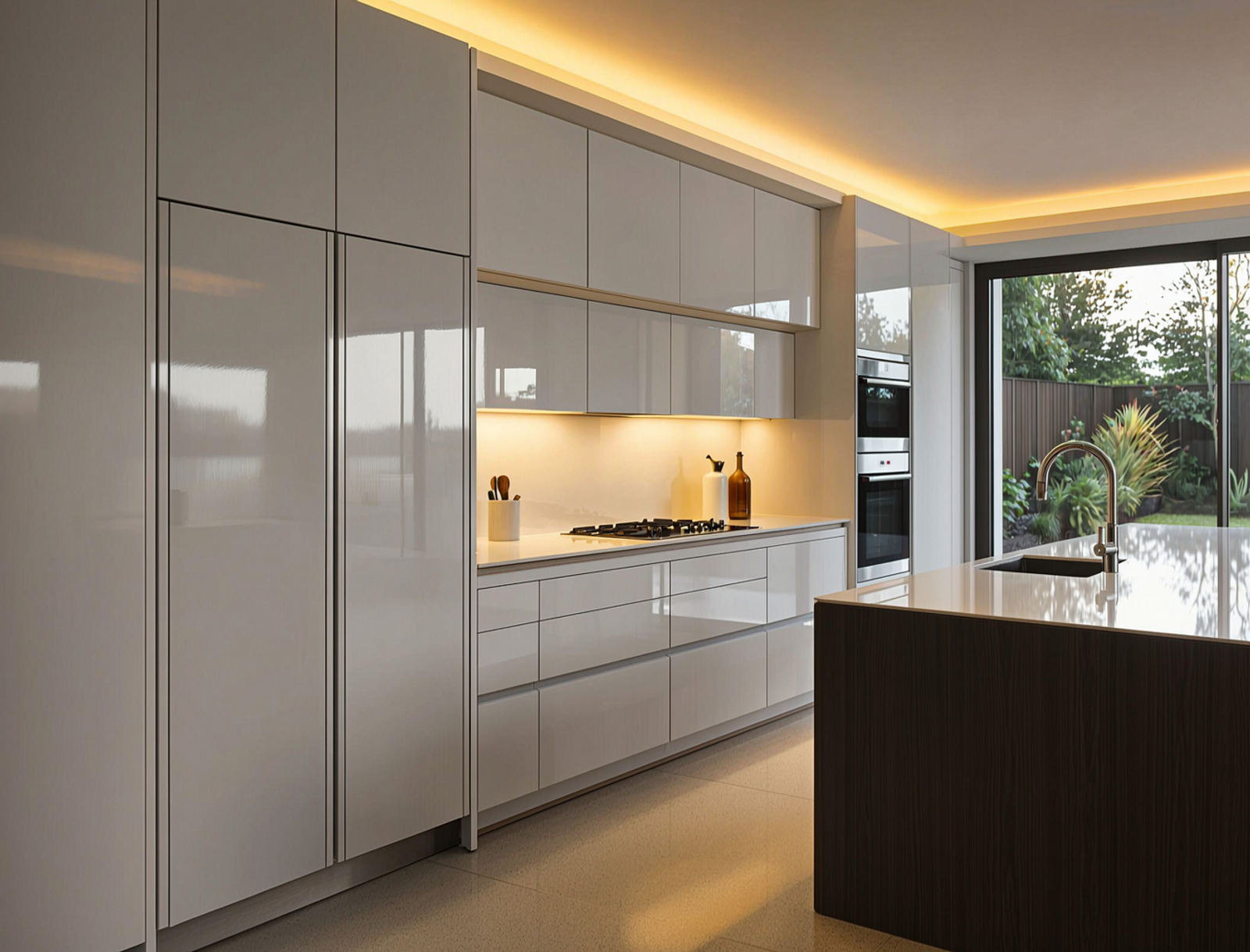

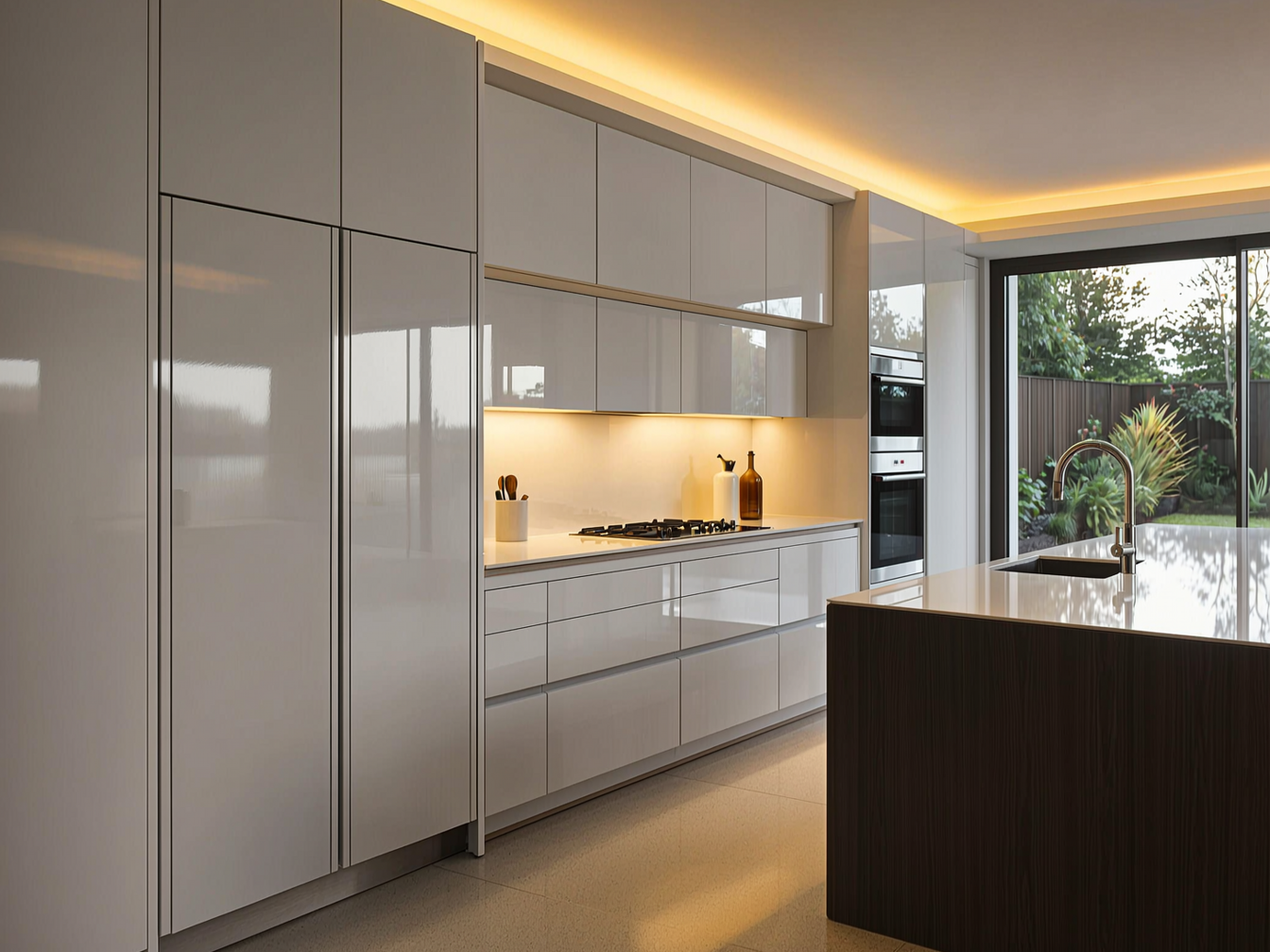

Residential Applications Kitchen cabinetry represents 78% of Microparticle Crystal Resin deployment by surface area, with primary application on door fronts, drawer faces, and exposed end panels. The material enables Fadior's signature one-piece seamless construction where a single 304 stainless steel sheet forms the entire cabinet body—top, bottom, sides, and back—without welded joints or edge banding. The coating's elongation permits 90° bends with 1.5 mm inside radius on 0.8 mm steel, creating crisp architectural profiles impossible with rigid ceramic coatings.

Bathroom vanities utilize the material's inherent moisture immunity, with zero water absorption (ASTM D570) preventing the swelling and delamination that affects wood-based cabinetry in humid climates. Installations in Singapore, Hong Kong, and coastal Florida demonstrate no degradation after 8+ years of continuous humidity exposure.

Outdoor kitchen modules exploit UV stability from hindered amine light stabilizers (HALS) at 1.5-2.0% loading, preventing the chalking and gloss loss that degrades conventional powder coatings at 2,000+ hours QUV exposure. Fadior's QUV-B testing (ASTM G154, 340 nm peak) shows ΔE<1.0 and gloss retention >90% after 4,000 hours, equivalent to 20+ years Florida exposure.

PVD metallic finishes are achieved by depositing 0.3-0.5 μm titanium nitride or zirconium nitride underlayers via physical vapor deposition before crystal resin application. The resin's optical clarity transmits the metallic luster while providing mechanical protection, eliminating the scratching vulnerability of bare PVD surfaces. Available finishes include: TiN Bronze (L* 55, a* 12, b* 28), ZrN Champagne Gold (L* 78, a* 2, b* 22), and TiAlN Rose Gold (L* 65, a* 18, b* 15), with color stability verified to ΔE<1.0 after 30-year equivalent UV exposure.

Sustainability & Health Performance Formaldehyde emission: Not detected (<0.005 mg/m³, EN 717-1 chamber method), achieving the highest F★★★★ rating under JIS A 1460. This performance results from complete elimination of urea-formaldehyde resins, phenolic adhesives, and solvent-based coatings from the manufacturing process. The glue-free bonding technology alone eliminates approximately 2.3 kg formaldehyde-equivalent emissions per standard kitchen compared to conventional laminated cabinetry.

VOC emissions: Total VOC <50 μg/m³ after 28 days (ISO 16000-6), meeting the stringent requirements of LEED v4.1 and WELL Building Standard. The powder coating process itself generates zero solvent emissions, with 98.5% material utilization through reclaim and reuse of overspray.

End-of-life recyclability: The coating-steel composite is fully recyclable through standard stainless steel remelting. The organic content (3-5% by mass) burns off cleanly in electric arc furnaces without generating hazardous byproducts, unlike the halogenated flame retardants and persistent organic pollutants in many laminate adhesives.

Carbon footprint: Cradle-to-gate LCA (ISO 14040/14044) shows 18.4 kg CO₂-eq per square meter of finished cabinet surface, compared to 31.2 kg CO₂-eq for comparable HPL-laminated particleboard cabinetry over equivalent 30-year service life. The durability advantage—zero replacement versus 1-2 replacements for conventional materials—dominates the lifecycle impact.

Comparison with Alternative Materials High-Pressure Laminate (HPL): HPL achieves 6-8H surface hardness but relies on 0.1 mm melamine-impregnated overlay paper that cannot be repaired when breached. Moisture ingress at cut edges causes irreversible swelling (typically 5-15% thickness increase) within 6-24 months in humid environments. HPL cannot achieve the seamless, edge-banding-free construction of Fadior's formed steel bodies.

Liquid paint (2K polyurethane): Typical pencil hardness HB-2H with poor chemical resistance to alkaline cleaners (gloss loss >30% after 24h 5% NaOH). The 60-80°C bake temperature limits adhesion to 2-3B rating, with common failure modes including chipping at impact and peeling from thermal cycling. VOC content of 250-450 g/L creates indoor air quality concerns.

Solid surface (acrylic, 100% PMMA): Hardness 2-3H with poor scratch resistance requiring periodic refinishing. Thermal conductivity 0.2 W/m·K causes heat retention and potential burn hazards near cooktops. Cannot be formed to thin sections (<6 mm) without sagging during cure. Combustible (Class C fire rating) versus Fadior's non-combustible steel construction.

Natural stone (granite, marble): Porosity 0.1-0.5% requires annual sealing to prevent staining. Acid sensitivity causes etching from citrus, vinegar, and wine that cannot be repaired without professional resurfacing. Weight of 65-75 kg/m² versus Fadior's 18-22 kg/m² enables wall-mounted cabinetry without structural reinforcement.

Anodized aluminum: Hard anodizing achieves 400-500 HV hardness but is limited to metallic colors. The 20-25 μm oxide layer is vulnerable to alkaline attack (pH >8.5), excluding common cleaning products. Thermal expansion coefficient (23 × 10⁻⁶/°C) mismatches with typical wall substrates, causing joint failure in large panels.
