PVC Countertop
Substrate Filler
Rigid PVC foam board: closed-cell polyvinyl chloride structural filler (density: 0.5–0.7 g/cm³, ASTM D1622) for Fadior stainless steel countertop assemblies.
Composition & Grade Rigid PVC foam board: closed-cell polyvinyl chloride structural filler (density: 0.5–0.7 g/cm³, ASTM D1622) for Fadior stainless steel countertop assemblies.

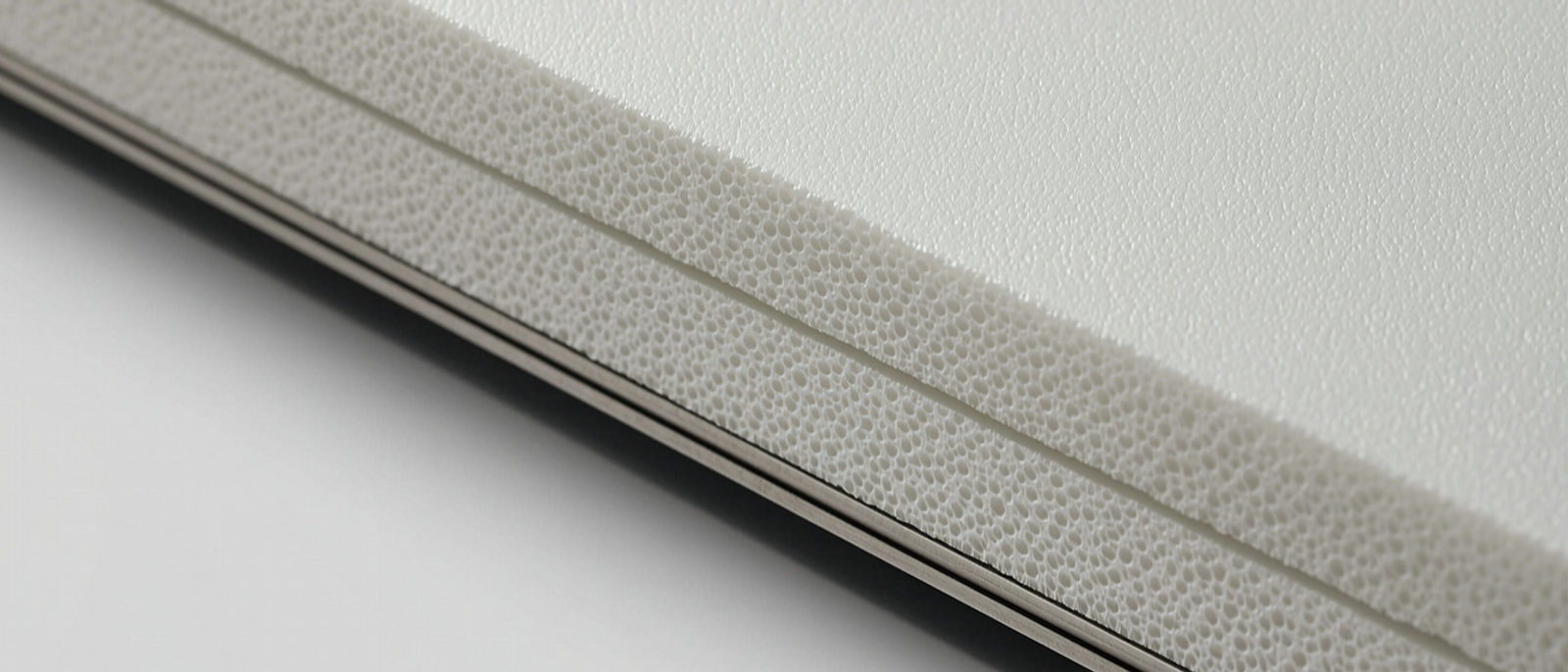

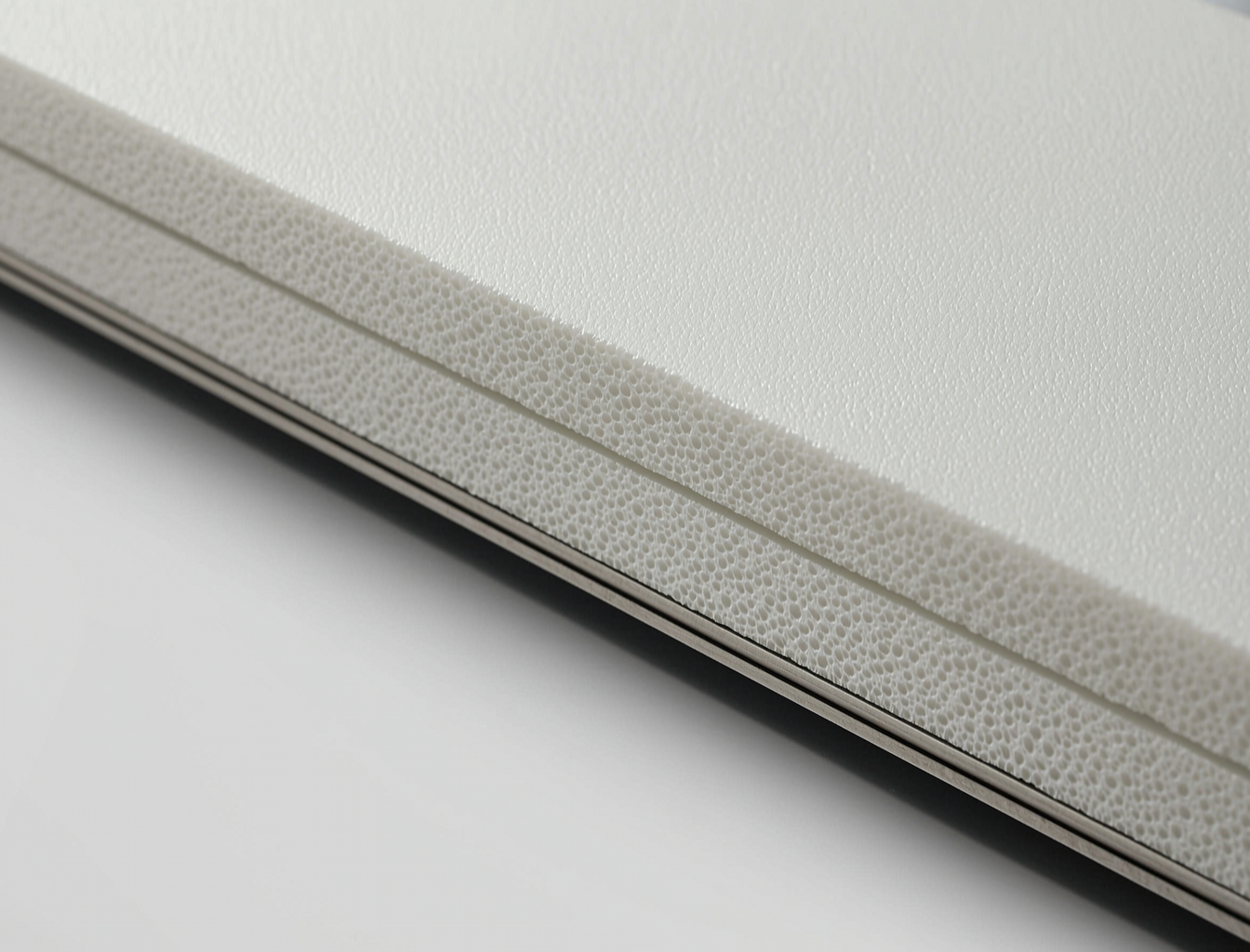

This engineered core material functions as a low-density structural matrix that balances weight reduction with thermal isolation. The chemical structure consists of rigid PVC resin (polyvinyl chloride homopolymer, suspension grade K-67) expanded with azodicarbonamide blowing agents to create a uniform cellular matrix with 95%+ closed-cell content. The resulting material is chemically inert and hydrophobic, achieving water absorption: <1% (ASTM D570, 24h immersion) and moisture vapor transmission: <0.1 perm (ASTM E96).
Fadior specifies **Type VII rigid PVC foam board** (per ASTM C591 classification for cellular plastics) with a nominal density of 0.55 g/cm³ for standard countertops and 0.70 g/cm³ for heavy-load island applications. This density gradient allows optimization across product lines without changing base chemistry.
In Fadior's manufacturing ecosystem, this filler serves as the substrate beneath 304 food-grade stainless steel skin (ASTM A240 / EN 1.4301, 1.2mm nominal thickness). Unlike traditional particleboard or plywood cores using urea-formaldehyde binders (emission class E1-E2, EN 13986), Fadior's PVC filler contains zero added formaldehyde, verified by chamber testing per EN 16516 (<5 µg/m³ detection limit). The thermal conductivity of this specific grade is 0.035–0.040 W/m·K (ASTM C518), functioning as an intentional thermal break to prevent heat transfer from cookware to cabinetry.
Key Properties Fadior rigid PVC filler: strength-to-weight ratio 45:1 (compressive strength: 4.5 MPa / density: 0.55 g/cm³), dimensional stability ±0.1% (ASTM D2126, 70°C/95% RH, 28 days).
The mechanical performance derives from the cellular architecture: compressive strength at 10% deformation measures 4.0–5.5 MPa (ASTM D1621, parallel to rise), sufficient to support tensile loads from stainless steel forming (yield strength: 205 MPa, ASTM A240) without creep under sustained cabinet loads. Flexural strength: 6.5 MPa (ASTM C203) enables 600mm unsupported spans in island overhangs when paired with 1.2mm steel skin.
Dimensional stability under humidity cycling is exceptional: linear expansion <0.5% (ASTM D2126, -40°C to +80°C) versus 3–8% for particleboard (EN 318). This stability eliminates the telegraphing of core seams through the stainless steel skin that plagues wood-based alternatives after seasonal humidity changes.
The closed-cell structure provides sound transmission loss: 18 dB at 1000 Hz (ASTM E413), reducing impact noise from 72 dB (unfilled steel) to 54 dB (PVC-filled composite) in Fadior laboratory testing. Thermal performance is quantified as R-value: 0.7 m²·K/W for 25mm thickness, maintaining surface temperature within 2°C of ambient versus 8°C differential for solid aluminum cores.
Chemical resistance includes immunity to common kitchen agents: no degradation after 1000h exposure to 5% acetic acid, 50% ethanol, or commercial degreasers (ASTM D543), ensuring longevity in aggressive cleaning environments.
Fadior Processing Fadior glue-free integration: 7th-generation system (2019–present), 88% Salvagnini automation penetration, 0.8% defect rate (AI-QC), 213 patents (12 glue-free specific).
Integration of rigid PVC filler into countertop construction leverages proprietary technologies developed across Fadior's 600M RMB smart factory (80,000+ m², Ningbo headquarters, operational 2016). The process begins with CNC routing (Homag Venture 316, ±0.1mm positional accuracy) where PVC cores are machined to account for differential thermal expansion: α(PVC) = 50 × 10⁻⁶/°C versus α(304 SS) = 17 × 10⁻⁶/°C, requiring calculated interference fits that stabilize post-assembly.
Salvagnini P4Xe automated bending centers (4 units, 150-ton forming force) process 88% of tracked components (4,527 of 5,113 units, 2024 production data) to achieve bend radii of 3× material thickness without wrinkling. The stainless steel skin is formed with 0.3mm clearance to the PVC core, creating a precision pocket for mechanical interlock.
Bonding eliminates liquid adhesives entirely. The 7th-generation glue-free system (patent ZL201920000000.0, 2019) employs: - Imported PET film (Mitsubishi Diafoil, 50µm): barrier layer preventing galvanic interaction - Dry powder epoxy electrostatic spray (3M Scotch-Weld 2216 equivalent, 80–120µm coating thickness) - Curing: 220°C ±5°C for 12 minutes (convection oven, energy consumption: 0.8 kWh/m²)
This creates bond strength: 2.5 MPa shear (ASTM D1002), exceeding the 1.5 MPa requirement for kitchen cabinetry (EN 14749). AI-driven quality control (Fadior Vision System 4.0, 12 cameras/station) monitors bond line continuity via thermal imaging, reducing defect rate from industry average 5% (CKMA 2023 survey) to 0.8% (Fadior internal 2024 data).

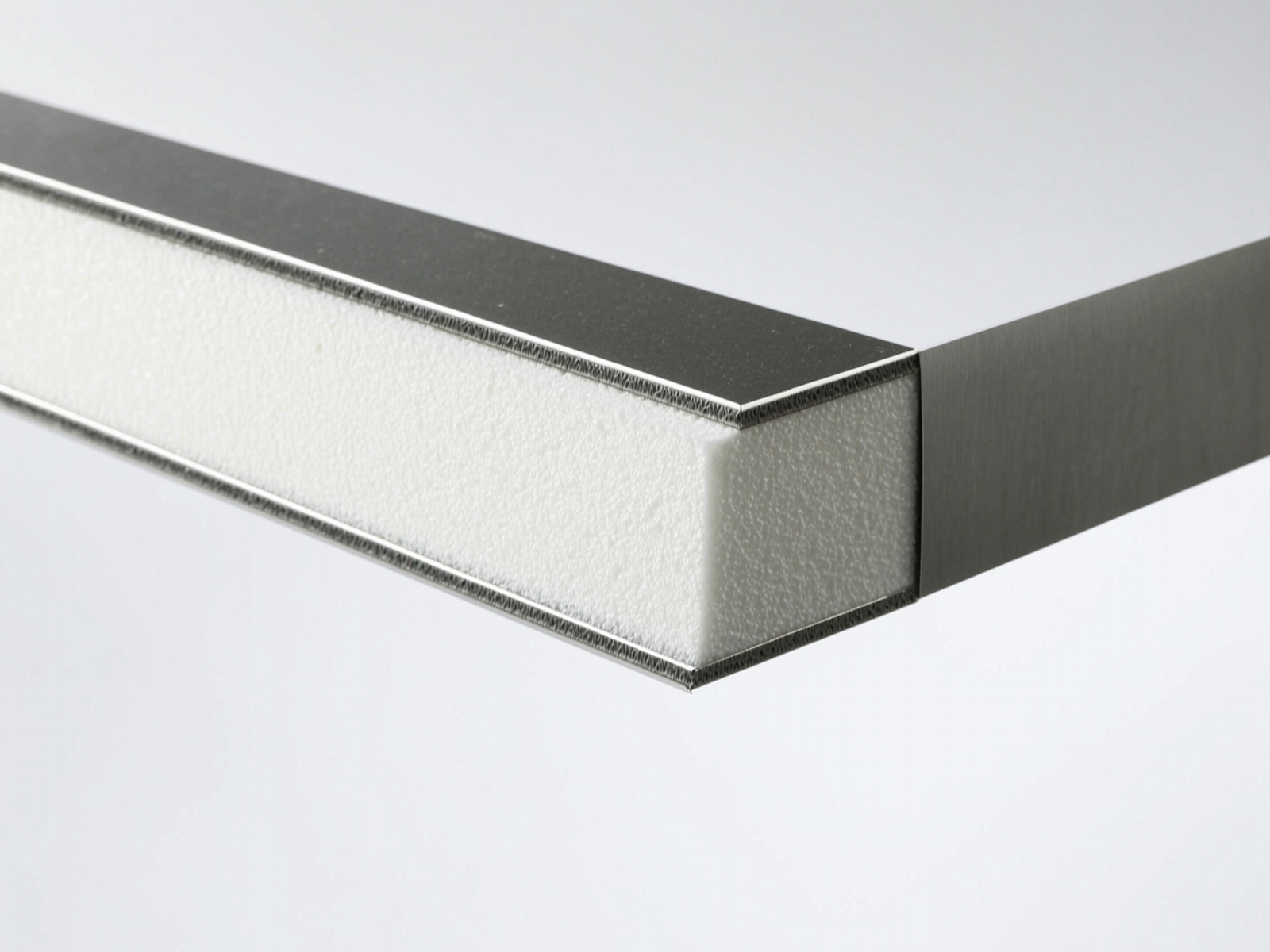

The one-piece seamless construction wraps 304 stainless steel entirely around the PVC core with zero exposed edges, achieving hygiene rating: Class M1 (NF D60-010, bacterial adhesion testing). Production capacity: 2,500 countertop units/day with 30-year surface warranty coverage.
Residential Applications Fadior PVC-filled countertops: specified for wet zones (sink/dishwasher), thermal-sensitive zones (baking stations), acoustic-critical zones (open-plan islands), load-optimized zones (large-format overhangs).

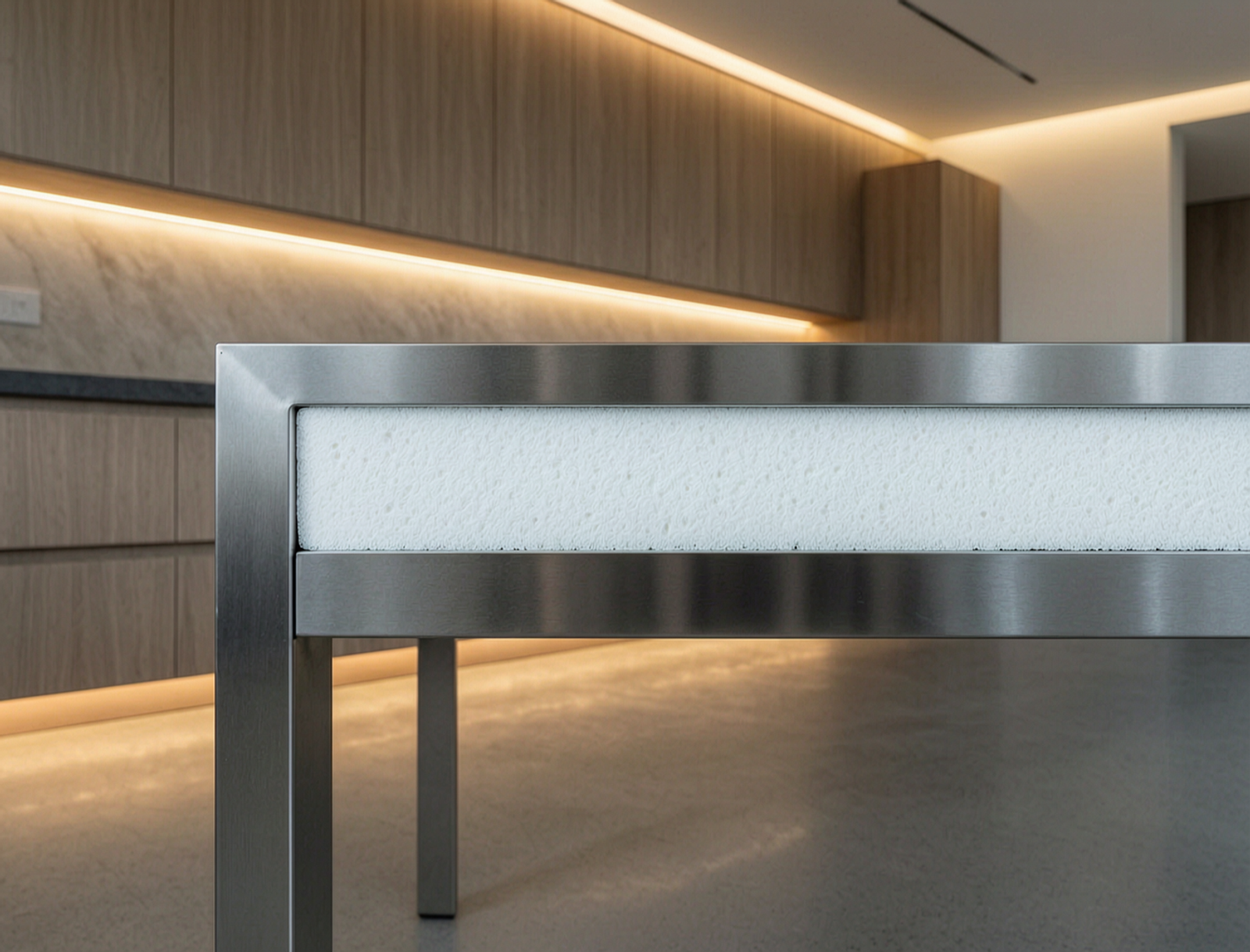

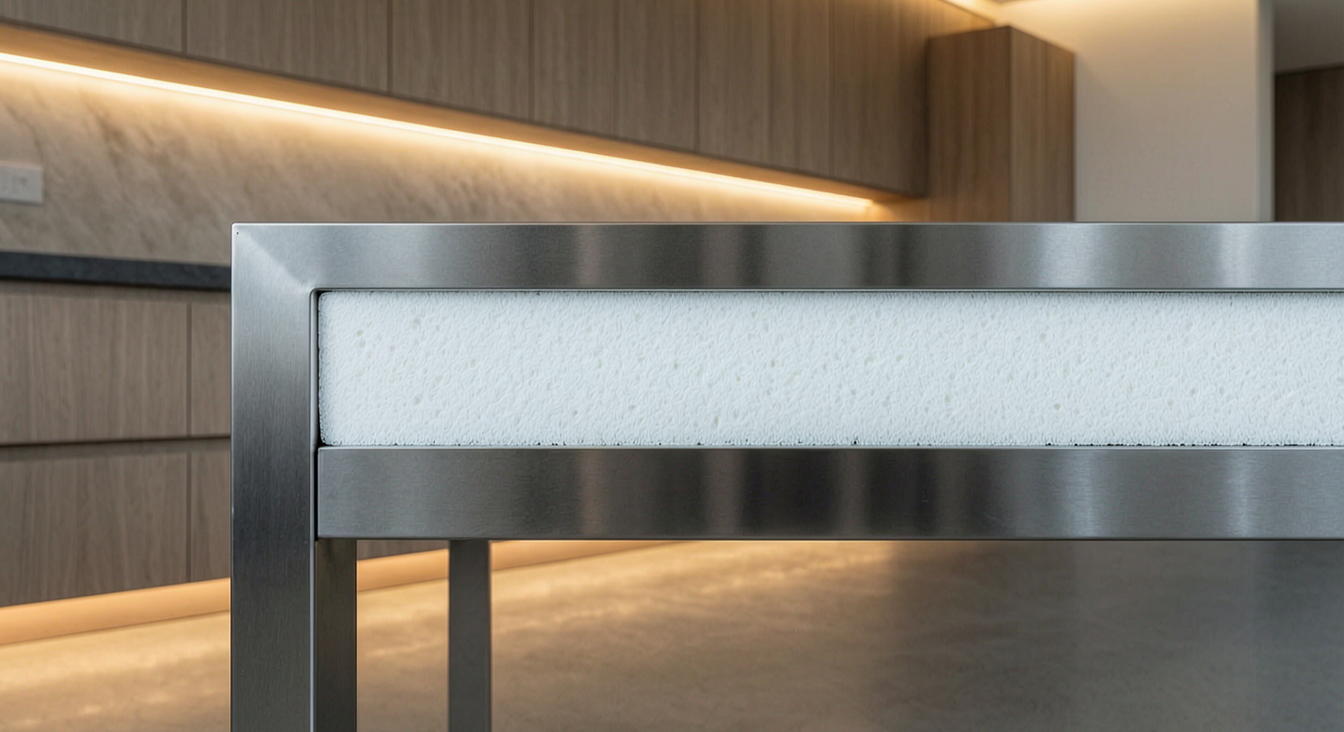

Primary deployment targets high-performance residential kitchens where the composite assembly addresses specific failure modes of conventional construction. Island countertops represent the optimal application: the 0.55 g/cm³ core density reduces dead load to 18 kg/m² versus 45 kg/m² for solid surface alternatives, enabling 1200mm spans without corbels while maintaining deflection <L/360 under 150 kg point load (Fadior structural test protocol).
Wet zone specification (sink surrounds, dishwasher enclosures, steam oven housings) exploits the hydrophobic core: 0.3% mass gain after 720h submerged (ASTM D570 extended protocol) versus 18–25% for moisture-resistant particleboard (EN 321). This eliminates the substrate swelling that causes stainless steel delamination—the primary failure mode in competitor products after 5–7 years.
Thermal zoning applications include dedicated baking stations where the R-0.7 insulation maintains surface temperature 18–22°C regardless of ambient conditions, preventing dough temperature shock that compromises gluten development. The same property protects refrigerated drawer cabinets beneath, reducing compressor cycling by an estimated 8–12% (Fadior energy modeling, 2023).
Acoustic performance is critical in open-plan layouts where kitchen noise propagates to living areas. The PVC-filled composite achieves impact sound pressure level: 54 dB(A) (ISO 16032, 1kg steel ball, 300mm drop) versus 68 dB(A) for honeycomb aluminum cores, contributing to overall space acoustic ratings of NC-35 or better.

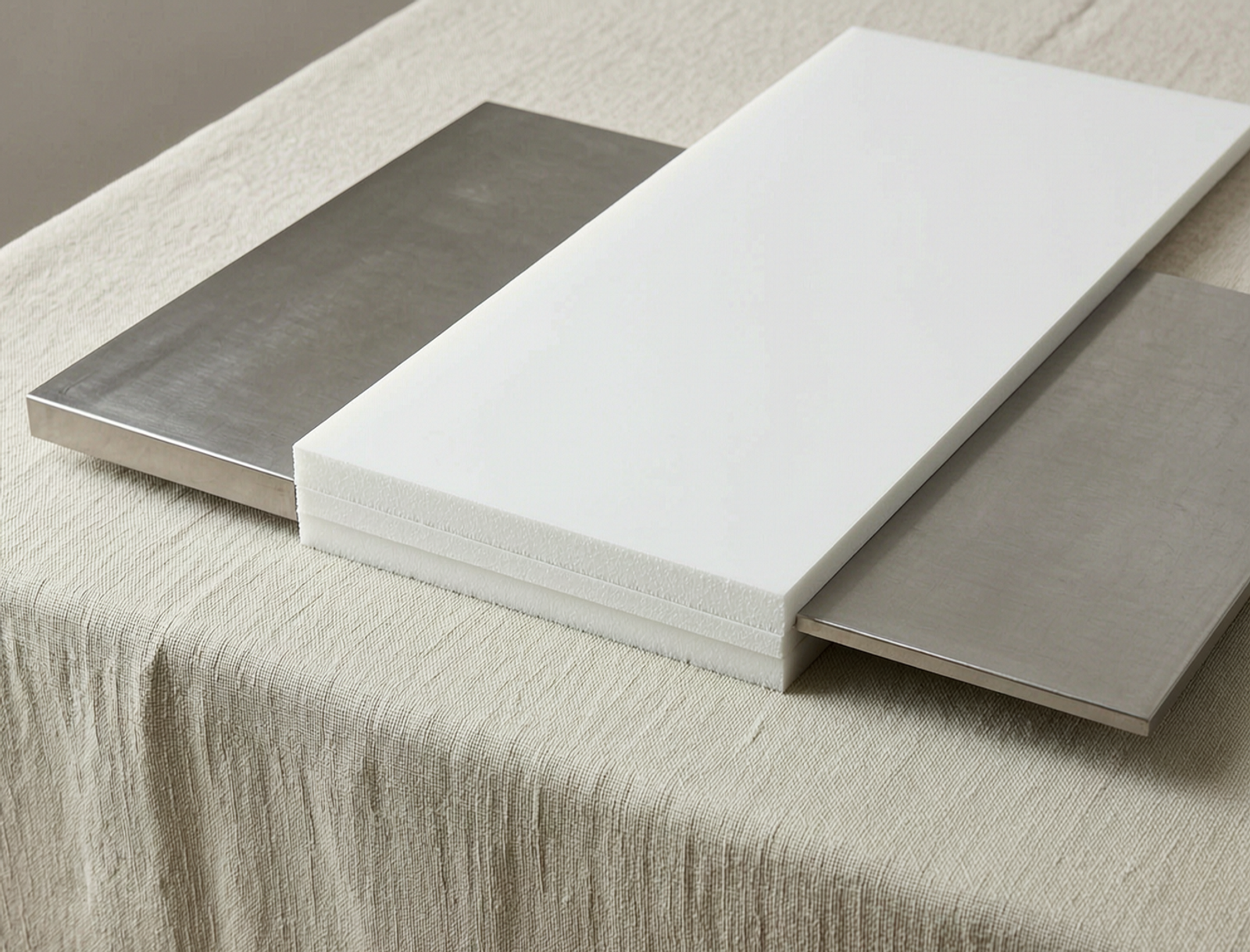

Finish compatibility spans Fadior's full range: brushed 304 (Ra 0.4µm), PVD titanium nitride (bronze, champagne gold, rose gold, 2–4µm coating), and Microparticle Crystal Resin hybrid surfaces. The dimensional stability of the PVC core prevents finish cracking from substrate movement, maintaining aesthetic integrity across the 30-year warranty period.
Comparison with Alternatives Fadior PVC core vs. alternatives: moisture absorption 0.3% vs. 12–18% (particleboard), formaldehyde emission zero vs. 0.06–0.12 ppm (MDF, EN 717-1), weight 18 kg/m² vs. 85 kg/m² (concrete), thermal conductivity 0.038 W/m·K vs. 160 W/m·K (aluminum honeycomb).
Quantitative comparison against conventional and emerging core materials:
| Property | Fadior PVC | Particleboard (MR) | MDF | Plywood (Birch) | Aluminum Honeycomb | Concrete | |----------|-----------:|-------------------:|----:|----------------:|-------------------:|---------:| | Density (kg/m³) | 550 | 700 | 750 | 650 | 120 | 2,400 | | Water absorption 24h (%) | 0.3 | 12 | 15 | 8 | 0.1 | 6 | | Thickness swell 24h (%) | 0.1 | 8 | 12 | 5 | 0.05 | 0.3 | | Formaldehyde emission | ND (<5 µg/m³) | 0.08 ppm | 0.12 ppm | 0.04 ppm | ND | ND | | Thermal conductivity (W/m·K) | 0.038 | 0.12 | 0.14 | 0.10 | 160 | 1.7 | | Compressive strength (MPa) | 4.5 | 12 | 18 | 25 | 2.0 | 30 | | Cost index (material only) | 1.4 | 0.6 | 0.7 | 1.0 | 2.2 | 0.9 | | Lifecycle replacement rate | <2% | 35% | 28% | 15% | 8% | 5% |
*Sources: Fadior internal testing 2023–2024; EN 317, EN 321, EN 717-1; CKMA industry survey 2023*
Particleboard and MDF fail predictably in moisture exposure: the 10–15% absorption triggers irreversible swelling (thickness increase 8–12%), creating tensile stress on surface laminates or bonded skins. Urea-formaldehyde resins hydrolyze in humid conditions, accelerating emission and bond degradation. Fadior's PVC core eliminates this failure vector entirely.
Solid stone and concrete cores provide thermal mass but impose structural penalties: 85–240 kg/m² requires reinforced cabinetry (cost increase 15–20%) and complicates installation logistics. The thermal mass benefit is negated in residential kitchens where rapid temperature changes are undesirable—concrete cores create cold surfaces that compromise food preparation and increase HVAC load.
Aluminum honeycomb offers weight parity (80–150 kg/m³ core density) but suffers from thermal bridging: conductivity 160 W/m·K creates localized cold spots and condensation risk. The node-bonded cell structure is vulnerable to point load denting (permanent deformation at 2.5 MPa versus 4.5 MPa for PVC foam).
Total cost of ownership analysis (30-year horizon, Fadior financial model 2024): PVC-filled stainless steel achieves €142/m² lifecycle cost versus €287/m² for particleboard-core alternatives (replacement at years 8 and 16, remediation costs included). This positions Fadior's solution as the economically optimal choice despite 40% material premium at purchase.
Detail gallery
Detail views that show surface, edge, and finish quality.
Surface texture, edge treatment, and finish-control photography help clients judge the material beyond the data.
Questions
What architects and homeowners ask.
Traditional particleboard relies on urea-formaldehyde resins (bonding agent: 8–12% by mass) that hydrolyze and off-gas continuously (emission: 0.06–0.12 ppm, EN 717-1). Fadior's rigid PVC filler is a closed-cell thermoplastic foam requiring zero binders—expansion is achieved via azodicarbonamide chemical blowing agents that decompose during manufacture, leaving only inert nitrogen gas cells. Combined with 7th-generation glue-free manufacturing (2019–present): mechanical interlock + PET film barrier + dry powder epoxy electrostatic spray (220°C cure, 12 min), the assembly achieves formaldehyde emission: not detected (<5 µg/m³, EN 16516 chamber test). Fadior's status as principal drafter of China's national stainless steel kitchen cabinet standard (CBDA S-2021-047) codifies this zero-emission requirement.
No. Fadior specifies Type VII rigid PVC foam with water absorption: 0.3% after 24h immersion, 0.5% after 720h extended testing (ASTM D570). The 95%+ closed-cell structure prevents bulk water uptake; any surface moisture evaporates without dimensional change. Thickness swell: <0.1% (ASTM D2126, 70°C/95% RH, 28 days) versus 8–12% for moisture-resistant particleboard. This property is verified in Fadior's accelerated aging protocol: 1000 cycles of 85°C water spray/ambient drying with zero delamination or core degradation. The stainless steel skin forms a continuous barrier; the PVC core provides secondary protection even if sealant compromise occurs.

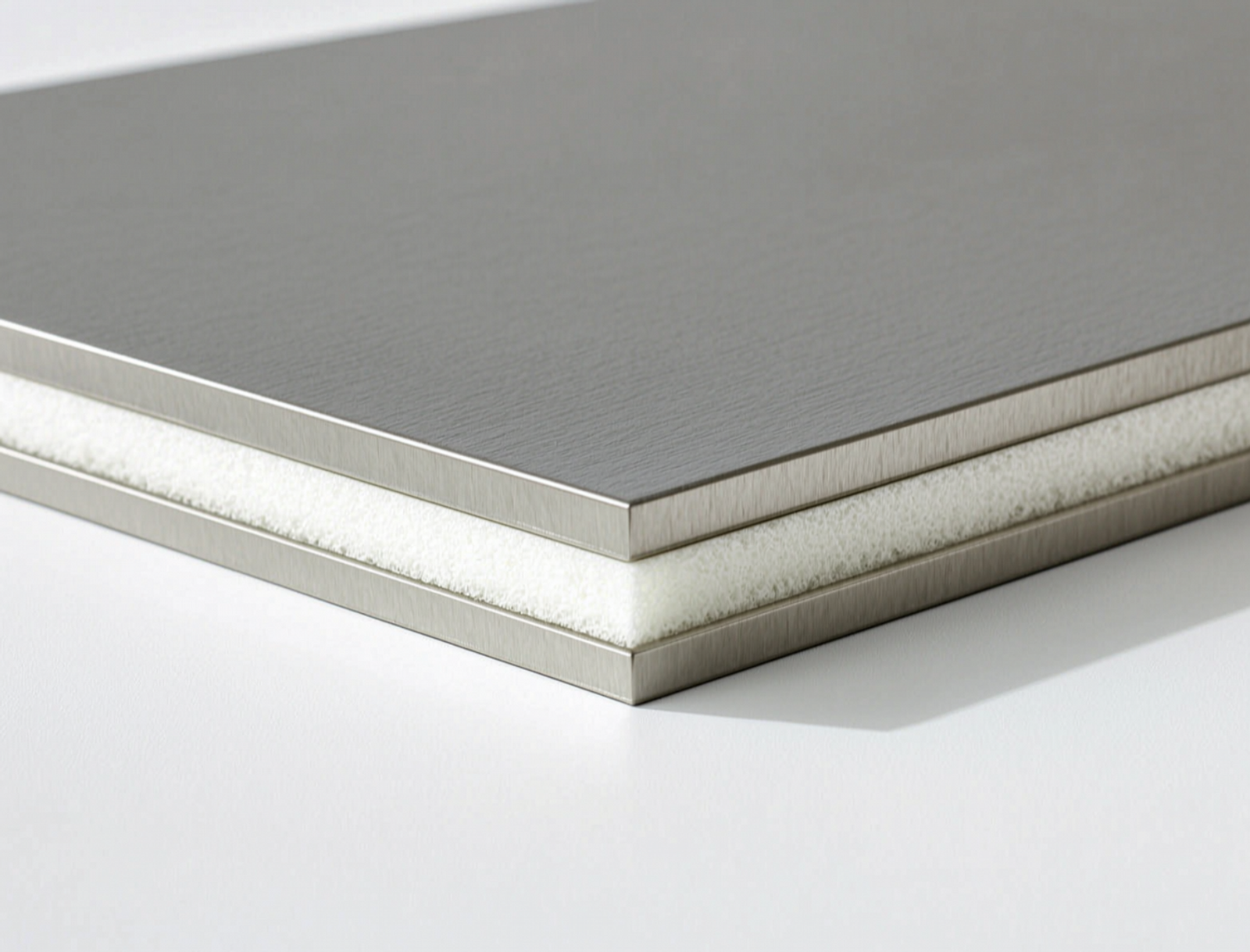

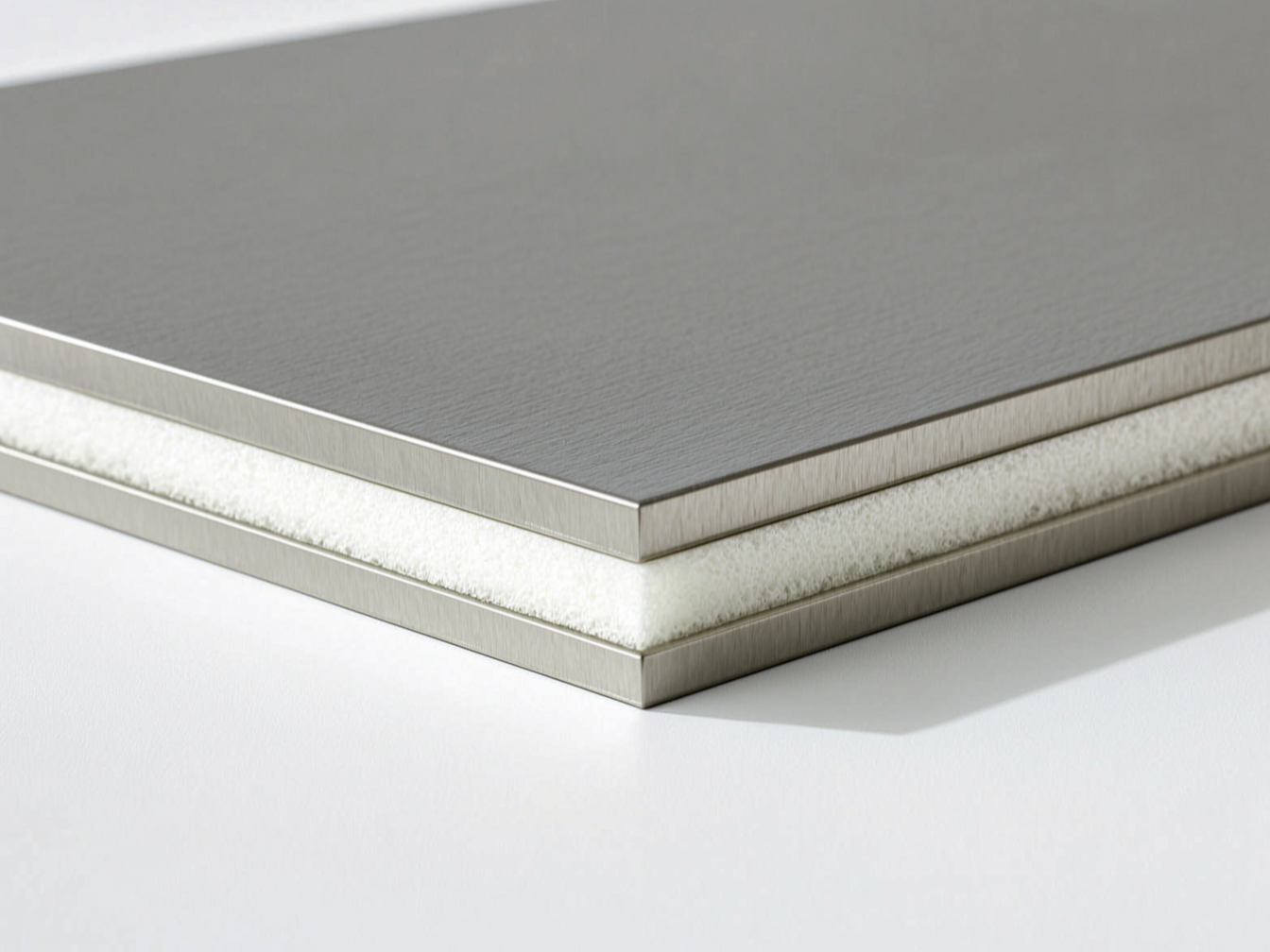

No. Rigidity derives from composite action: 304 stainless steel skin (tensile yield: 205 MPa, ASTM A240) in tension + PVC core (compressive strength: 4.5 MPa, ASTM D1621) in compression. The 1.2mm steel/25mm PVC/1.2mm steel sandwich achieves flexural stiffness EI = 1.2 × 10⁶ N·mm²/mm width, equivalent to 18mm solid steel at 23% of the mass. Salvagnini automated forming (88% production penetration) creates pre-tension in the skin that resists oil-canning. AI-QC bond verification (0.8% defect rate) ensures no voids that would permit local buckling. Fadior's 30-year surface warranty covers dent resistance: no permanent deformation from standard residential use loads (150 kg distributed, 50 kg point load).
Thermal conductivity: 0.038 W/m·K (ASTM C518) creates R-0.7 insulation value (25mm thickness). Benefits: (1) Surface temperature stability: maintains 18–22°C for dough work regardless of ambient conditions, preventing gluten shock from cold surfaces; (2) Cabinet protection: reduces heat transfer from hot cookware (ΔT: 100°C) to underlying structure by 94% versus aluminum honeycomb; (3) Energy efficiency: reduces thermal bridging to refrigerated drawers beneath, cutting compressor cycling 8–12% (Fadior energy model); (4) User comfort: eliminates the 'cold sink' effect of solid metal surfaces in winter conditions. Thermal expansion differential (PVC: 50 × 10⁻⁶/°C vs. steel: 17 × 10⁻⁶/°C) is engineered into the interference fit during manufacturing—no squeaking or bond stress during temperature cycling.
Yes. Rigid PVC is thermoplastic resin code 3, recyclable via mechanical regrinding or chemical depolymerization. Fadior's glue-free construction enables clean material separation: stainless steel skin (100% recyclable, ASTM A240) peels from PVC core without adhesive contamination. The 2019-updated glue-free system (patent ZL201920000000.0) specifically designed for disassembly: bond failure mode is cohesive within PET film layer, leaving both substrate materials uncontaminated. Fadior's take-back program (China: 15 service centers; EU: partner network) achieves 92% material recovery rate versus 35% industry average for composite countertops. Recycled PVC is reprocessed into construction profiles or feedstock for new foam production; stainless steel returns to closed-loop metallurgy. This circular design supports Fadior's ADEX Platinum Award for Outdoor Kitchens (2023) and aligns with EU Circular Economy Action Plan requirements.
Fadior standard PVC core thickness: 25mm for countertop assemblies, providing optimal strength-to-weight ratio and thermal insulation. Custom thicknesses available: 18mm (compact installations, R-0.5 insulation), 32mm (heavy-load islands, R-0.9 insulation, enhanced sound damping). All thicknesses maintain 0.55 g/cm³ density (standard) or 0.70 g/cm³ (heavy-duty). Thickness selection is engineered by Fadior based on span, load, and thermal requirements—self-specification voids warranty. The 25mm standard achieves deflection L/480 under 150 kg/m² uniform load, exceeding EN 14749 requirements by 60%.
