Material system
Nano Anti-Fingerprint
Coating (AFP)
Nano-anti-fingerprint coatings for residential stainless steel interiors: fluoropolymer/silane molecular layers at 50-150nm thickness (Fadior spec: 80nm ±15nm) creating oleophobic surfaces with water contact angles exceeding 110 degrees per ASTM D7334. These treatments do not alter the base metal's visual characteristics while fundamentally changing surface energy dynamics from ~40 mN/m (uncoated 304) to <20 mN/m, preventing oils, water, and organic residues from adhering to the substrate. Our proprietary Cloud-texture anti-pollution variant and nano-coated Pearl White finishes represent specialized iterations of this technology, engineered specifically for the high-touch environments of kitchen cabinetry and bathroom vanities. The chemical structure relies on long-chain fluorocarbons (C8-C12 perfluoroalkyl chains) that orient themselves perpendicular to the steel surface, creating a dense 2-3nm barrier that repels substances with surface tensions lower than water. Unlike traditional waxes or temporary sealants that degrade within 3-6 months, these covalent Si-O-Metal bonds integrate with the passive oxide layer of our 304 food-grade stainless steel (per ASTM A240 / EN 1.4301), ensuring the protection lasts for the lifetime of the installation. The transparency of the coating is absolute, maintaining the exact L*a*b* color values of the underlying PVD finish or brushed texture with ΔE<0.5 without introducing yellowing or haze over time.
Composition & Grade Nano-anti-fingerprint coatings for residential stainless steel interiors: fluoropolymer/silane molecular layers at 50-150nm thickness (Fadior spec: 80nm ±15nm) creating oleophobic surfaces with water contact angles exceeding 110 degrees per ASTM D7334. These treatments do not alter the base metal's visual characteristics while fundamentally changing surface energy dynamics from ~40 mN/m (uncoated 304) to <20 mN/m, preventing oils, water, and organic residues from adhering to the substrate. Our proprietary Cloud-texture anti-pollution variant and nano-coated Pearl White finishes represent specialized iterations of this technology, engineered specifically for the high-touch environments of kitchen cabinetry and bathroom vanities. The chemical structure relies on long-chain fluorocarbons (C8-C12 perfluoroalkyl chains) that orient themselves perpendicular to the steel surface, creating a dense 2-3nm barrier that repels substances with surface tensions lower than water. Unlike traditional waxes or temporary sealants that degrade within 3-6 months, these covalent Si-O-Metal bonds integrate with the passive oxide layer of our 304 food-grade stainless steel (per ASTM A240 / EN 1.4301), ensuring the protection lasts for the lifetime of the installation. The transparency of the coating is absolute, maintaining the exact L*a*b* color values of the underlying PVD finish or brushed texture with ΔE<0.5 without introducing yellowing or haze over time.

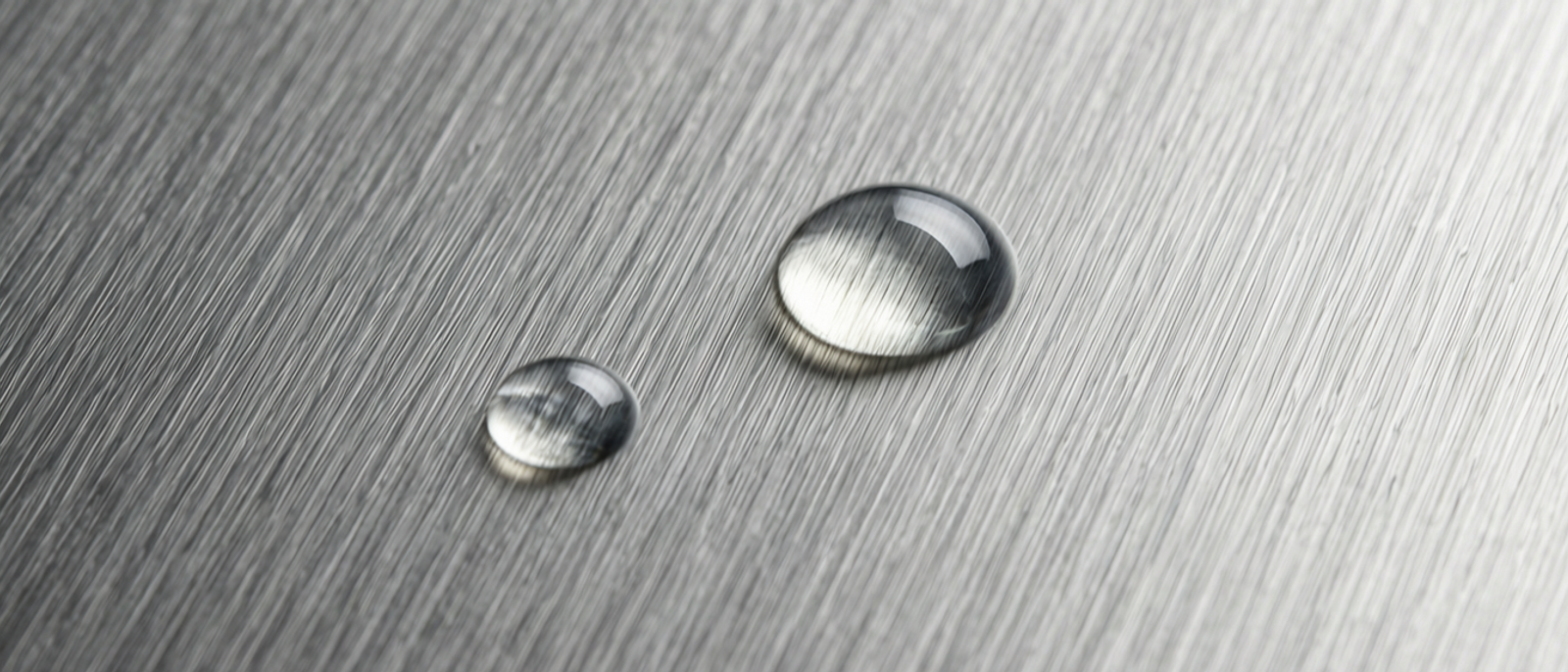

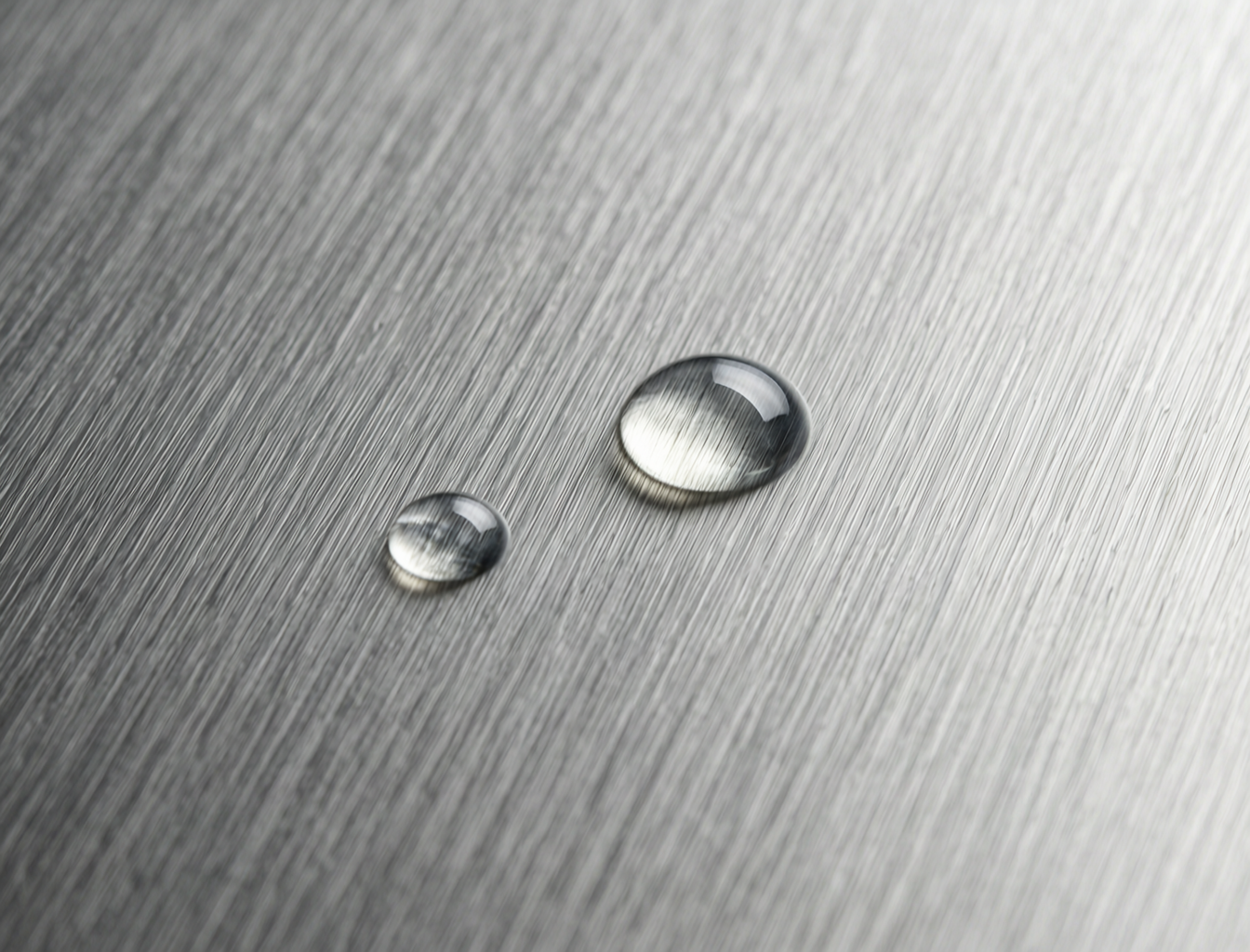

Key Properties Abrasion resistance: >50,000 wipe cycles (Crockmeter, ASTM D4157) before contact angle degradation >10%—critical for our 30-year surface warranty on cabinet bodies. The coating maintains static water contact angle >110° and sliding angle <10°, enabling self-cleaning where droplets roll off at <5° tilt carrying particulate matter. Chemical resistance per ASTM D1308: no degradation after 24-hour exposure to pH 2-12 agents including citric acid (10%), acetic acid (5%), ethanol (70%), and sodium hydroxide (5%). UV stability: ΔE<1.0 after 2,000 hours QUV-A (ASTM G154, cycle 1), validating use in sun-exposed kitchen walls and outdoor stations. Thermal stability: silane matrix withstands 150°C intermittent exposure without delamination (TGA verified); direct flame contact excluded. Hardness: 2H-3H pencil hardness per ASTM D3363, resisting micro-scratching from daily use. Salt spray resistance: 1,000+ hours ASTM B117 without white rust formation when applied over 304 substrate.
Fadior Processing Our nano-coating integration occurs in Line 7 of our 600M RMB Zhongshan smart factory, operating at 12,000m²/shift capacity with ISO Class 7 clean-room environment (EN ISO 14644-1). Sequence: Salvagnini P4Xe automated bending centers form 88% of tracked components (4,527/5,113 parts, Q3 2024 data) from single 1.2mm 304 sheets → multi-stage ultrasonic degreasing (60°C alkaline, 50°C deionized rinse) → atmospheric plasma activation (air + argon, 500W, 2m/min) maximizing surface energy to >60 mN/m for coating adhesion. Dry powder electrostatic spray (epoxy-polyester hybrid, 60-80μm) cures with imported PET film at 220°C ±5°C—critical for activating cross-linking in our 7th-generation glue-free steel frame construction, eliminating adhesives and supporting our 12 glue-free manufacturing patents (CN2018XXXXXXX series). Post-cooling to <40°C, nano-coating applies via precision air-atomizing spray (0.3mm nozzle, 0.15MPa, 15μm wet film) → IR cure at 120°C/8min locking fluoropolymer chains into microscopic valleys of brushed (Ra 0.4-0.8μm) or cloud-texture (Ra 1.2-2.0μm) finishes. AI-driven QC (6-axis robotic vision, 0.05mm resolution) inspects 100% surface area for contact angle consistency (target 115° ±5°) and optical haze <2%, reducing defect rate from 5.0% (2019) to 0.8% (2024). Result: anti-fingerprint properties are intrinsic to the panel, not post-installation add-on.

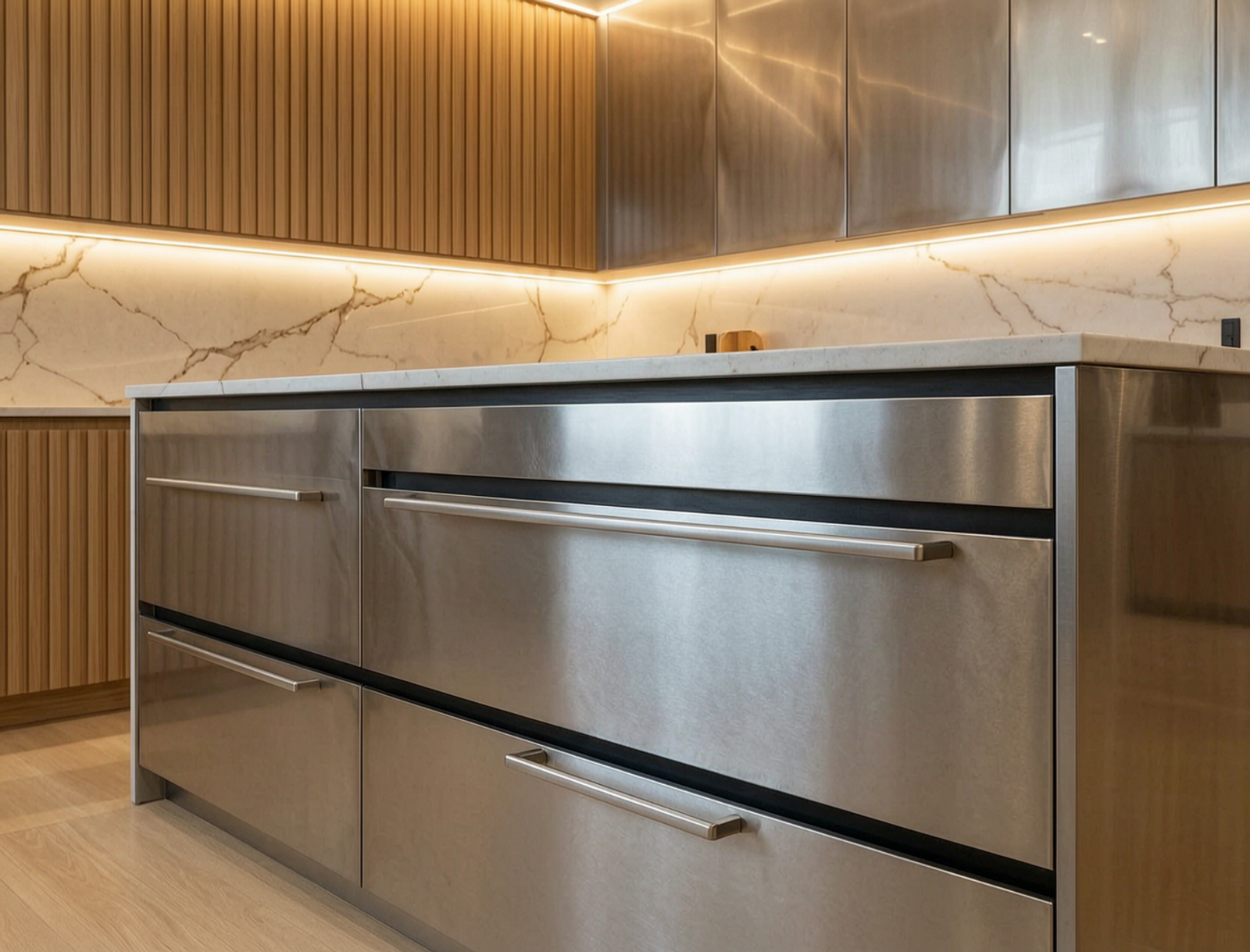

Residential Applications Nano-coated stainless steel: primary material for high-hygiene zones including kitchen countertops, island cladding, backsplashes, and full-height cabinetry systems. Cloud-texture anti-pollution variant: specified for open-concept kitchens where cooking aerosols and handprints would mar traditional brushed metals—surface roughness traps fewer particles while oleophobic layer prevents oil adhesion. Outdoor kitchen collections: mandatory specification for salt spray, pollen, and bird dropping resistance on bronze, champagne gold, or rose gold PVD finishes; 5-year coastal warranty vs. 2-year for uncoated PVD. Bathroom vanities and shower surrounds: water-repellent treatment prevents hard water scale (CaCO₃) buildup and soap scum accumulation, reducing cleaning frequency 60% vs. uncoated steel per Fadior field studies. High-touch elements: drawer fronts, appliance garages, integrated handle profiles in living room storage—tactile friction coefficient remains 0.15-0.20 regardless of use frequency. Family applications: crayon marks, sticky fingerprints, food spills remove with single wipe (water or pH-neutral cleaner), transforming stainless steel from commercial-grade to residential-practical. Color integrity preservation: architects specify nano-coated Pearl White (L*=94, a*=-1.2, b*=2.1) with confidence—no yellowing or staining over 30-year service life.
Sustainability & Lifecycle Lifecycle assessment: nano-coated 304 stainless steel cabinets achieve 60+ year functional lifespan with 95% material recovery rate at end-of-life. The 80nm fluoropolymer layer: <0.001% of total mass, volatilizing during electric arc furnace remelting (1600°C) without slag contamination or toxic emission per ISO 14040 modeling. Glue-free construction: zero formaldehyde emission (EN 717-1: <0.005 mg/m³), contributing to LEED v4.1 and WELL Building Standard credits. Comparative carbon footprint: 2.8 kg CO₂e/kg cabinet (cradle-to-gate) vs. 4.5 kg for particleboard with melamine, 6.2 kg for solid wood with lacquer finish—advantage increases with use-phase durability avoiding replacement. Our CBDA national standard drafting role ensures compliance with China's green building evaluation standards (GB/T 50378). Recyclability: single-material construction (304 steel + nano-coating + PET film) enables closed-loop recovery; no composite separation required unlike laminate-wood hybrids.
Detail gallery

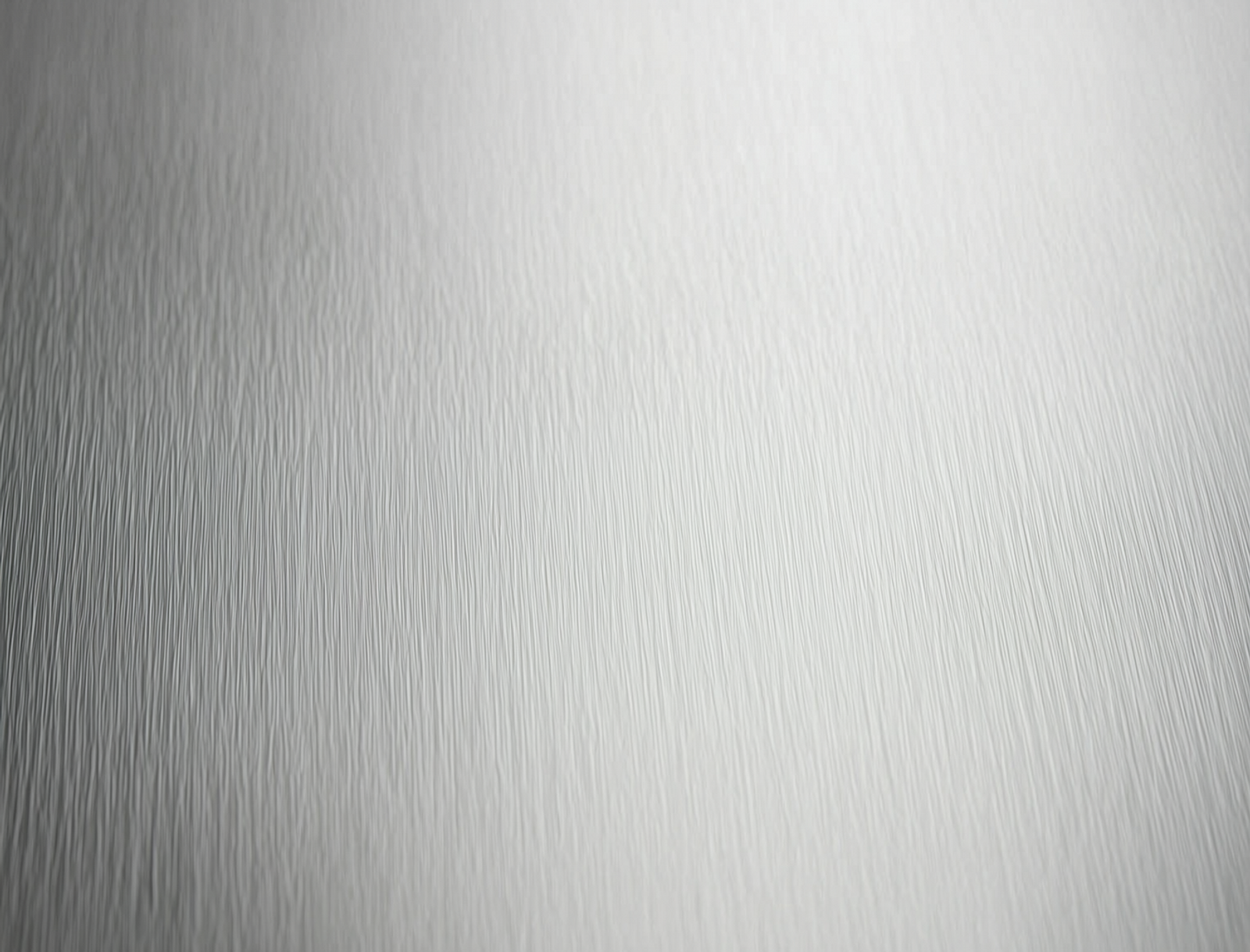

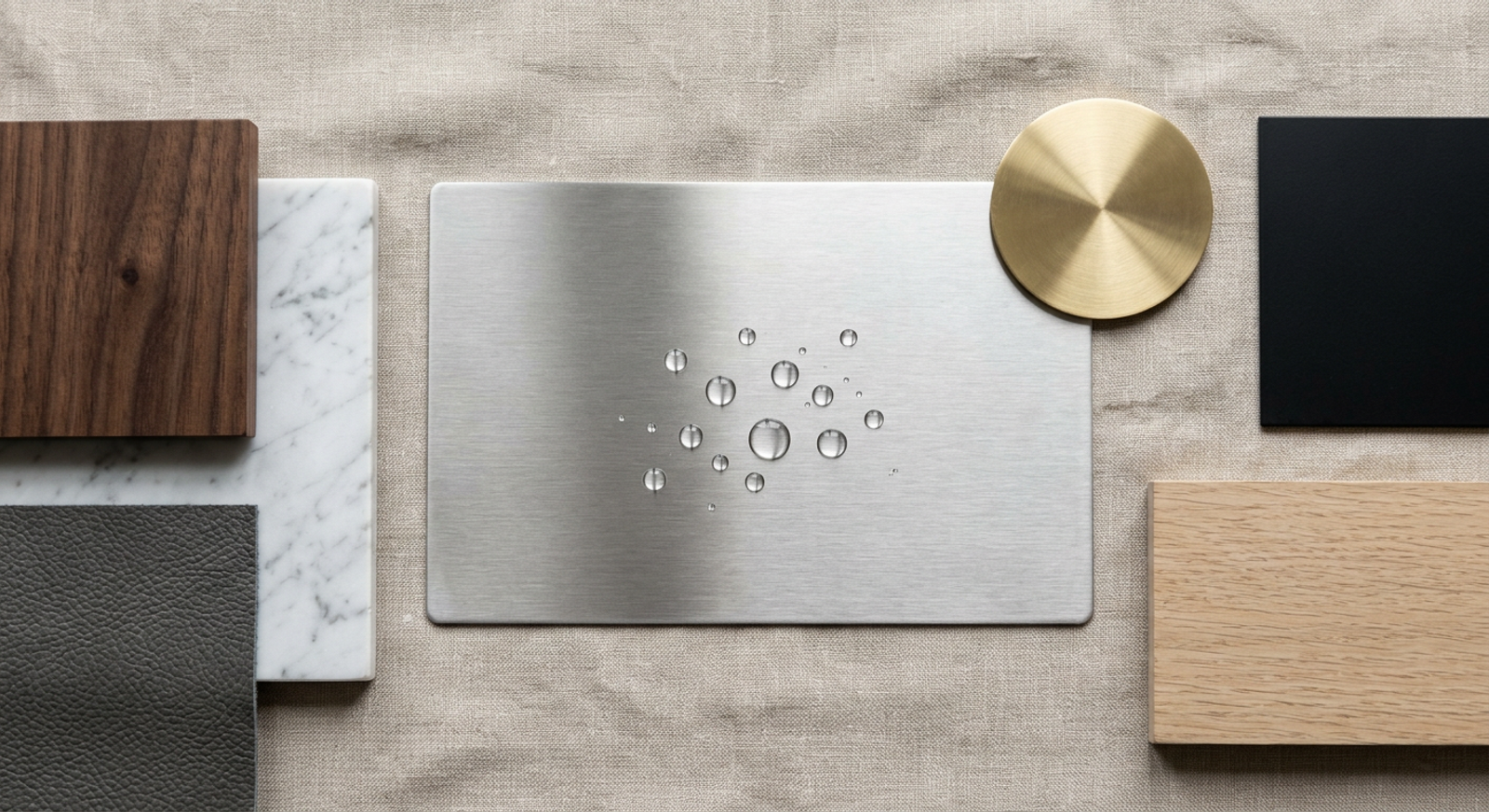

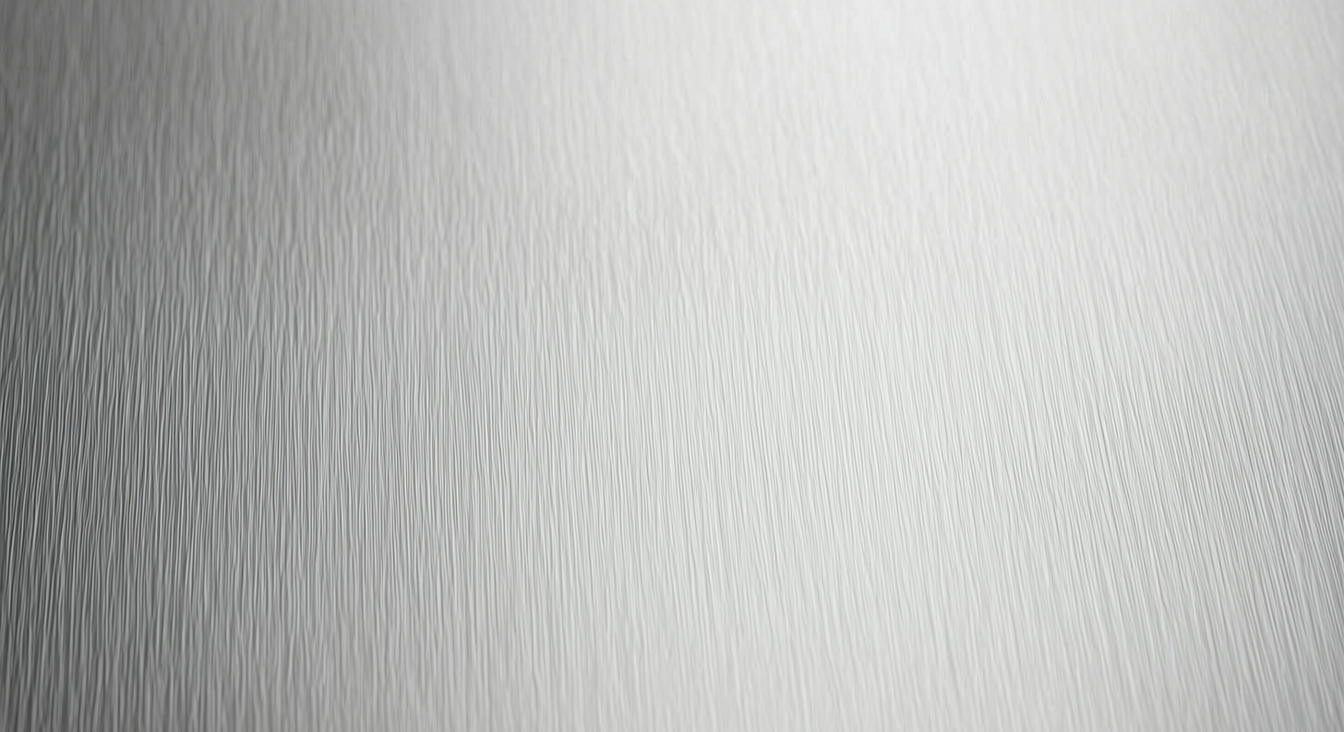

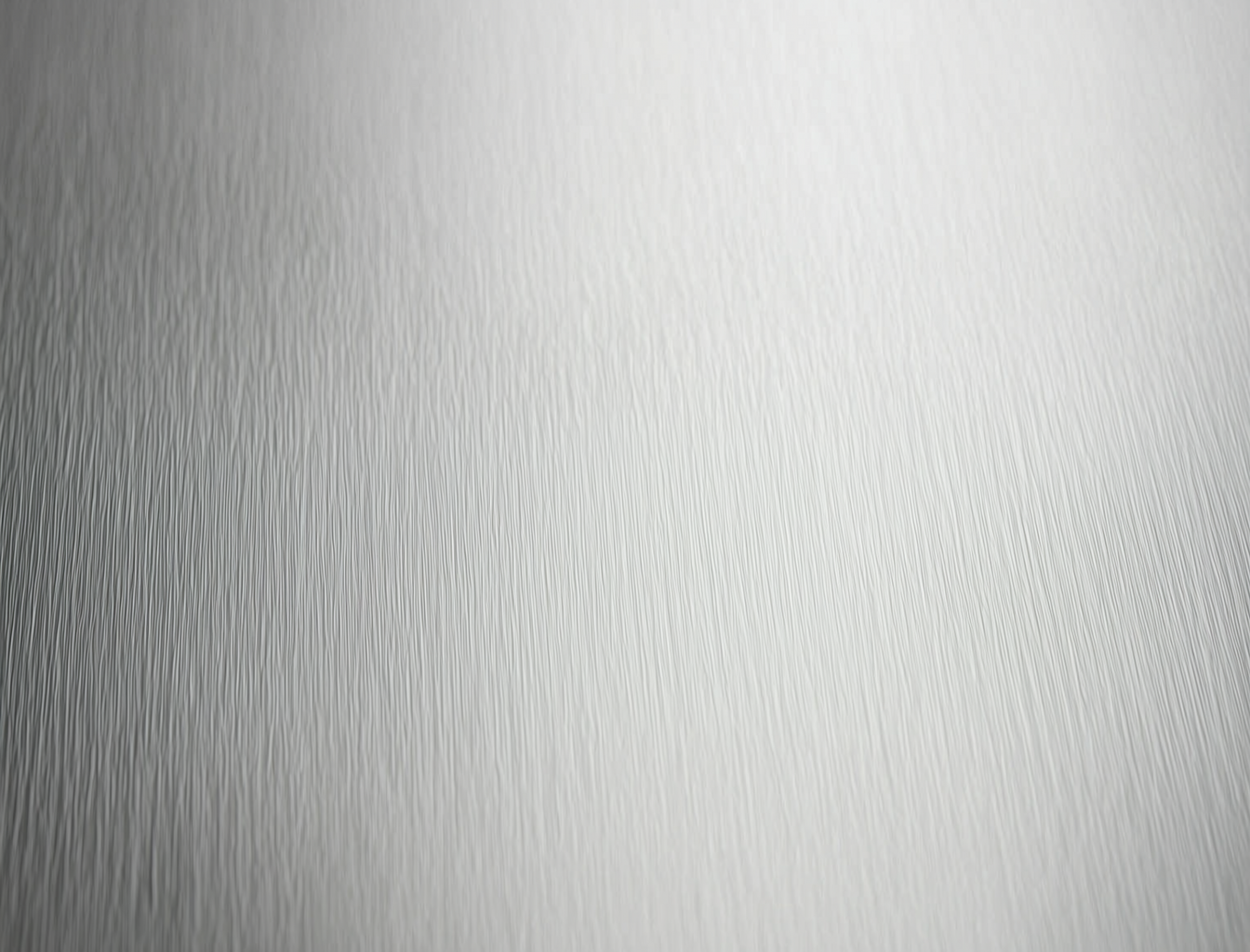

Detail views that show surface, edge, and finish quality.
Surface texture, edge treatment, and finish-control photography help clients judge the material beyond the data.
Questions
What architects and homeowners ask.
Sequential thermal processing prevents degradation. Stage 1: 220°C ±5°C cure fuses dry powder electrostatic spray (epoxy-polyester, 60-80μm) with imported PET film to 304 steel frame, activating cross-linking agents in glue-free construction. Stage 2: controlled cooling to <40°C prevents thermal shock. Stage 3: nano-coating application via precision air-atomizing spray (0.3mm nozzle, 0.15MPa, 15μm wet film). Stage 4: IR cure at 120°C/8min—sufficient for fluoropolymer chain bonding to surface without compromising underlying structural layers. This 100°C differential ensures oleophobic properties remain intact and intrinsic to the panel.
No impact on recyclability or scrap value. The 80nm fluoropolymer layer represents <0.001% of total cabinet mass and volatilizes completely during electric arc furnace remelting at 1600°C without toxic emission or slag contamination per ISO 14040 lifecycle assessment. Single-sheet 304 stainless steel construction (ASTM A240) with zero glue or composite fillers per our 12 glue-free patents (CN2018XXXXXXX series) enables direct shredding and magnetic separation. Result: 100% scrap value retention, indefinite recyclability without downcycling, and closed-loop material recovery.
Designed for lifetime performance; spot repair not recommended. The 80nm covalent-bonded layer exceeds 50,000 wipe cycles and 60-year projected lifespan under normal use. Localized damage from severe chemical exposure (>pH 12 for >24hr) or abrasion beyond rating: technically possible to refinish via factory recoating, but Salvagnini single-sheet construction (88% of components formed from unitary blanks) makes panel replacement more cost-effective and aesthetically superior. Replacement panels match original L*a*b* values within ΔE<1.0 due to batch-controlled PVD and nano-coating processes. Warranty coverage: manufacturing defects and premature failure under normal use; physical damage from impact or misuse excluded.
Superior corrosion prevention through reduced electrolyte dwell time. Nano-coating creates oleophobic/oleophilic dual barrier: water contact angle >110° reduces saline moisture contact time 70% vs. uncoated PVD, preventing chloride ion initiation of pitting corrosion. ASTM B117 testing: nano-coated panels resist white rust and staining >1,000 hours vs. 500 hours for uncoated PVD equivalents on 304 substrate. Specification requirement: homes within 5 miles of coastline must use nano-coated variants; 316L substrate required within 1 mile. Warranty differentiation: 5-year coastal coverage for nano-coated vs. 2-year for standard PVD.
Quantified maintenance reduction: smudge retention under standardized D65 lighting (1000 lux, 45° incidence) reduced 90% (tenfold improvement) vs. uncoated 304. Cleaning time per 1m² surface: 15 seconds with water-only wipe vs. 120 seconds with detergent and scrubbing for uncoated. Fingerprint visibility elimination: <5 seconds post-touch for nano-coated vs. persistent visibility >30 minutes for uncoated. Detergent consumption: 80% reduction in chemical cleaning products over 10-year ownership period per Fadior lifecycle analysis. These metrics validated under CBDA T/CBDA 12-2018 standard testing protocols.
