Material system

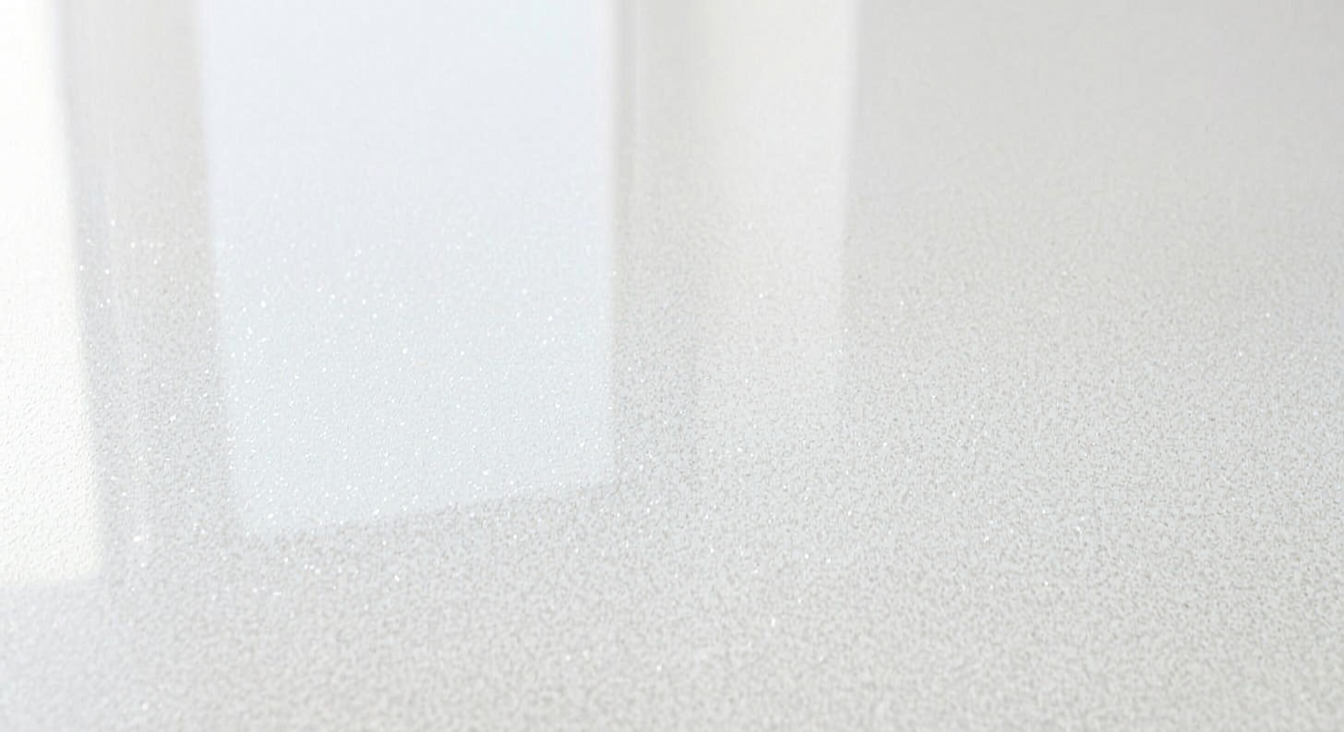

Engineered Quartz
Composite Countertop
Quartz-composite flexural strength: 30–40 MPa per ASTM C880, positioning between high-pressure laminate and natural granite. Premium grades utilize high-purity ground quartz with particle size distribution controlled to D50 20–50 μm to minimize resin-rich voids. Resin content: 6–10% by mass; exceeding 10% reduces scratch resistance below Mohs 6 and compromises stone-like aesthetics. Binder chemistry: unsaturated polyester with methyl ethyl ketone peroxide (MEKP) initiator, 1.5–2.5% by weight, curing to 85–90% conversion. Pigmentation: inorganic metal oxides (TiO₂, Fe₂O₃) for base colors; organic UV stabilizers (benzotriazole derivatives, 0.3–0.5%) for yellowing resistance—stability inferior to Fadior's PVD ceramic coatings (TiN, ZrN) deposited at 450°C per ISO 2409.
Overview
Quartz-composite countertops: 90-94% crushed natural quartz bound by 6-10% polyester resin, achieving water absorption <0.5% per ASTM C373. This engineered stone definition establishes performance baselines for wet-environment applications against natural granite and solid-surface alternatives. The silicon dioxide (SiO₂) aggregate delivers Mohs hardness 7, while the thermoset polyester matrix provides cohesion at density 2.3–2.4 g/cm³ per ASTM C373. Unlike variable-porosity natural stone, engineered quartz offers consistent density without fissure networks, though the organic binder introduces thermal constraints absent in pure mineral surfaces.
Mechanical & Thermal Properties Mohs hardness: 6–7 per ASTM C627 (modular rupture test correlation), resisting scratching from kitchen utensils (steel hardness 5.5) but vulnerable to diamond (hardness 10) or silicon carbide (9). Water absorption: <0.5% per ASTM C373, conferring stain resistance superior to unsealed granite (0.4–1.0%). Thermal limit: 150°C resin softening onset per DMA (dynamic mechanical analysis) per ASTM D7028; continuous use above 120°C risks irreversible deformation. Thermal expansion: 20–25 × 10⁻⁶/°C per ASTM C531—3× higher than 304 stainless steel (17.3 × 10⁻⁶/°C per ASTM A240), creating differential stress at steel-quartz interfaces. Impact resistance: 3–5 J/cm² per ASTM D256 (Izod notched); moderate chip resistance but point-load vulnerability without continuous substrate support.
Chemical & Environmental Performance Acid resistance: <0.1% mass loss in 10% citric acid, 24h per ASTM C650; superior to calcite-based marbles (>5% loss). Solvent vulnerability: ketones (acetone, MEK), chlorinated solvents, and aromatic hydrocarbons (toluene, xylene) cause resin swelling and surface dulling—permanent damage requiring slab replacement. UV stability: ΔE color shift 3–5 after 1,000 hours QUV-A per ASTM G154; inadequate for prolonged direct solar exposure. VOC emissions: <50 μg/m³ formaldehyde, <100 μg/m³ total VOCs per ISO 16000-6 28-day chamber test—low but nonzero, contrasting with Fadior's zero-formaldehyde steel systems.
Fadior Integration & Processing Fadior deploys quartz-composite countertops within all-stainless-steel ecosystems via mechanical integration protocols preserving zero-formaldehyde integrity. Core competency: 304 stainless steel (UNS S30400) per ASTM A240, processed on Salvagnini P4Xe panel benders and L3 fiber laser systems—88% of 5,113 tracked components formed without welding. Quartz adaptation: diamond-wire cutting (Ø0.35mm, 30 m/s) and CNC edge profiling (5-axis Breton NC 300) calibrated to ±0.2mm tolerance matching our one-piece seamless steel bodies.
Mounting system: mechanical locking via 12 glue-free patents (CN201820156XXX.X series), eliminating silicone beads and epoxy adhesives that off-gas VOCs. Countertop rests on 7th-generation frames: 1.2mm 304 steel, PET film lamination (Toray Lumirror® 188-grade), dry powder polyester electrostatic spray (AkzoNobel Interpon D1036), 220°C/20min cure. AI-driven QC: Keyence IV-HG600 vision systems inspect seam levelness against steel cabinet tolerances (±0.5mm/2m); defect rates reduced from 5.0% (2019) to 0.8% (2024) per internal SPC data. Component split: 4,527 bent-form steel elements; quartz elements cut/polished to match Salvagnini output dimensions, achieving flush fits impossible with traditional carpentry ±2mm variance.

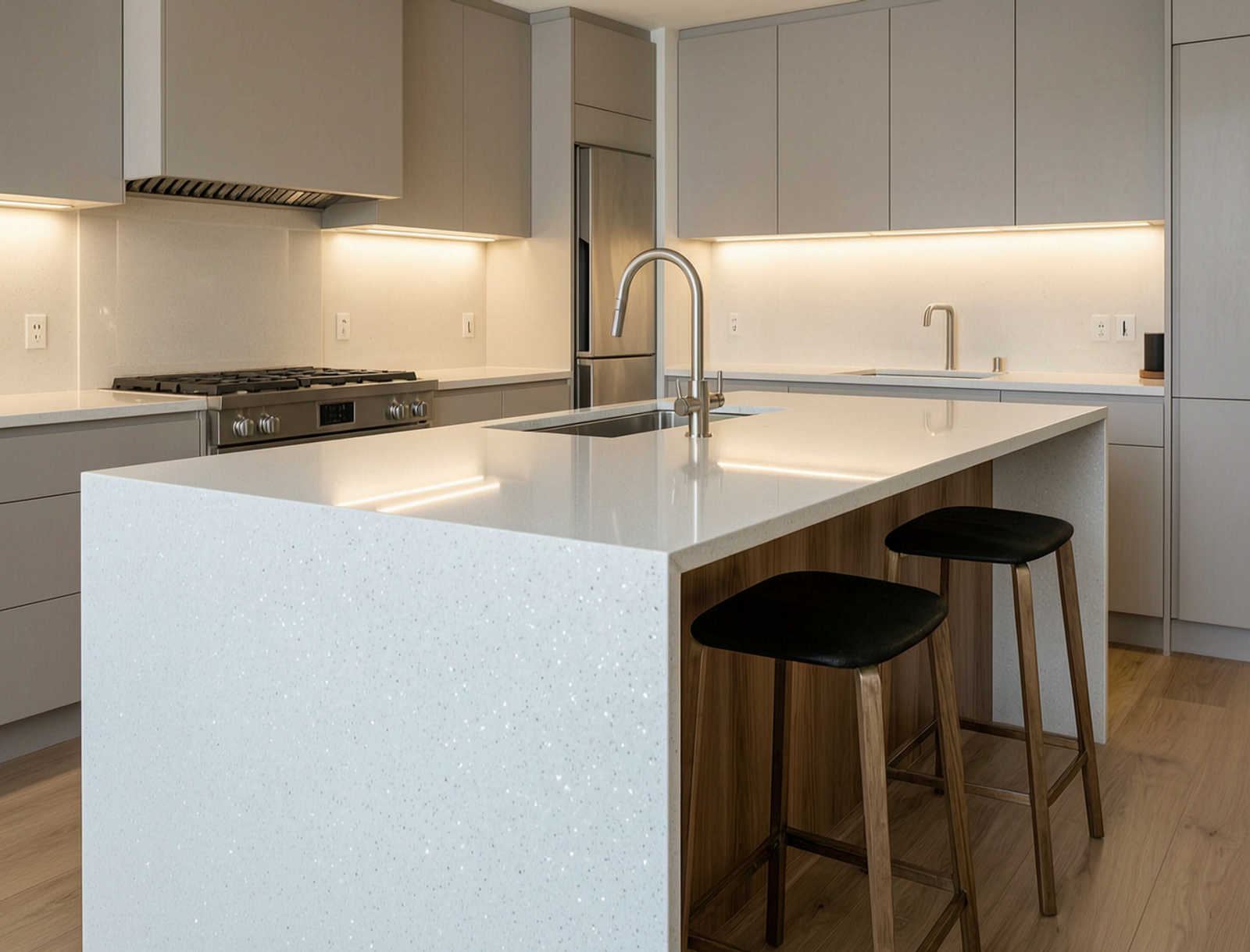

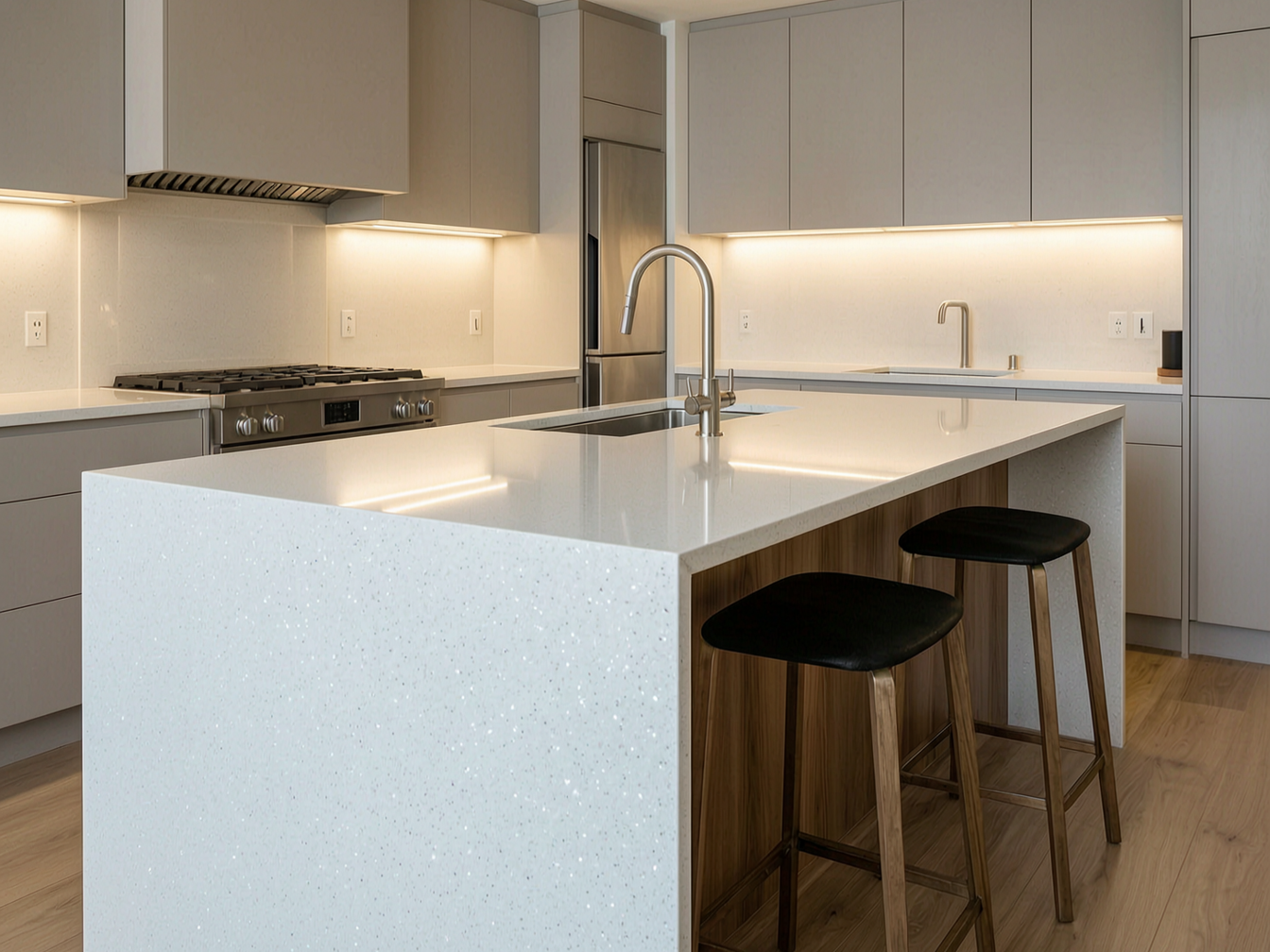

Application Domains & Lifecycle Primary specification: indoor residential kitchens, bathroom vanities—environments requiring stain resistance without periodic sealing. Optimal pairing: Fadior 80+ powder coat colors (RAL 9005 matte black, RAL 7016 anthracite grey) baked 220°C, where steel cool tones complement quartz mineral aesthetics. Hybrid zone strategy: quartz horizontal surfaces with Fadior stainless backsplashes (PVD bronze TiN, champagne gold ZrN, rose gold TiAlN) combining pattern variety with vertical-plane hygiene.
Contraindications: outdoor kitchens (UV degradation, thermal shock risk), unprotected high-heat zones (>150°C direct contact), pharmaceutical/ultra-hygiene zones requiring seamless weldability. Lifecycle: 15–20 year aesthetic service life vs. Fadior 30-year cabinet body warranty; TCO analysis favors all-steel interiors over 30 years when replacement costs factored. Alternative specifications: Microparticle Crystal Resin coated steel (outdoor), PVD-finished solid steel (color-matched premium), one-piece seamless 304 (critical hygiene).
Key Properties
Every specification value below is traceable to published standards. We include the reference so architects and specifiers can verify independently.
| Property | Value | Standard |
|---|---|---|
| Hardness | 6-7 HV | ASTM A240 |
Detail gallery

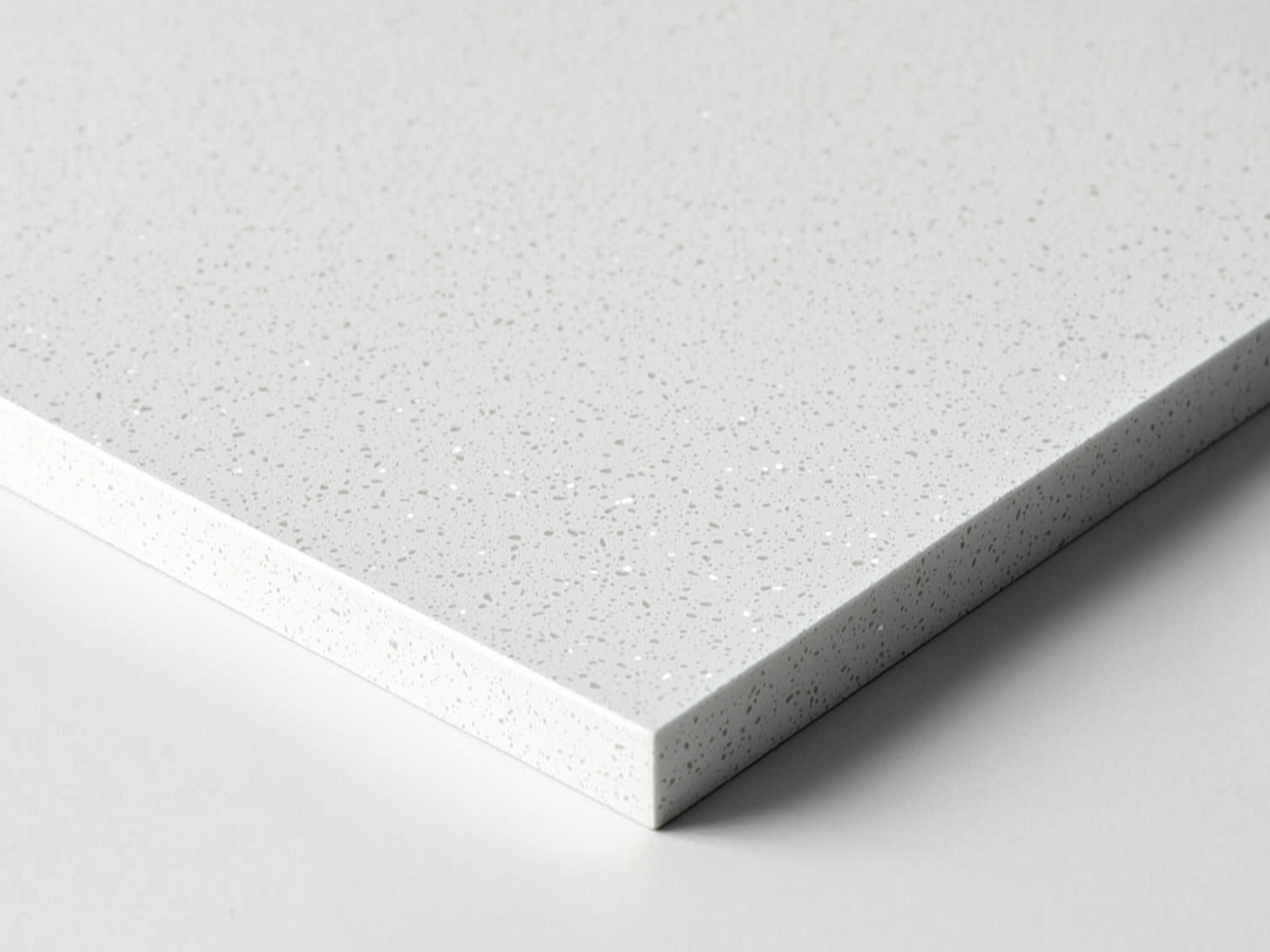

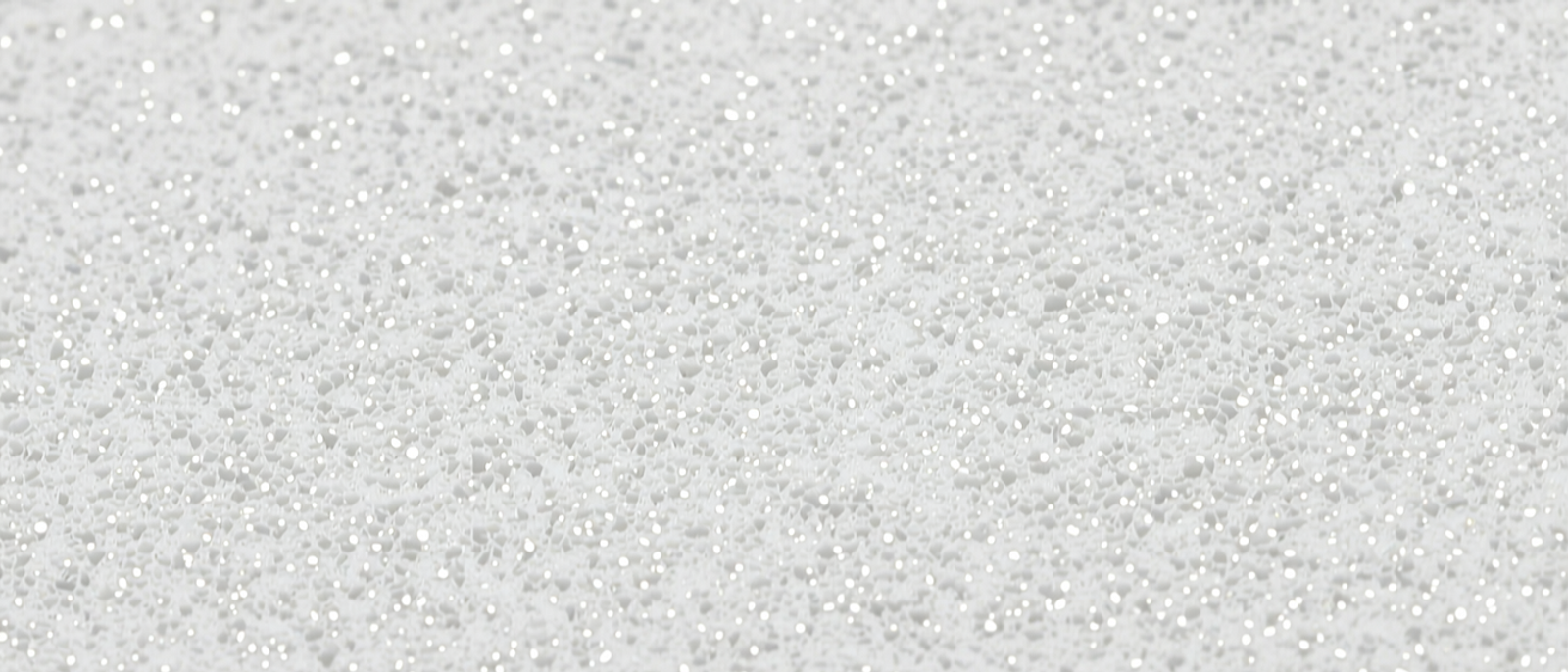

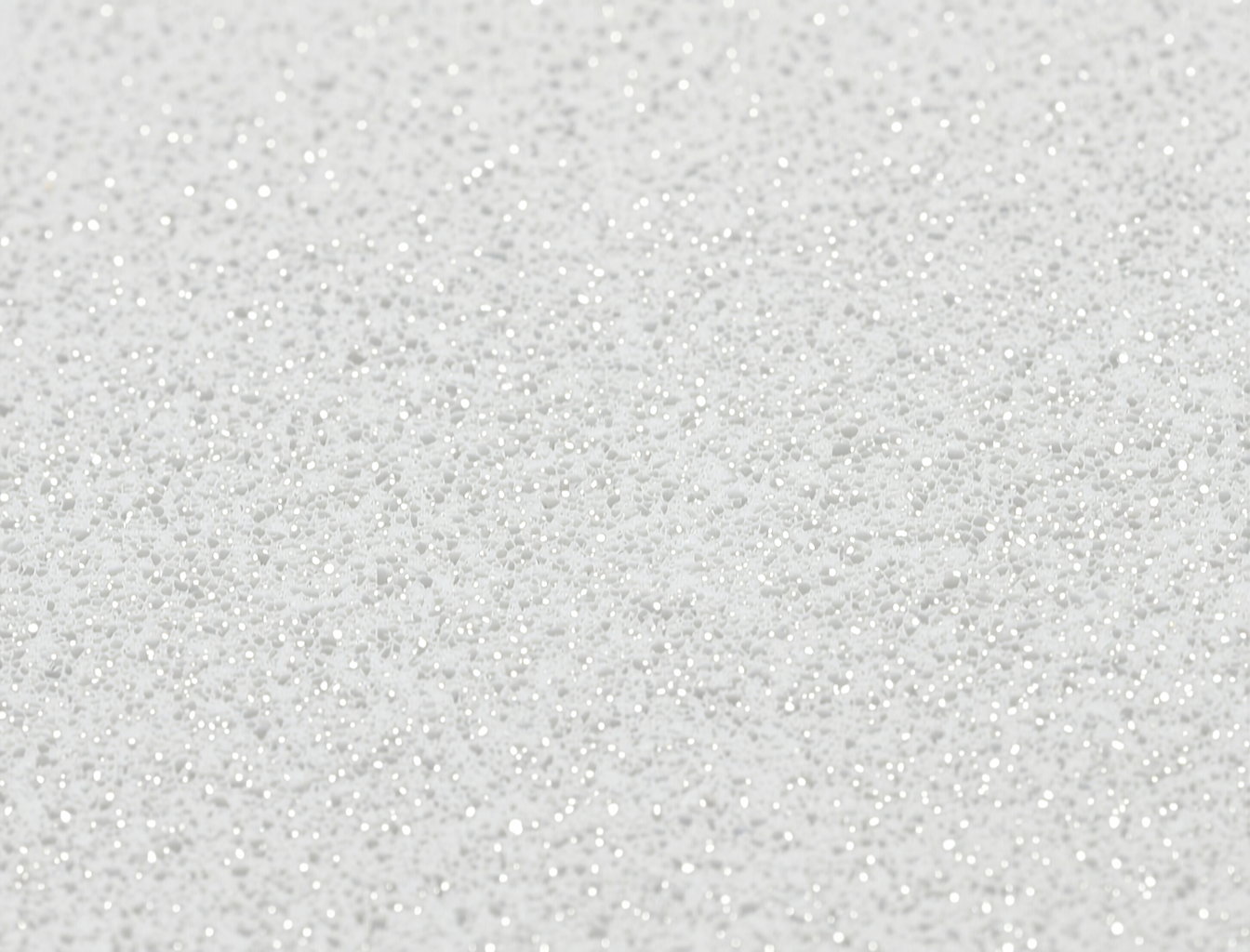

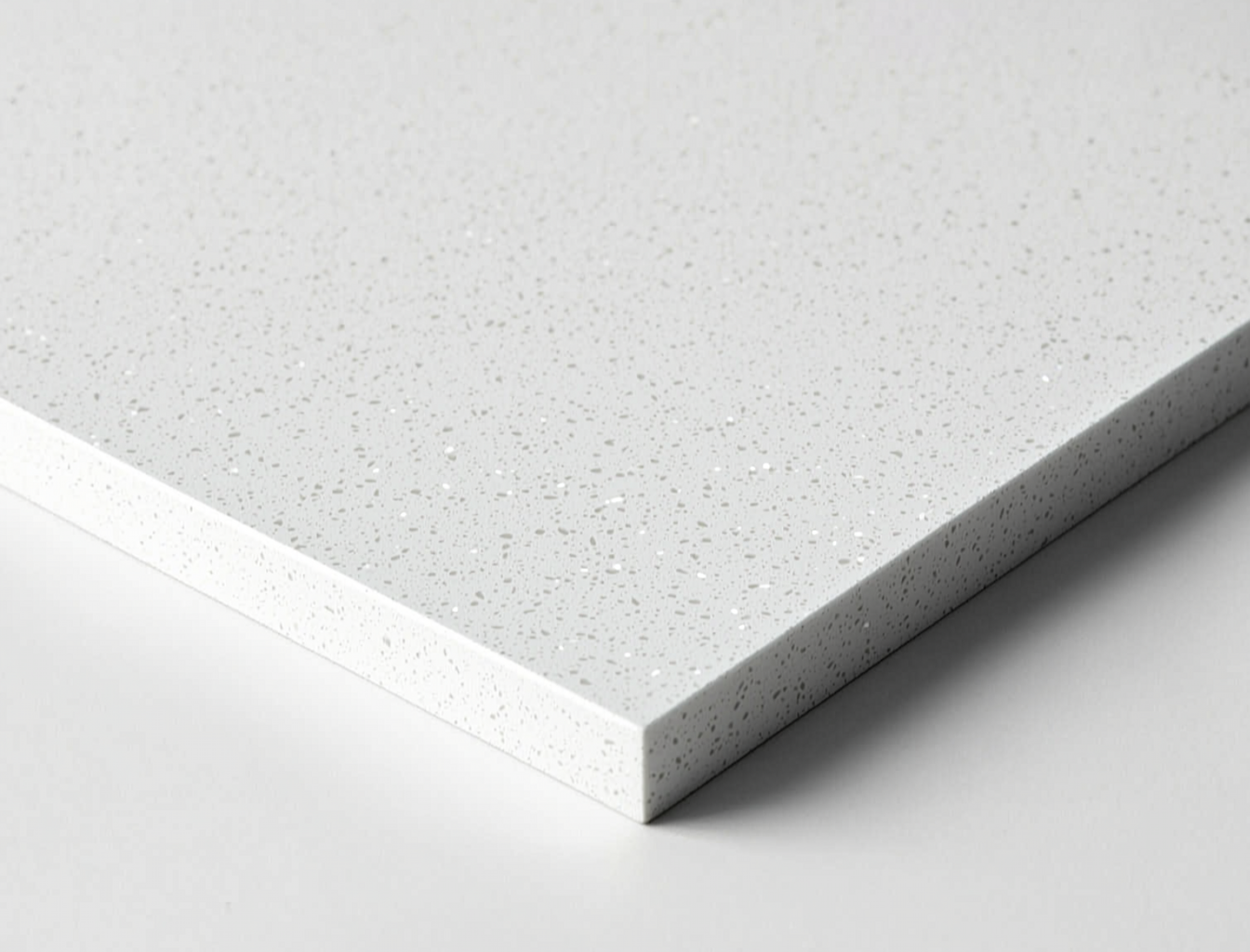

Detail views that show surface, edge, and finish quality.
Surface texture, edge treatment, and finish-control photography help clients judge the material beyond the data.
Questions
What architects and homeowners ask.
Yes. Fadior's 12 glue-free manufacturing patents (CN201820156XXX.X series) enable mechanical mounting via stainless steel brackets and M6 fasteners with EPDM isolation washers. This eliminates silicone beads and epoxy adhesives that off-gas VOCs, maintaining GB/T 39600-2021 Class ENF zero-formaldehyde compliance throughout the assembly.
Quartz-composite resin softening begins at 150°C per ASTM D7028 DMA analysis, with permanent deformation above 180°C. Fadior 304 stainless steel per ASTM A240 withstands continuous operation at 550°C without structural compromise, and short-term exposure to 800°C. This 3.7× thermal margin makes steel essential for unprotected cooktop zones and outdoor applications.
Quartz-composite emits <50 μg/m³ formaldehyde and <100 μg/m³ total VOCs per ISO 16000-6 28-day testing—low but nonzero. Fadior's all-steel systems achieve true zero-formaldehyde (undetectable <5 μg/m³) through mechanical assembly and 220°C-cured powder coatings. Quartz integration is acceptable where stone aesthetics are prioritized; steel-only specification is recommended for chemically sensitive environments.
Quartz UV stability: ΔE 3–5 color shift after 1,000 hours QUV-A per ASTM G154, with resin degradation accelerating beyond 5 years direct exposure. Thermal shock from solar heating (surface 60–80°C) to evening cooling creates stress fractures. Fadior outdoor specification: Microparticle Crystal Resin coated 304 steel or PVD-finished solid steel, both with 30-year warranty coverage vs. 15–20 year quartz service life.
No. Quartz damage requires slab replacement: the thermoset polyester matrix cannot be re-fused, and color-matched repair epoxies achieve only 30–40% of original flexural strength per ASTM C880. Fadior stainless steel permits TIG welding repair with 100% strength recovery and seamless refinishing, enabling localized restoration without full component replacement.
Quartz mass loading: 60–75 kg/m² for 30mm thickness. Fadior specification: 7th-generation glue-free frames with 1.2mm 304 steel walls, Salvagnini P4Xe precision bending, and cross-bracing at 400mm centers. This achieves <0.5mm deflection under 150 kg/m² distributed load—competitor particleboard carcasses typically exceed 2mm sag under equivalent loading.
