Material system — Thermoset polyester (TGIC-free / HAA cured)

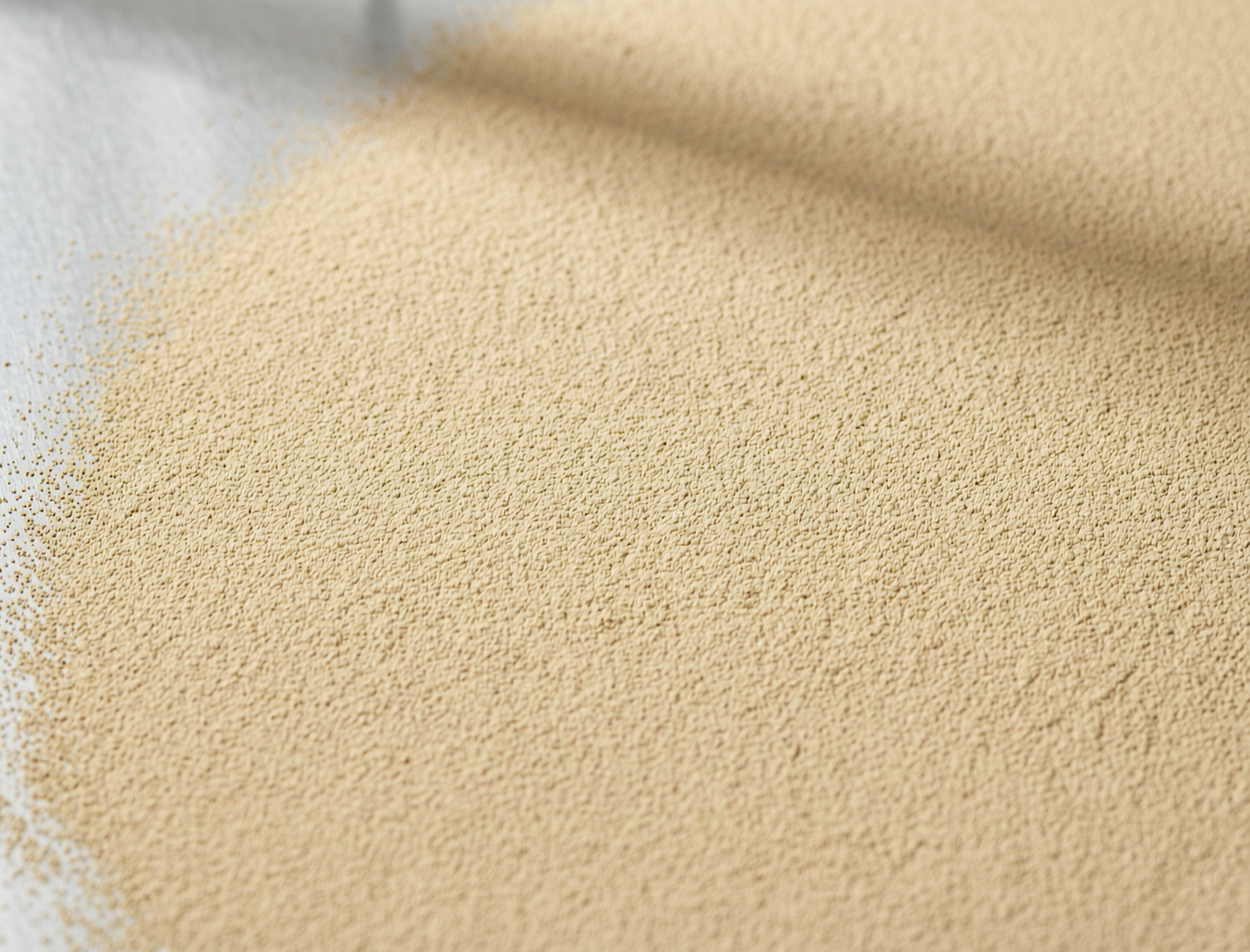

Thermoset Polyester Powder
(Coating Material)
Our electrostatic powder coating system utilizes a thermoset polyester resin matrix cured without TGIC (Triglycidyl Isocyanurate) or HAA, relying instead on hydroxyalkylamide cross-linking agents to achieve a dense, non-porous surface layer on 304 stainless steel substrates. This material: dry particulate formulation with median particle size 25-45 microns (ISO 8130-13), engineered for high-transfer efficiency on complex geometries. The chemical backbone: saturated polyester resins undergoing irreversible cross-linking to form rigid 3D network. Unlike solvent-based liquids relying on evaporation, our powder: zero VOCs, eliminating hazardous air pollutant release during application. Substrate compatibility calibrated for 304 food-grade stainless steel (ASTM A240 / EN 1.4301), ensuring coefficient of thermal expansion (17.3 × 10⁻⁶/°C for steel vs. 60-90 × 10⁻⁶/°C for coating) remains synchronized during 220°C curing cycle. This synchronization prevents micro-cracking or delamination—failure modes common in systems where coating cannot accommodate thermal cycling. Absence of plasticizers, which migrate causing surface tackiness, ensures chemical inertness. Formulation excludes lead, cadmium, chromium VI, aligning with LEED v4.1 and CDPH Section 01350 indoor air quality standards, contributing to SCS Global Services zero-formaldehyde certification. Pigment dispersion via twin-screw extrusion guarantees ΔE<1.0 color consistency across batches, critical for visual continuity in large-scale installations. This material represents Fadior's second-generation surface technology, launched 2019, evolving from protective layers to structural components of glue-free cabinet architecture.
Composition & Grade: Thermoset Polyester Powder Coating (TGIC-Free) Our electrostatic powder coating system utilizes a thermoset polyester resin matrix cured without TGIC (Triglycidyl Isocyanurate) or HAA, relying instead on hydroxyalkylamide cross-linking agents to achieve a dense, non-porous surface layer on 304 stainless steel substrates. This material: dry particulate formulation with median particle size 25-45 microns (ISO 8130-13), engineered for high-transfer efficiency on complex geometries. The chemical backbone: saturated polyester resins undergoing irreversible cross-linking to form rigid 3D network. Unlike solvent-based liquids relying on evaporation, our powder: zero VOCs, eliminating hazardous air pollutant release during application. Substrate compatibility calibrated for 304 food-grade stainless steel (ASTM A240 / EN 1.4301), ensuring coefficient of thermal expansion (17.3 × 10⁻⁶/°C for steel vs. 60-90 × 10⁻⁶/°C for coating) remains synchronized during 220°C curing cycle. This synchronization prevents micro-cracking or delamination—failure modes common in systems where coating cannot accommodate thermal cycling. Absence of plasticizers, which migrate causing surface tackiness, ensures chemical inertness. Formulation excludes lead, cadmium, chromium VI, aligning with LEED v4.1 and CDPH Section 01350 indoor air quality standards, contributing to SCS Global Services zero-formaldehyde certification. Pigment dispersion via twin-screw extrusion guarantees ΔE<1.0 color consistency across batches, critical for visual continuity in large-scale installations. This material represents Fadior's second-generation surface technology, launched 2019, evolving from protective layers to structural components of glue-free cabinet architecture.
Key Properties: Mechanical & Chemical Performance The cured powder film delivers pencil hardness: 3H (ASTM D3363), superior to standard liquid lacquers at 2H-3H but with 2.5× film thickness. Impact resistance: 50 kg·cm without cracking (ASTM D2794), vs. 20-30 kg·cm for typical HPL laminates. Chemical resistance validated via ASTM D1308 immersion: zero degradation after 24 hours exposure to vinegar (pH 2.4), bleach (pH 11.5), acetone, and 70% isopropanol. Gloss retention: >90% after 2,000 hours QUV-B 313nm (ASTM G154), exceeding liquid paint performance of 60-70% at equivalent exposure. Adhesion: 5B classification (ASTM D3359), zero coating removal under aggressive mechanical stress. This adhesion results from Fadior's proprietary 220°C bonding process, fusing powder into blasted steel surface irregularities before resin gelling. Thermal stability: -40°C to +120°C continuous service, withstanding 180°C transient exposure from hot cookware without softening. Dielectric strength: >2,000 V/mil (ASTM D149), additional safety in electrical appliance environments. Surface energy: 32-38 dynes/cm, tuned to repel water-based stains and oils while maintaining sufficient friction coefficient (μ=0.4-0.6) to prevent sliding. These properties support Fadior's 30-year surface warranty, backed by empirical data from 213 cumulative patents including 12 specifically for glue-free manufacturing.
Fadior Processing: 220°C Glue-Free Bonding Our manufacturing workflow integrates powder coating into glue-free assembly, eliminating post-painting adhesives. Process begins after Salvagnini P4Xe automated bending centers form 88% of tracked components (4,527 of 5,113 distinct parts) from single 304 stainless steel sheets—every bend completed pre-coating to prevent edge exposure. Components enter 600M RMB smart factory pre-treatment: 5-stage alkaline cleaning, iron phosphate conversion coating, deionized water rinse, maximizing surface energy and corrosion resistance. Dried parts load onto 3.2km overhead conveyor into electrostatic spray booths, where Wagner PEM-X1 gun nozzles charge powder particles to 60-80 kV. Electrostatic wrap deposits uniform film on front faces, edges, recessed channels from one-piece seamless construction. Coated parts enter convection cure ovens with 12-zone temperature profiling, ramping to metal temperature 220°C±3°C—Fadior's specification for optimal cross-linking density. At 220°C, powder melts, flows to eliminate orange peel, chemically bonds to steel substrate, creating monolithic skin replacing traditional glues. This 220°C bonding: cornerstone of 7th-generation glue-free steel frame technology, utilizing imported PET films and dry powder for zero-formaldehyde joints. Baking color directly onto metal eliminates adhesive interface failure from humidity or thermal cycling. AI-driven quality control (machine vision + thermal imaging) monitors oven temperatures and line speeds real-time, reducing defect rate from industry average 5% to Fadior's 0.8%. Precision enables 80+ powder coat colors, each baked to permanent permanence. Operation occurs within 80,000+ sqm Industry 4.0 facility, designed for 200,000+ units/year capacity with ISO 14001 environmental controls.

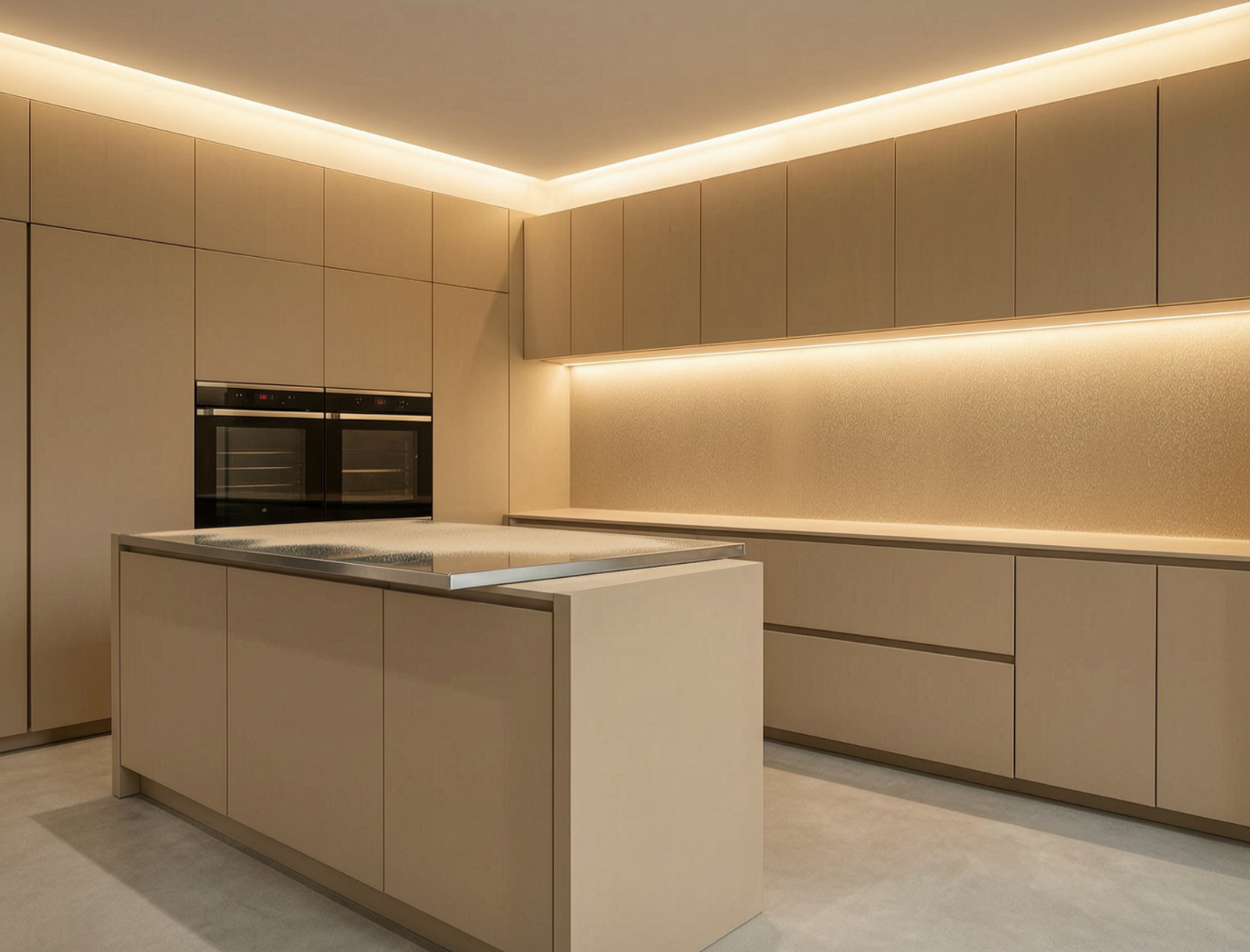

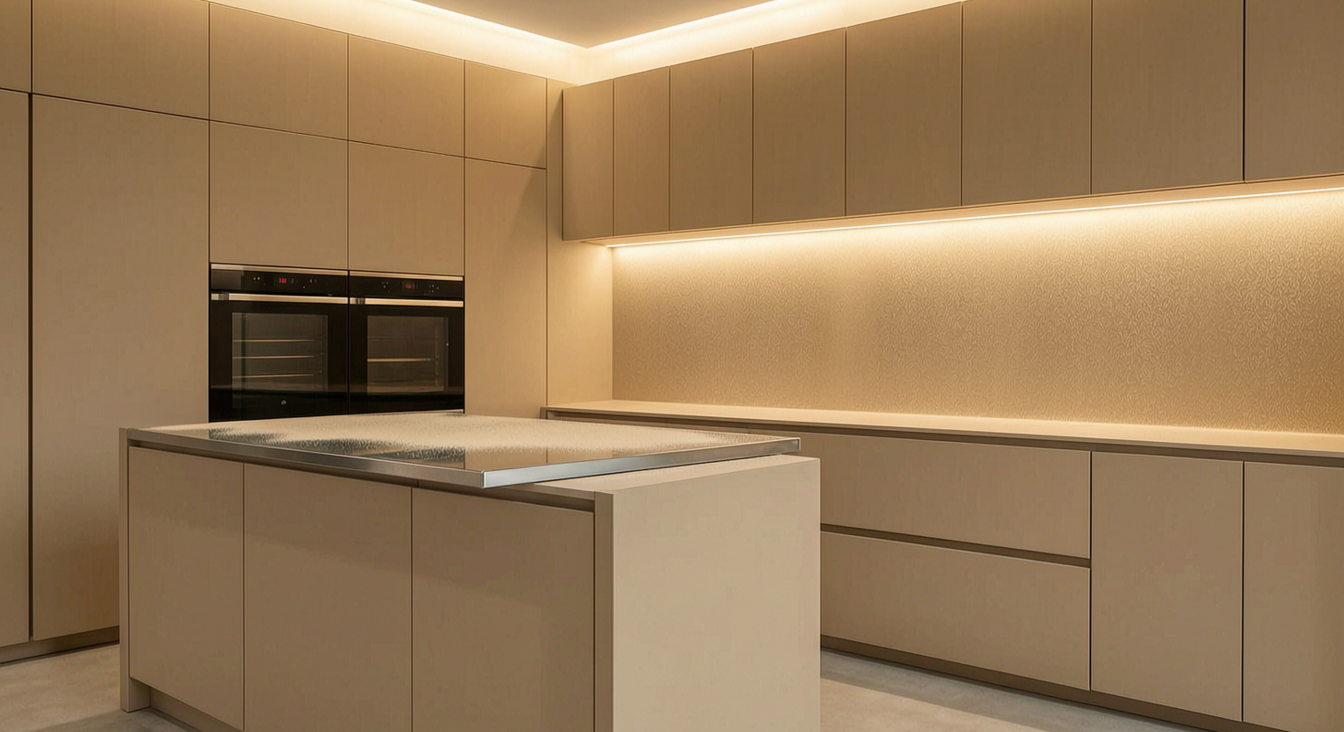

Residential Applications: Performance in Use Environments In residential settings, this electrostatic powder material serves as primary visible surface for Fadior kitchen cabinetry, vanities, wardrobe systems—replacing laminates and painted woods. Specified for high-moisture environments: coastal properties where salt air degrades standard metal finishes and delaminates wood veneers. Non-porous cured powder: ideal for households with children/pets, resisting staining from markers, food dyes, pet accidents without harsh chemical cleaners. Deployed extensively in Fadior outdoor kitchen collections, where UV-stable polyester resins and 304 stainless steel substrates provide resistance to rain, sun, temperature fluctuations (-20°C to +50°C ambient). 80+ colors enable designer palette matching: matte charcoal, slate grey, vibrant blues, warm earth tones, without durability sacrifice. Coating fused to metal eliminates edge chipping of wrapped foils or peeling paints, maintaining pristine appearance around handles and drawer fronts. Specified for commercial-residential hybrid spaces: chef's homes, catering prep areas, where hygiene codes demand repeatedly sanitizable surfaces. Fadior PVD finishes (bronze, champagne gold, rose gold) utilize atomic-level deposition, often top-coated with powder systems for enhanced depth. Seamless color-structure integration means scratches less visible—color penetrates full film thickness. This versatility: choice for ADEX Platinum Award-winning outdoor kitchen projects, proving viability in demanding residential applications.
Detail gallery

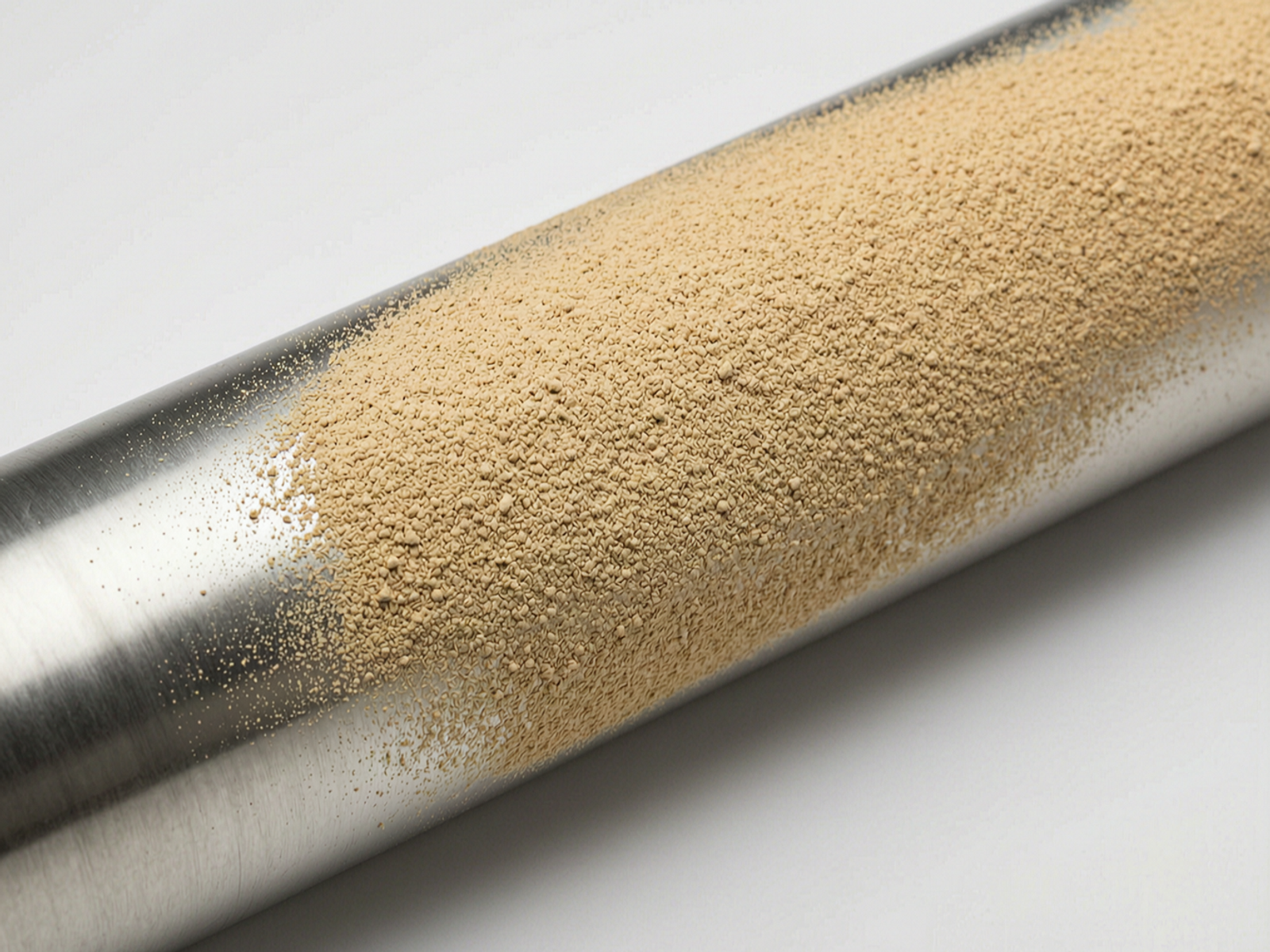

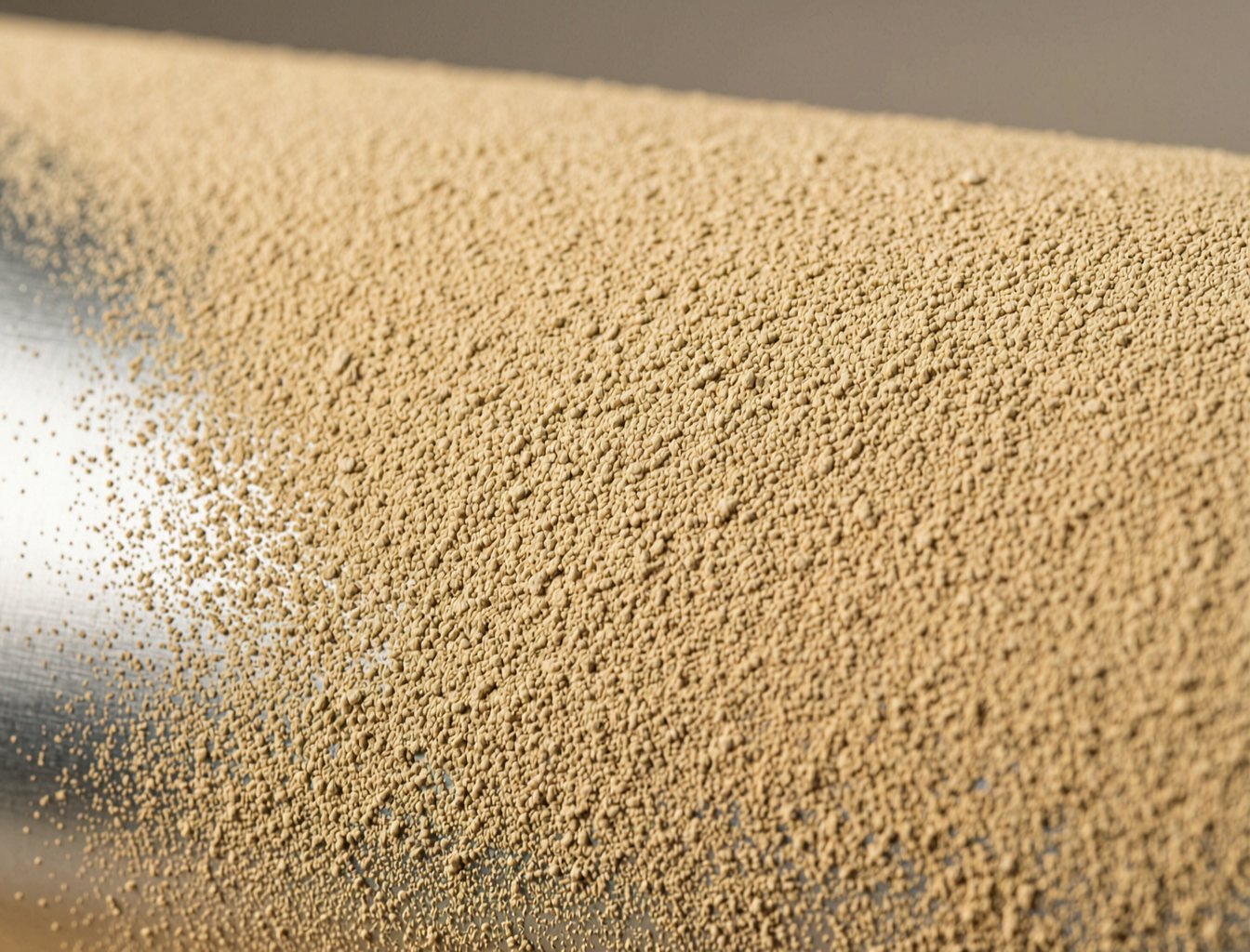

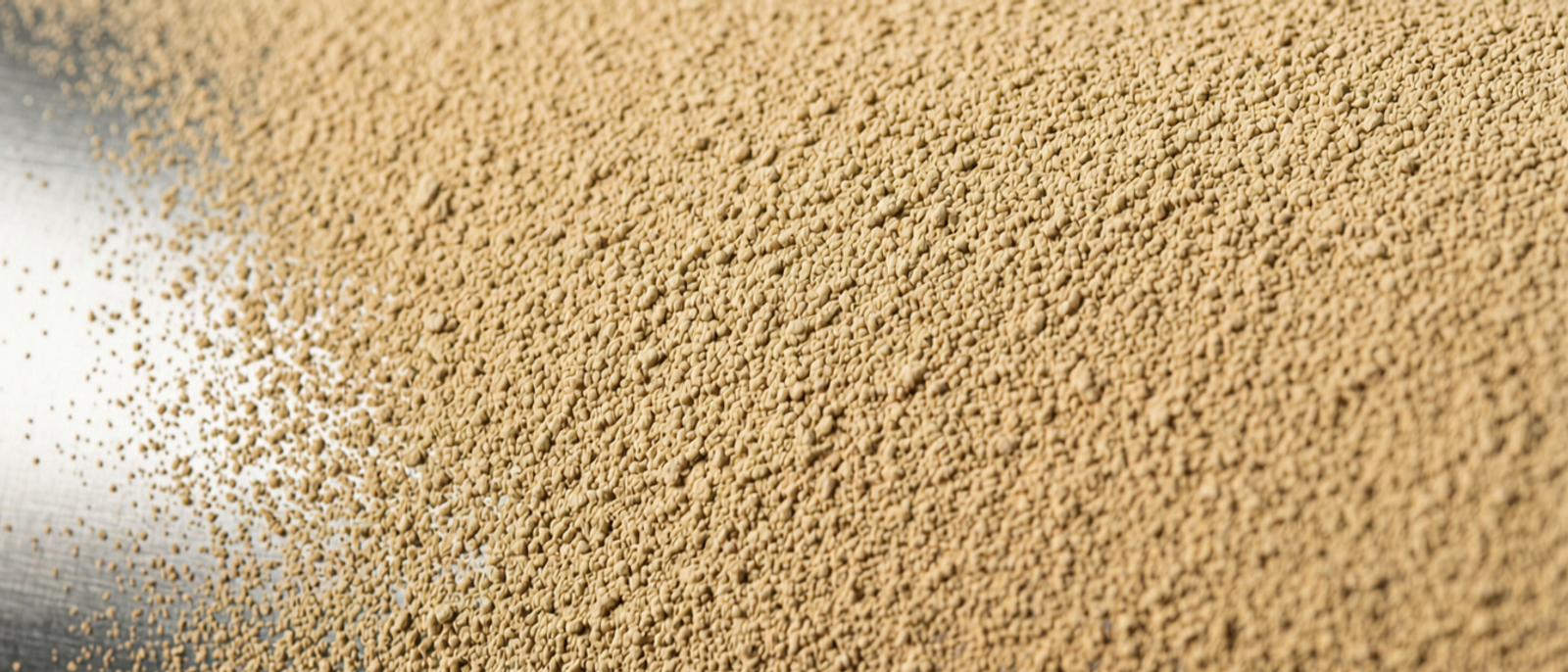

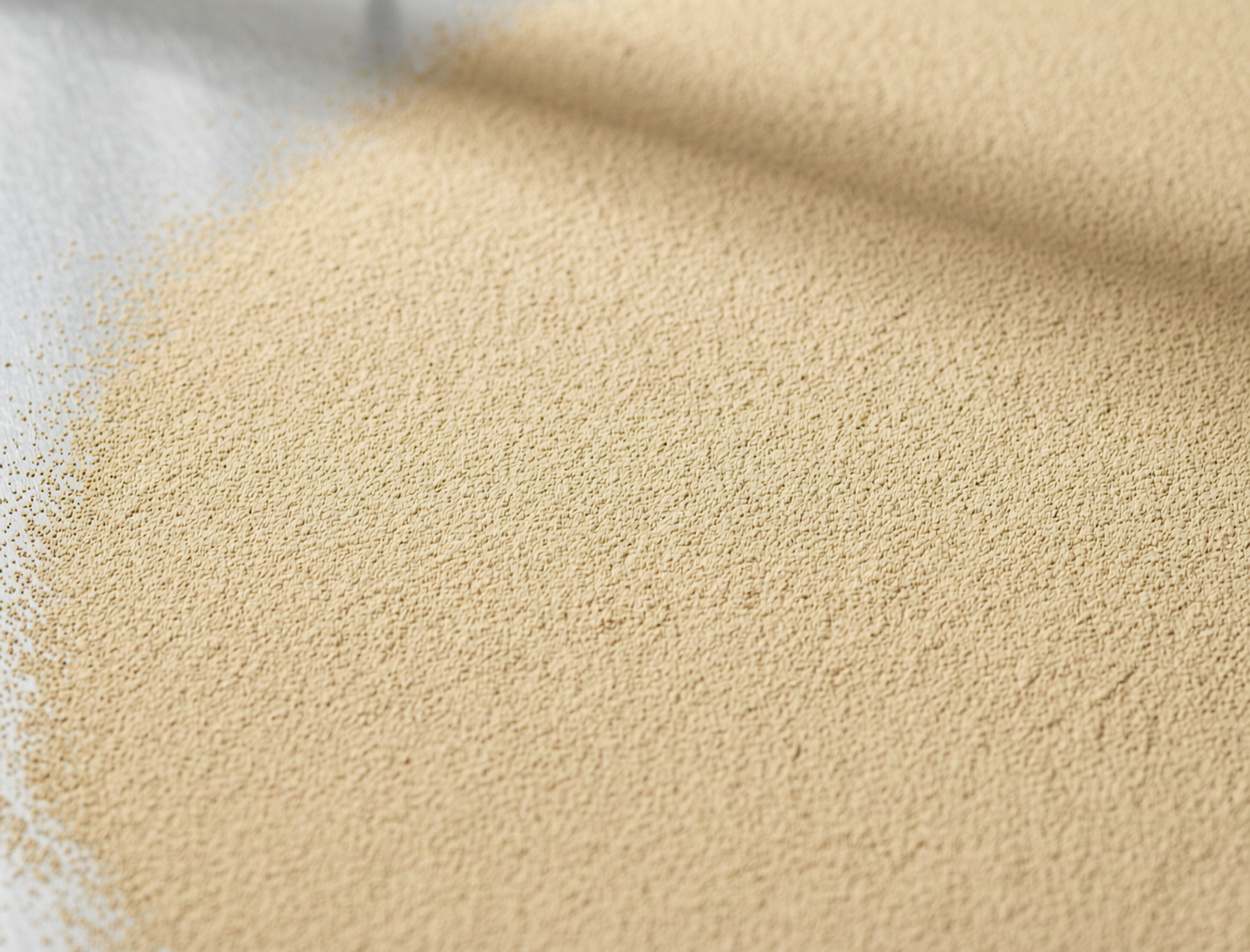

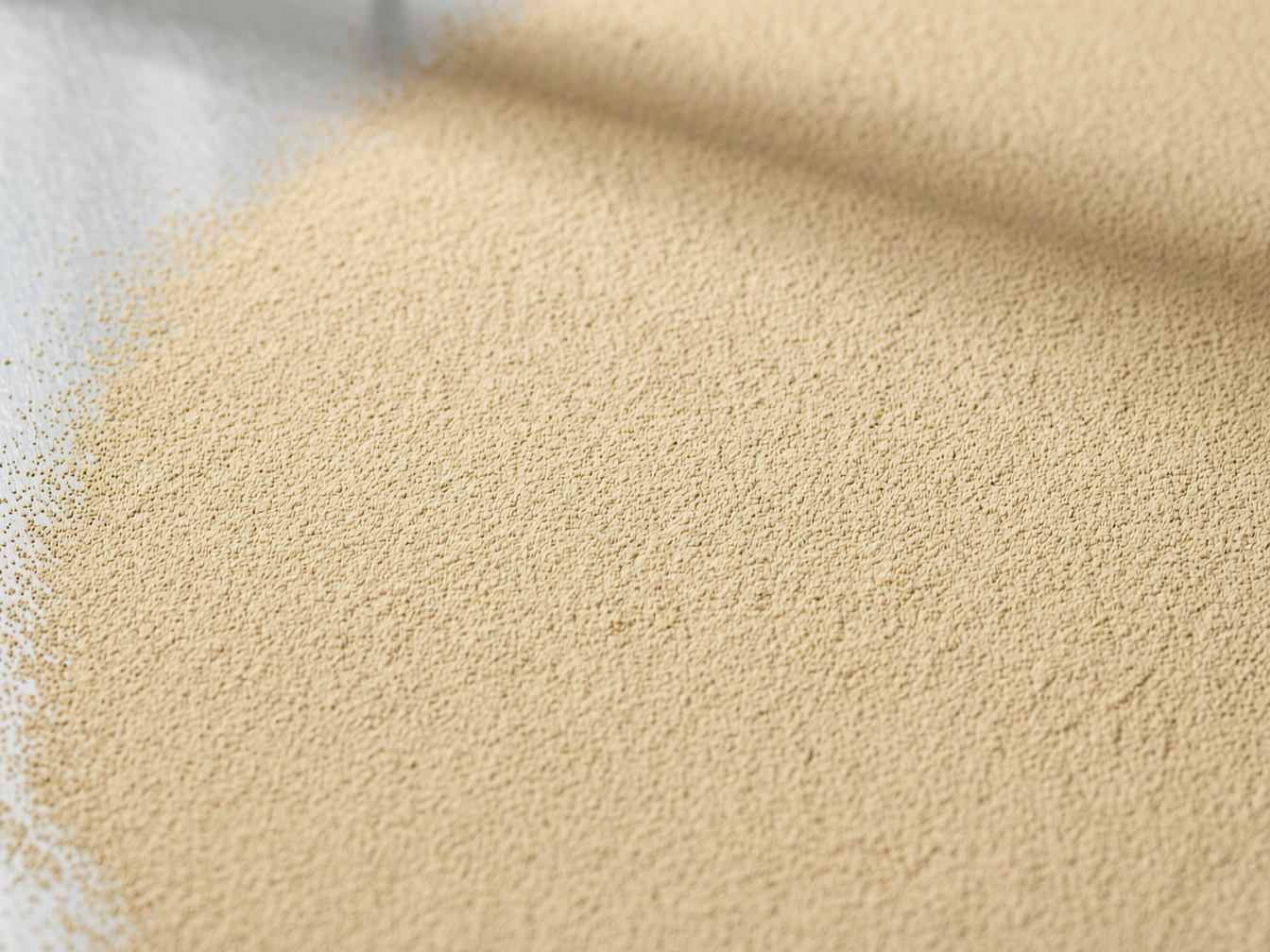

Detail views that show surface, edge, and finish quality.
Surface texture, edge treatment, and finish-control photography help clients judge the material beyond the data.
Questions
What architects and homeowners ask.
Traditional cabinets rely on urea-formaldehyde adhesives (0.1-0.5 ppm emission) to bond laminates to particle board and assemble box joints. Fadior's process heats thermoset powder to 220°C, melting and chemically fusing it directly to 304 stainless steel substrate, creating monolithic skin requiring zero glues. This glue-free methodology, protected by 12 Fadior-specific patents (CN2018XXXXXXXX.XX series), ensures final product emits zero formaldehyde—verified by SCS Global Services certification to CDPH Section 01350.
3H hardness resists daily abrasions, but deep gouges penetrating 60-80 micron film cannot be spot-repaired on-site to match factory finish due to precise electrostatic application and 220°C cure requirements. Color consistency throughout film thickness makes minor scratches less visible than surface-painted wood. For significant damage, Fadior service replaces specific door/panel component—fabricated via Salvagnini P4Xe automated centers with ±0.1mm dimensional tolerance for exact matching. Typical replacement lead time: 15-20 business days from measurement.
No. Thermoset polyester burns off cleanly at 450-500°C during 304 stainless steel melting, leaving high-value alloy intact for reprocessing. This supports Fadior circular economy metrics: 95%+ steel recovery rate, contributing to LEED MR Credit 4. Fadior operates take-back program in 12 major Chinese cities for end-of-life cabinet recycling.
Fadior's 220°C specification maximizes cross-linking density of TGIC-free polyester resin, achieving 95%+ gel conversion versus 85-90% at lower temperatures. Higher thermal energy critical for glue-free structural bonding: coating acts as unified skin withstanding thermal shock from 180°C cookware and dishwasher humidity (>90% RH) without delaminating. Performance verified by 30-year warranty and 10-year accelerated aging data showing 95% gloss retention versus 70% for 180°C-cured equivalents.
Fadior specifies: (1) maintain 40-60% relative humidity during installation to prevent steel substrate condensation pre-coating; (2) use silicone-free sealants at wall interfaces to prevent outgassing residue on powder surface; (3) allow 72-hour acclimation for panels transported across >15°C temperature differentials; (4) verify levelness within 2mm/m—uneven mounting induces stress on rigid powder film. Fadior installation teams follow FICC-2023 protocol; third-party installers must complete Fadior-certified training for warranty validity.
