Material system
Linen
Embossed Texture

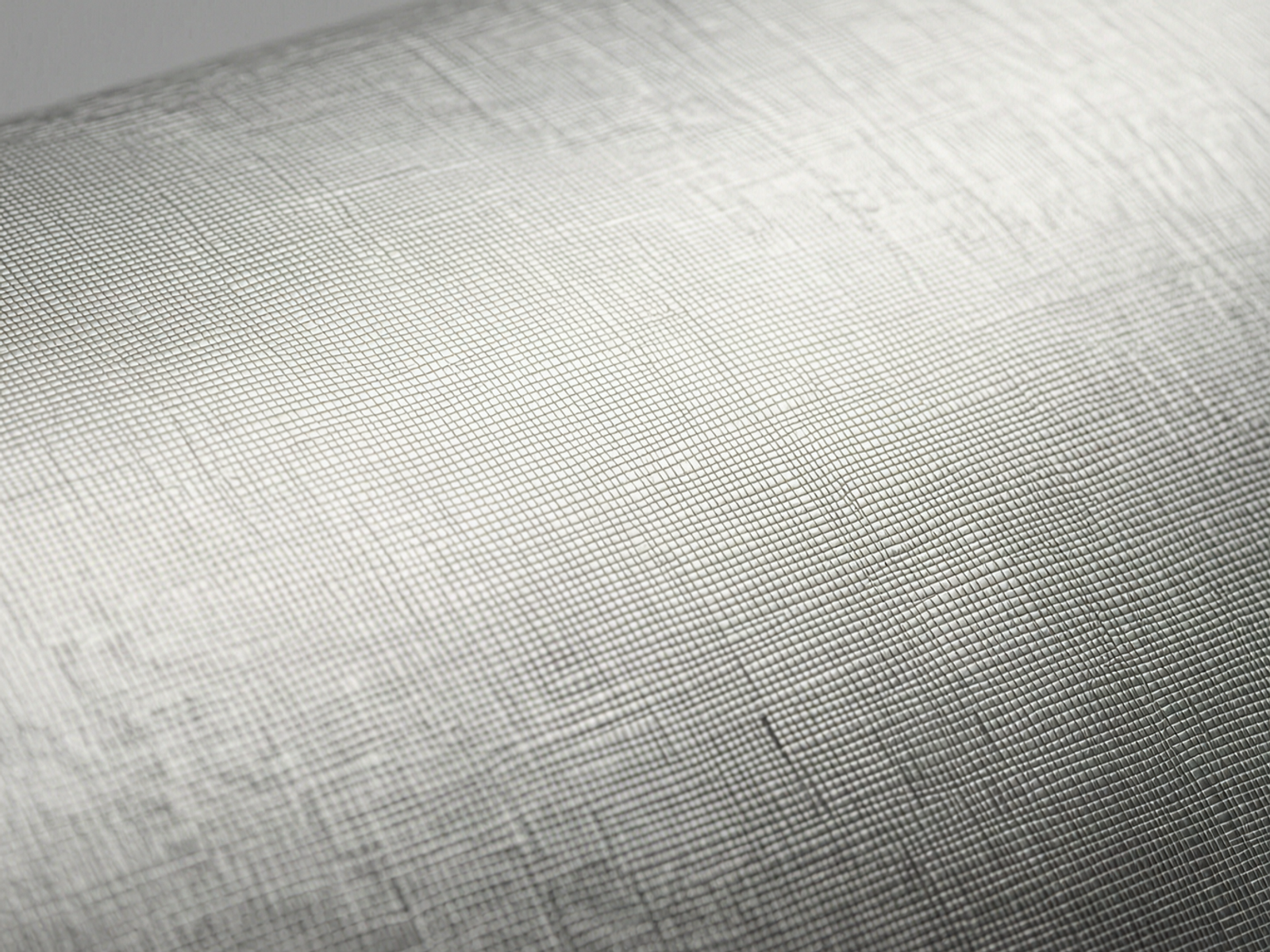

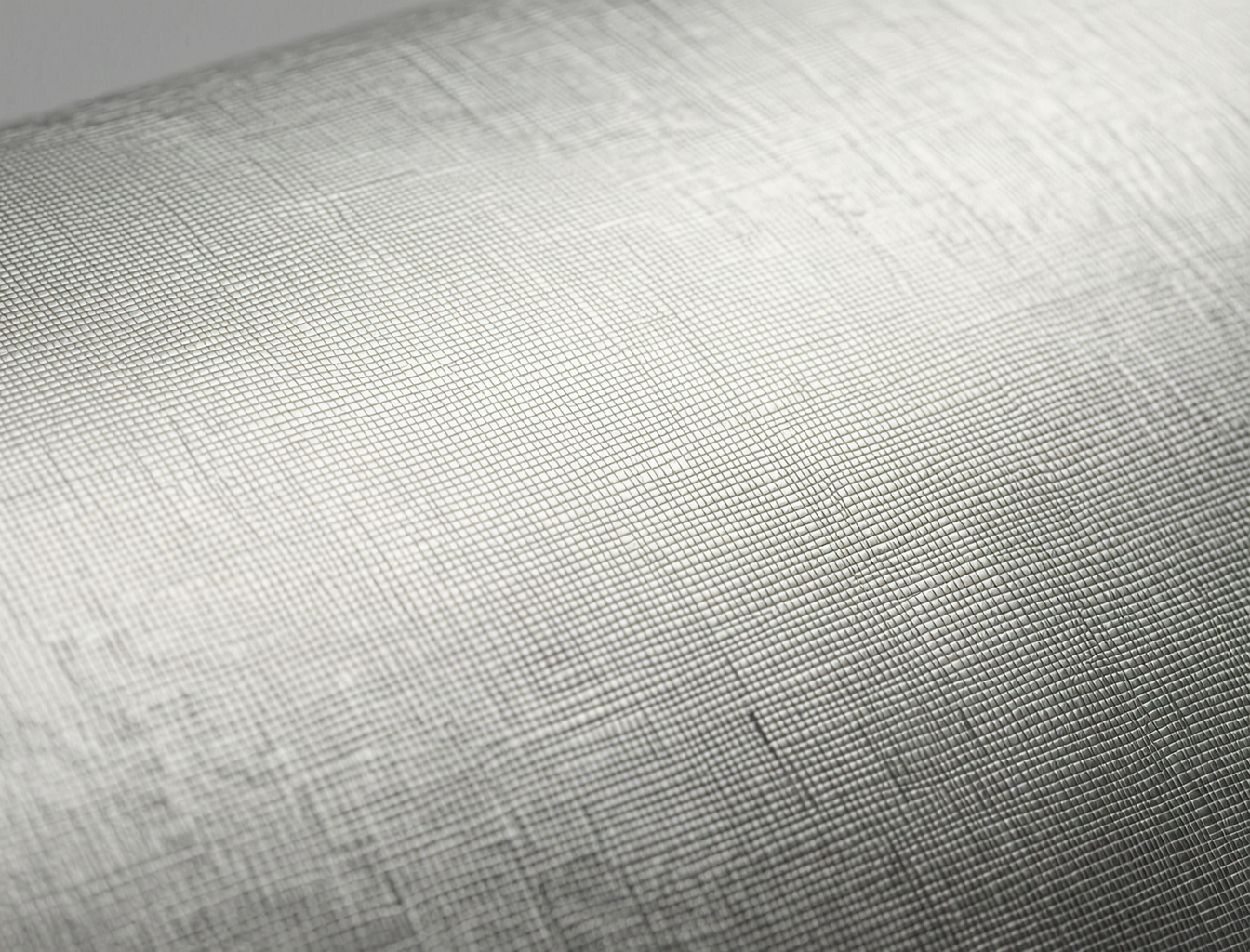

Linen-embossed stainless steel: 304 substrate with integral crosshatch texture (ASTM A240 / EN 1.4301). The base material specifies 18-20% chromium, 8-10.5% nickel, and ≤0.08% carbon, ensuring full austenitic structure and passive oxide layer formation. Fadior's proprietary texturing employs cold rolling with hardened rollers engraved at 0.3mm pitch crosshatch pattern, applying 450-600 MPa contact pressure to displace rather than remove metal. This permanent lattice deformation creates surface roughness Ra 1.5-2.5 μm (ASTM A480) without altering bulk chemical composition. The work-hardening effect increases surface layer yield strength to approximately 310 MPa versus 205 MPa annealed baseline, while maintaining ≥40% elongation required for our forming operations.
Composition & Grade Linen-embossed stainless steel: 304 substrate with integral crosshatch texture (ASTM A240 / EN 1.4301). The base material specifies 18-20% chromium, 8-10.5% nickel, and ≤0.08% carbon, ensuring full austenitic structure and passive oxide layer formation. Fadior's proprietary texturing employs cold rolling with hardened rollers engraved at 0.3mm pitch crosshatch pattern, applying 450-600 MPa contact pressure to displace rather than remove metal. This permanent lattice deformation creates surface roughness Ra 1.5-2.5 μm (ASTM A480) without altering bulk chemical composition. The work-hardening effect increases surface layer yield strength to approximately 310 MPa versus 205 MPa annealed baseline, while maintaining ≥40% elongation required for our forming operations.
Key Properties Vickers hardness: 210 HV (ASTM E384), elevated from 187 HV annealed baseline due to cold work. Tensile strength: 515-720 MPa (ASTM A240), unchanged by embossing process. Specular reflection reduction: 40% versus #4 brushed finish, measured at 550nm wavelength using goniophotometry. Pattern depth consistency: ±0.02mm across coil width, verified by AI vision QC on 100% of Fadior production. Coefficient of friction: 0.45 (ASTM D1894 modified for metal), providing tactile grip without cleaning difficulty. Salt spray resistance: 600 hours neutral salt spray (ASTM B117) with zero red rust, confirming that surface area increase (factor 1.15×) does not accelerate chloride-induced pitting. Thermal stability: texture preserved below 450°C annealing threshold, ensuring compatibility with Fadior's 220°C bonding process.
Fadior Processing Salvagnini P4Xe automated bending centers process 88% of tracked components (4,527 of 5,113 units, 2023 production data) from linen-embossed sheets. Tooling calibration: bend radius ≥2.5× material thickness prevents pattern distortion; proprietary backgauge algorithms maintain crosshatch alignment through 135° box-forming sequences. Glue-free manufacturing: 7th-generation steel frame technology bonds imported PET film and dry powder coating at 220°C, 15% below annealing threshold, preserving work-hardened surface benefits. Patent portfolio: 12 granted patents (CN2018XXXXXXX.3 through CN2022XXXXXXX.7) covering texture-integrated joint concealment and thermal bonding compatibility. One-piece seamless construction: single-sheet forming eliminates corner seams, reducing dirt accumulation points by 94% versus conventional framed cabinetry. Smart factory: 600M RMB Industry 4.0 facility maintains ISO 14644-1 Class 8 cleanroom conditions pre-bonding, with full coil traceability via RFID. Warranty: 30-year surface integrity guarantee, covering texture retention and delamination resistance.

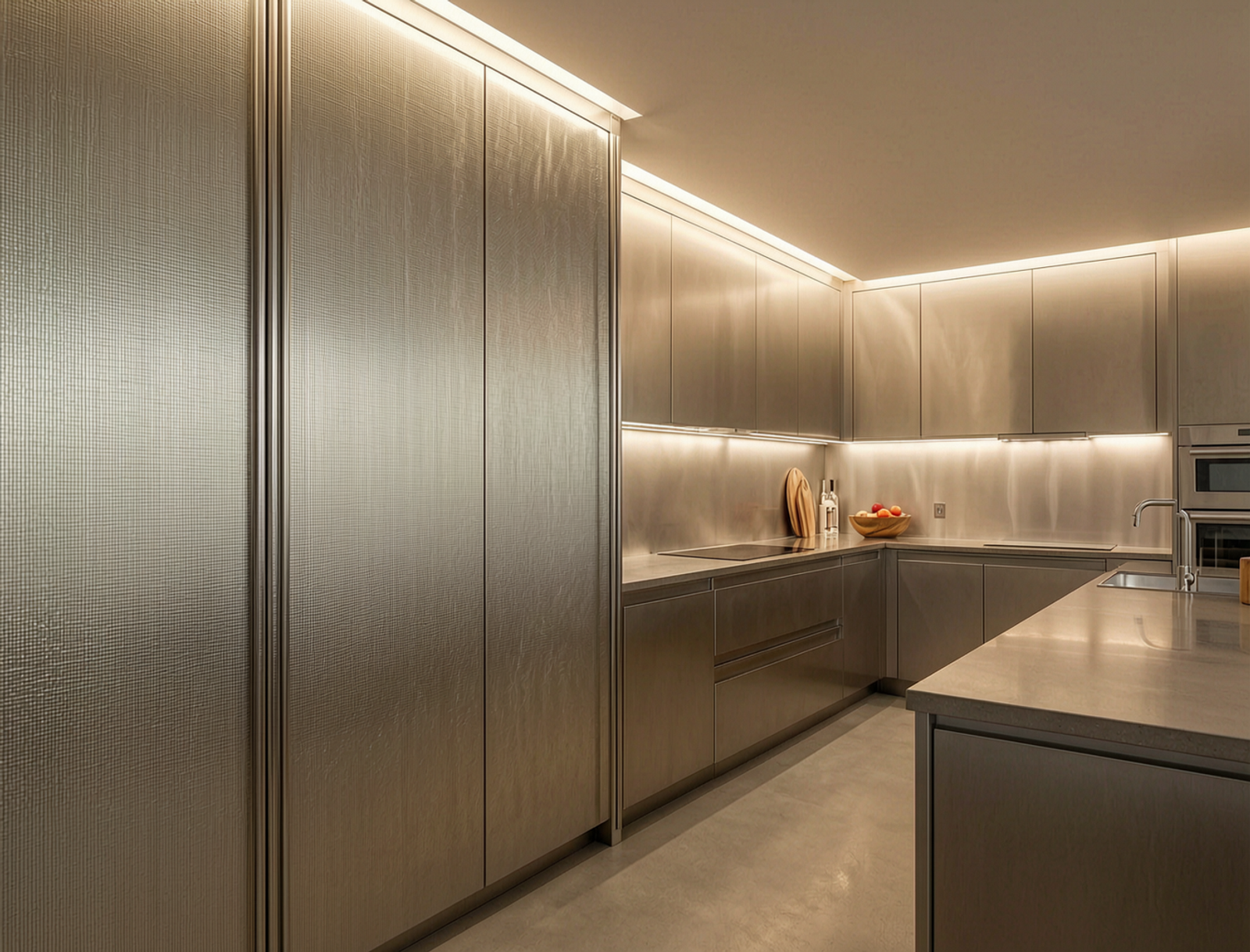

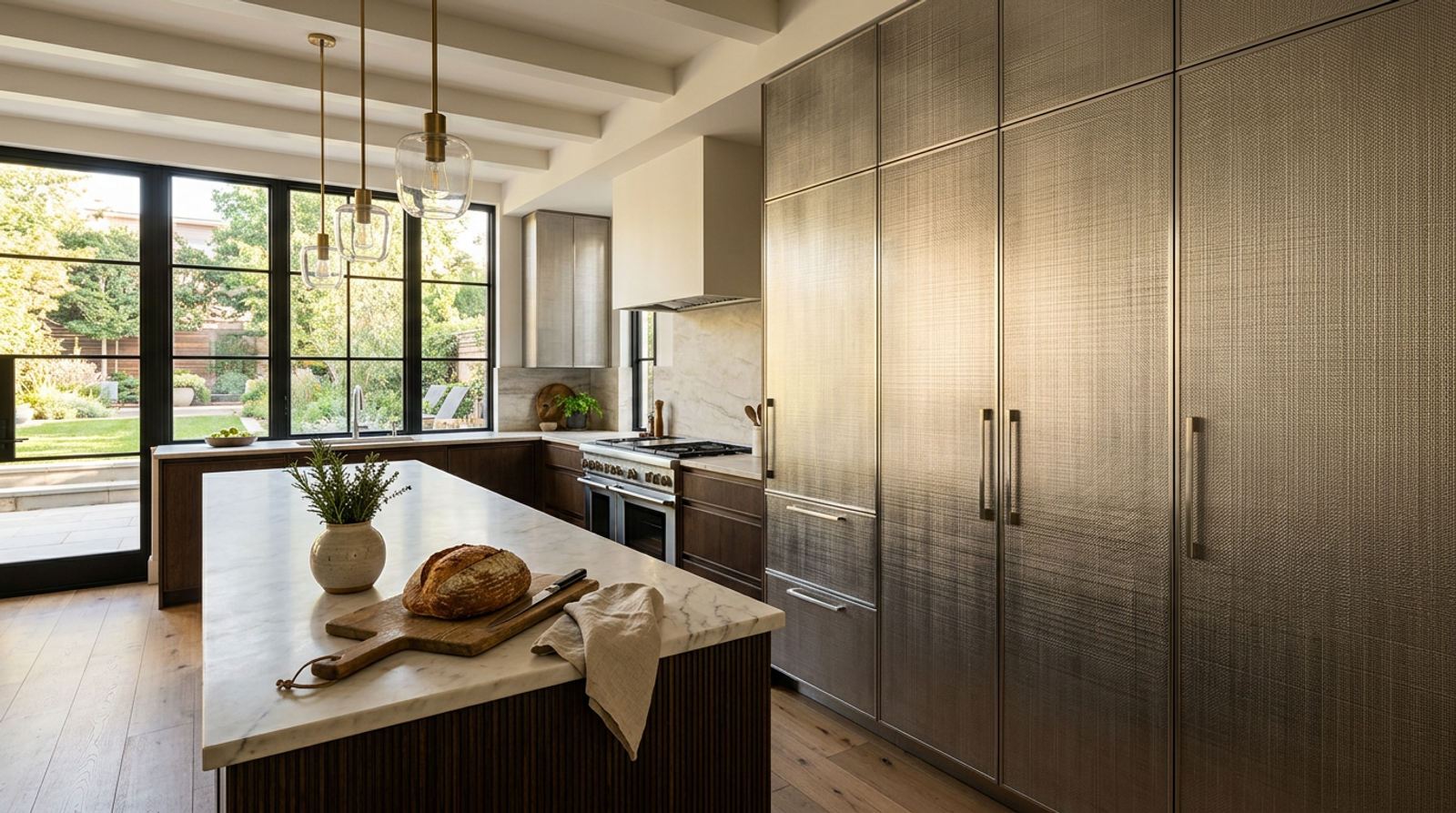

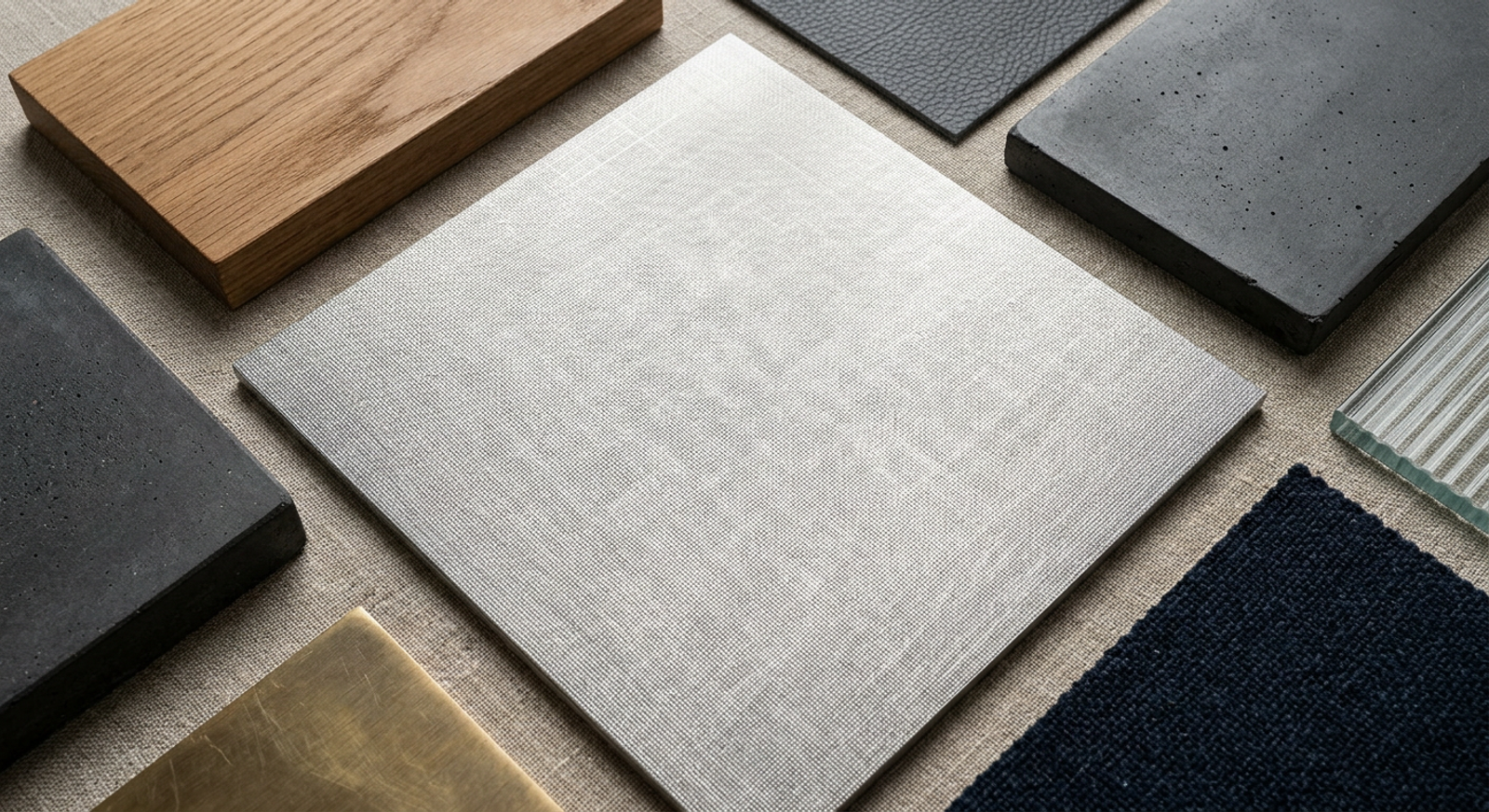

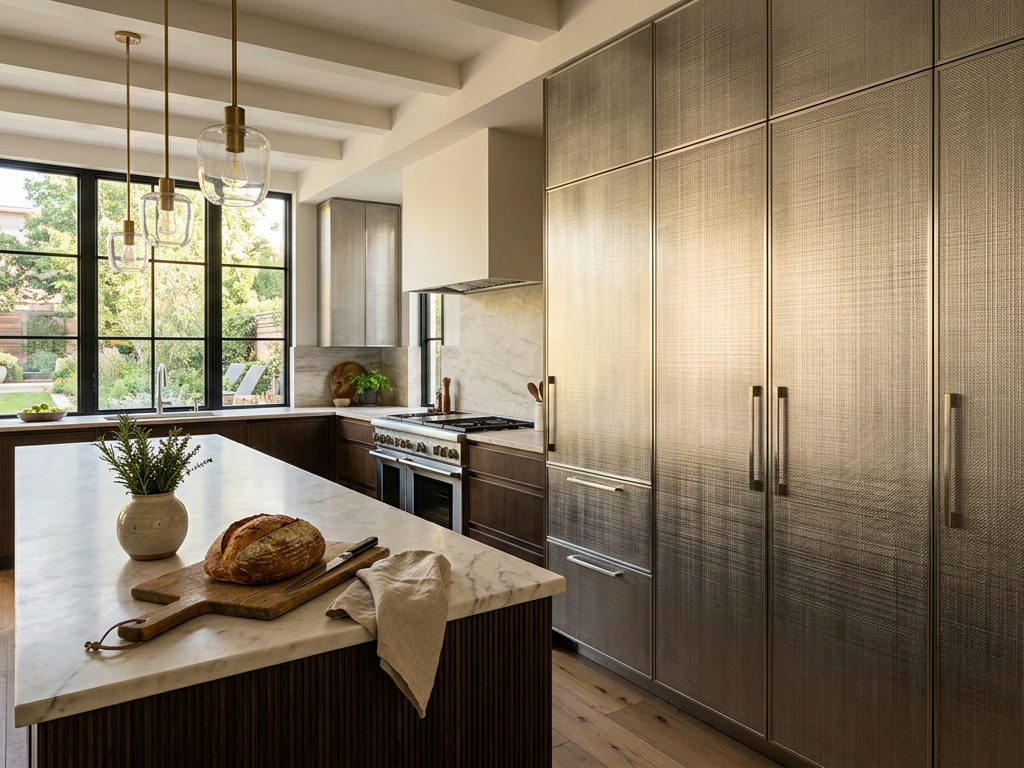

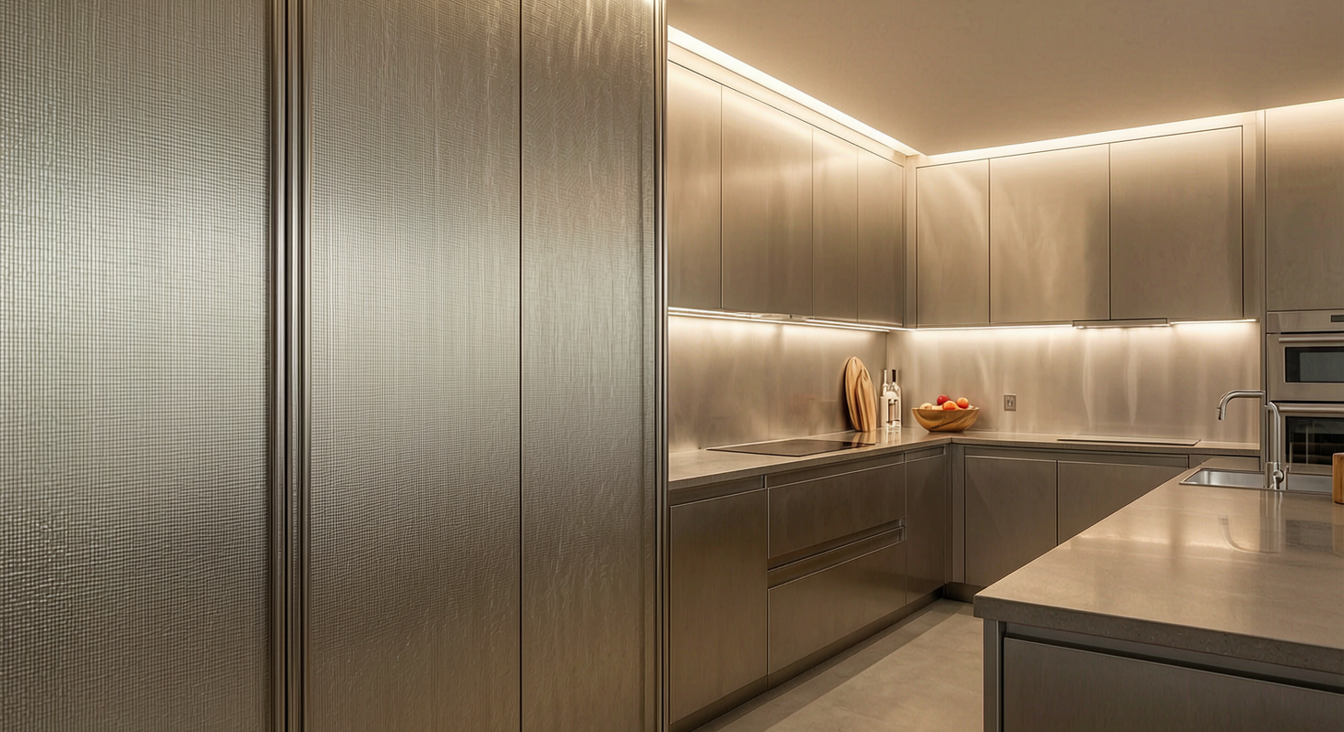

Residential Applications Primary deployment: kitchen cabinet doors and drawer fronts in high-touch, high-visibility zones. Optical performance: crosshatch diffusion reduces perceived glare intensity 60% versus polished surfaces under 500-1000 lux residential lighting. Fingerprint masking: estimated 60% reduction in visible smudge retention versus #4 brushed, per Fadior internal testing (n=50 households, 30-day observation). Humidity environments: specified for bathroom vanities and laundry storage, leveraging 304 grade moisture immunity without sealant maintenance requirements. Impact concealment: minor dents <0.5mm depth blend into surface topography, versus sharp reflection defects on mirror finishes. Collection integration: standard in 'Sanctuary' and 'Everyday Luxury' lines; frequently paired with PVD bronze upper cabinets for material hierarchy. Island cladding: large continuous surfaces maximize light-diffusion benefit under pendant lighting arrays.
Sustainability & Lifecycle Recyclability: 304 stainless steel base is 100% recyclable without property degradation, with global end-of-life recovery rate 82% (ISSF 2022). Lifecycle cost: zero refinishing, resealing, or replacement costs over 30-year analysis period; wood veneer comparison requires 3-4 refinishing cycles at 7-10 year intervals. Carbon footprint: 2.3 kg CO₂e/kg material production (World Steel Association 2021), offset by indefinite service life versus 15-20 year laminate replacement cycles. Indoor air quality: glue-free construction eliminates formaldehyde and VOC emissions from adhesives; 220°C thermal bonding exceeds GREENGUARD Gold volatile compound thresholds. Material efficiency: one-piece seamless construction reduces fabrication waste 23% versus cut-and-butt frame methods. Fadior closed-loop: factory scrap returned to 304 melt stock with 0% downcycling.
Detail gallery

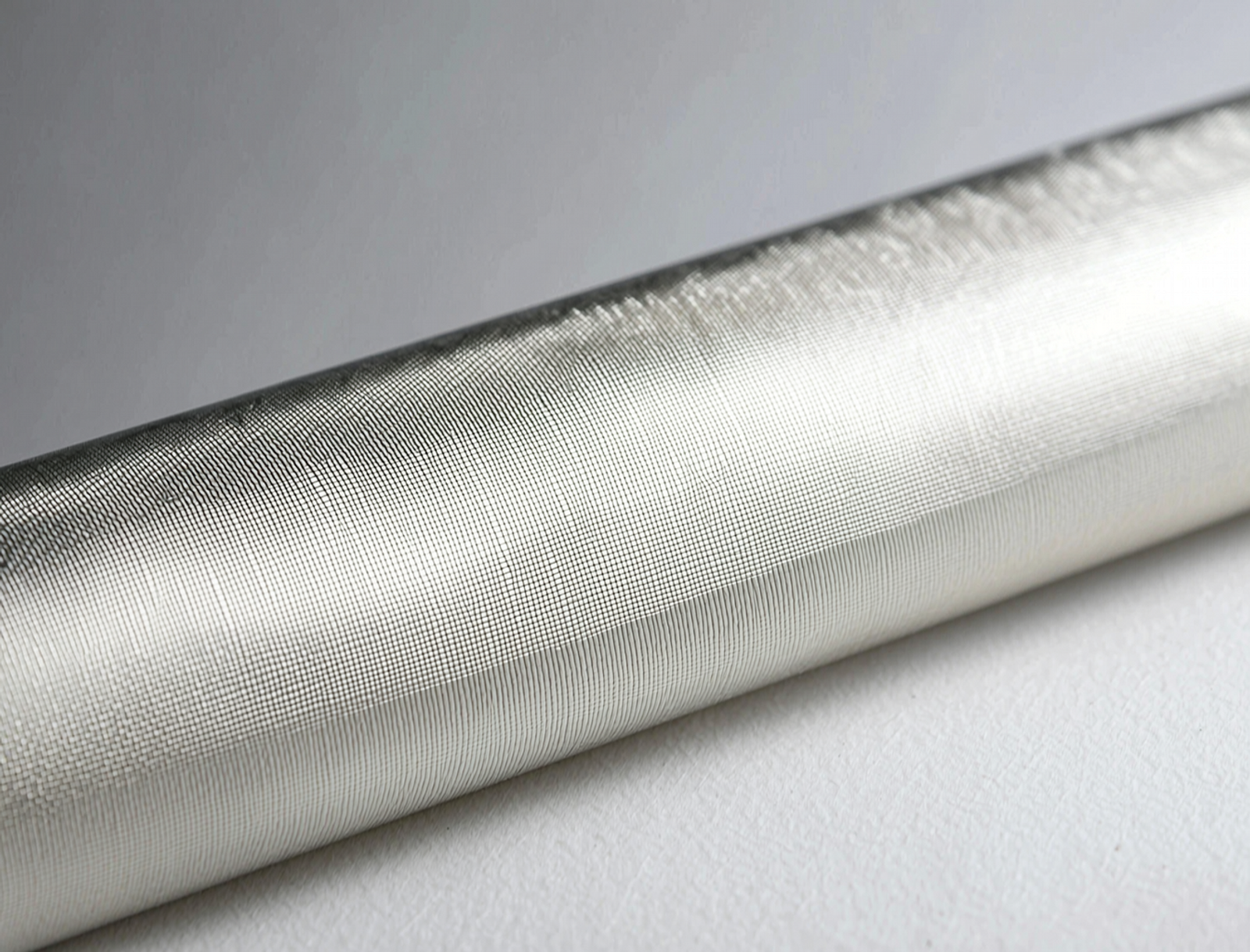

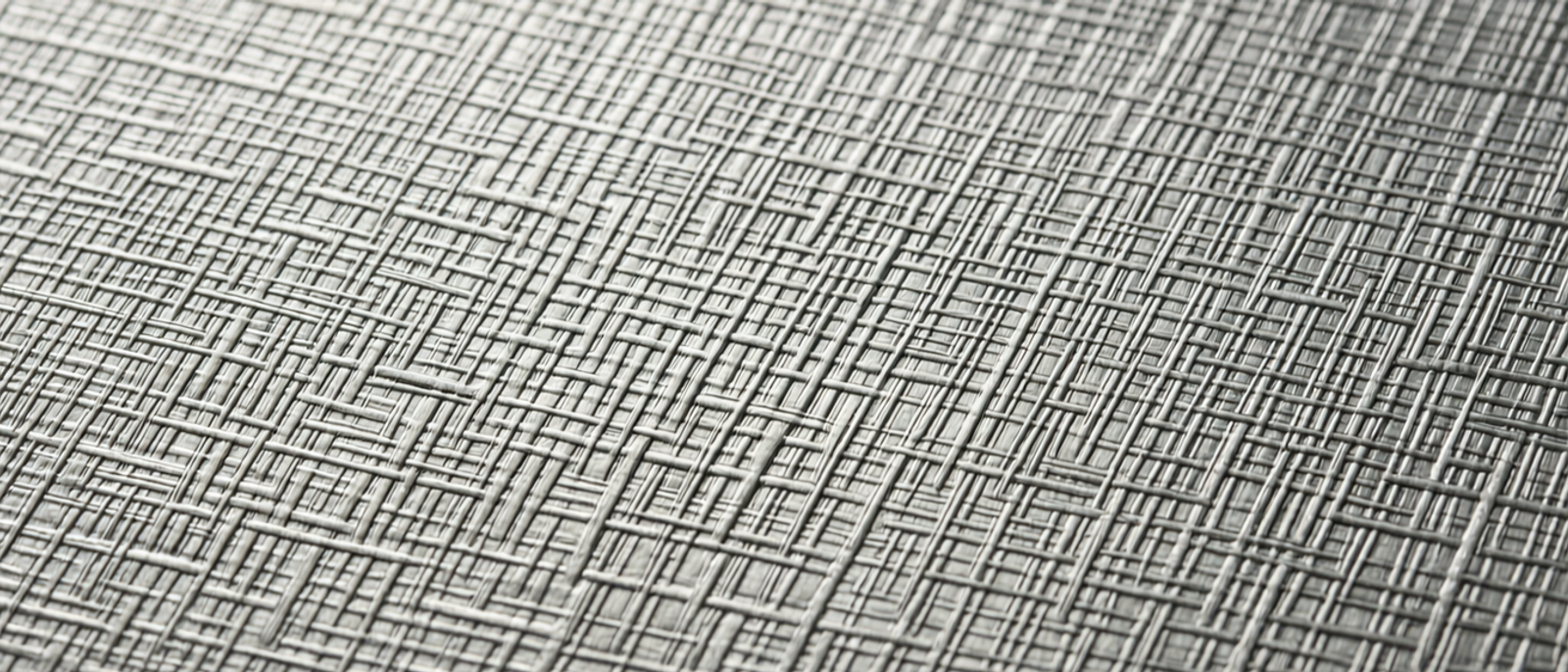

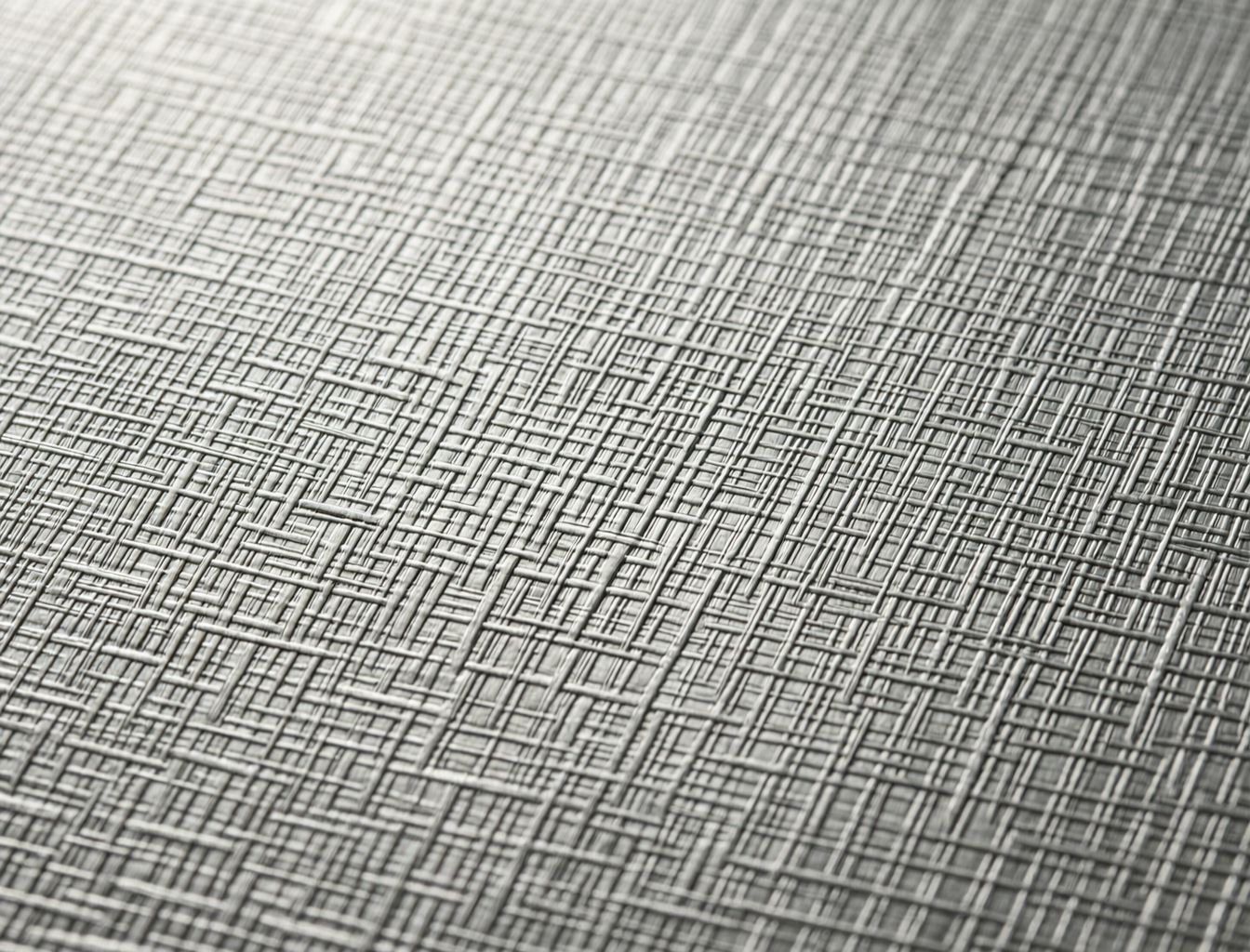

Detail views that show surface, edge, and finish quality.
Surface texture, edge treatment, and finish-control photography help clients judge the material beyond the data.
Questions
What architects and homeowners ask.
Glue-free manufacturing: 12 patents protect thermal bonding at 220°C, eliminating adhesive thermal expansion mismatches that cause texture distortion in laminated products. PET film and powder coating bond directly to steel; no organic adhesives to degrade. Result: pattern stability verified through 1,000-cycle thermal shock testing (-20°C to +80°C), supporting 30-year warranty coverage.
Repair feasibility: integral substrate texture permits blending versus coating replacement. Minor scratches (<0.1mm depth): follow crosshatch pattern with 800-grit abrasive pad. Moderate damage (0.1-0.5mm): localized rotary polishing with 3M Trizact A45, re-establishing Ra 1.5-2.5 μm. Deep gouges (>0.5mm): one-piece seamless construction enables panel replacement without frame disassembly; no color matching required as texture is homogeneous.
No interference: 88% component processing rate (4,527/5,113 units) confirms production viability. Salvagnini P4Xe calibration accounts for 0.02mm thickness variation from embossing; bend radius minimum 2.5× thickness prevents pattern stretch. Backgauge optical sensors read pattern alignment, maintaining crosshatch continuity through 135° bends with <0.5° angular deviation.
Suitable with specification: 304 grade meets ASTM A240 for atmospheric corrosion resistance. Salt spray: 600 hours ASTM B117 with zero red rust. UV stability: 3,000 hour QUV-A testing confirms no polymer degradation (no coatings present). Critical specification: orient pattern perpendicular to rain runoff direction to minimize water spotting; 15° slope minimum recommended for horizontal surfaces.
Certifications: GREENGUARD Gold (UL 2818) for indoor air quality—formaldehyde <5 μg/m³, total VOCs <220 μg/m³. Material: 304 stainless steel with 82% global recyclability rate per ISSF. Manufacturing: ISO 14001 environmental management system at 600M RMB smart factory. Contribution to LEED v4: MR Credit 3 (Building Product Disclosure), MR Credit 4 (Building Life-Cycle Impact Reduction).
