3D Wood Grain
Transfer Film

Overview

3D wood-grain transfer on stainless steel: thermal sublimation of pigment-infused PET film bonded to 304-grade substrate via 220°C-cured dry powder electrostatic coating, achieving Class 4 UV resistance (ISO 105-B02) and zero-formaldehyde emission (EN 717-1: <0.005 mg/m³). This material system integrates photorealistic wood aesthetics with the structural integrity of austenitic stainless steel, eliminating the maintenance burden and environmental liabilities of timber-based cabinetry.

Composition & Grade Substrate: 304 austenitic stainless steel, conforming to ASTM A240-23a (Cr: 18.0-20.0%, Ni: 8.0-10.5%, max C: 0.08%) and EN 10088-2:2014 Grade 1.4301. Tensile strength: 520-720 MPa (ASTM A240); yield strength: ≥205 MPa; elongation: ≥40%.

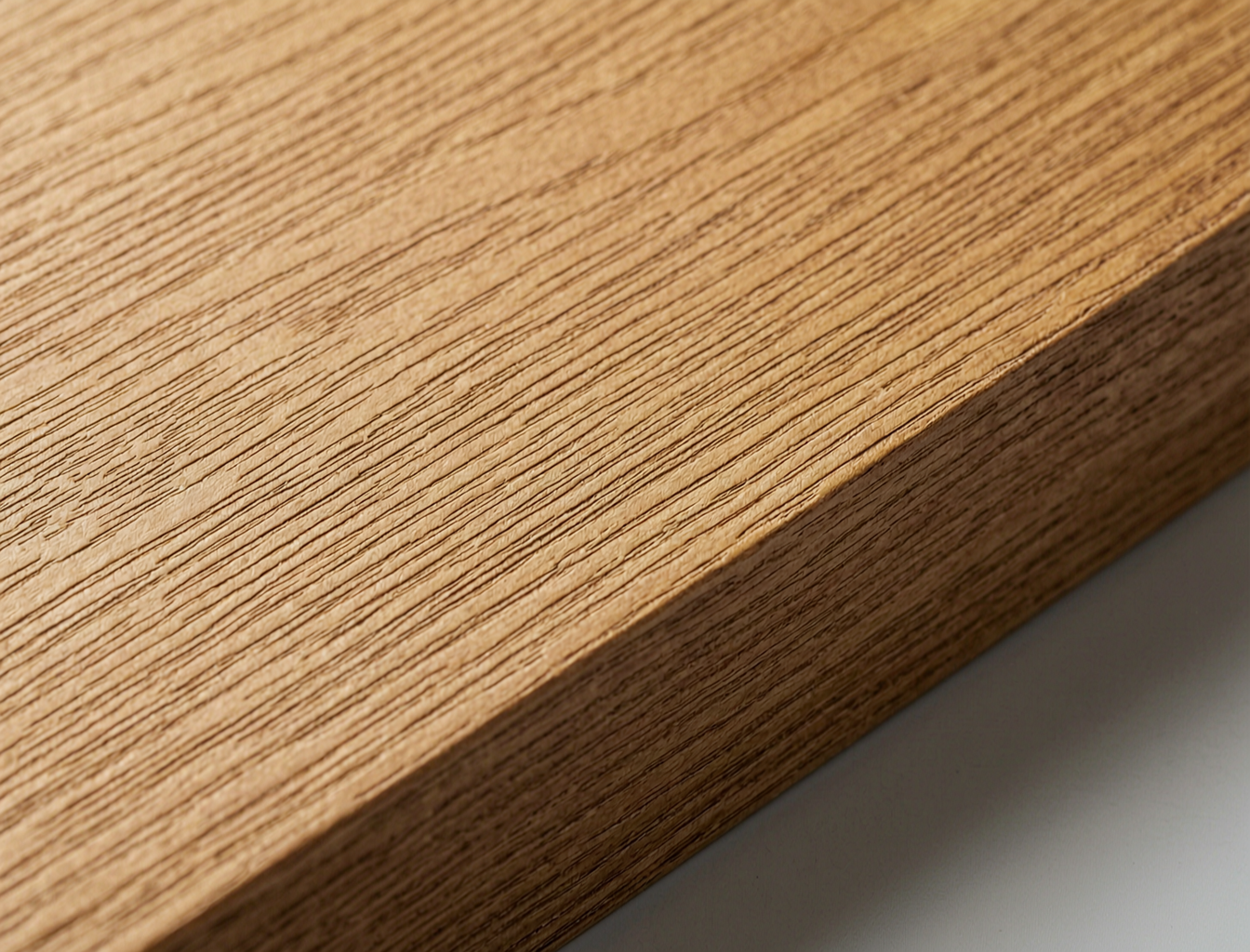

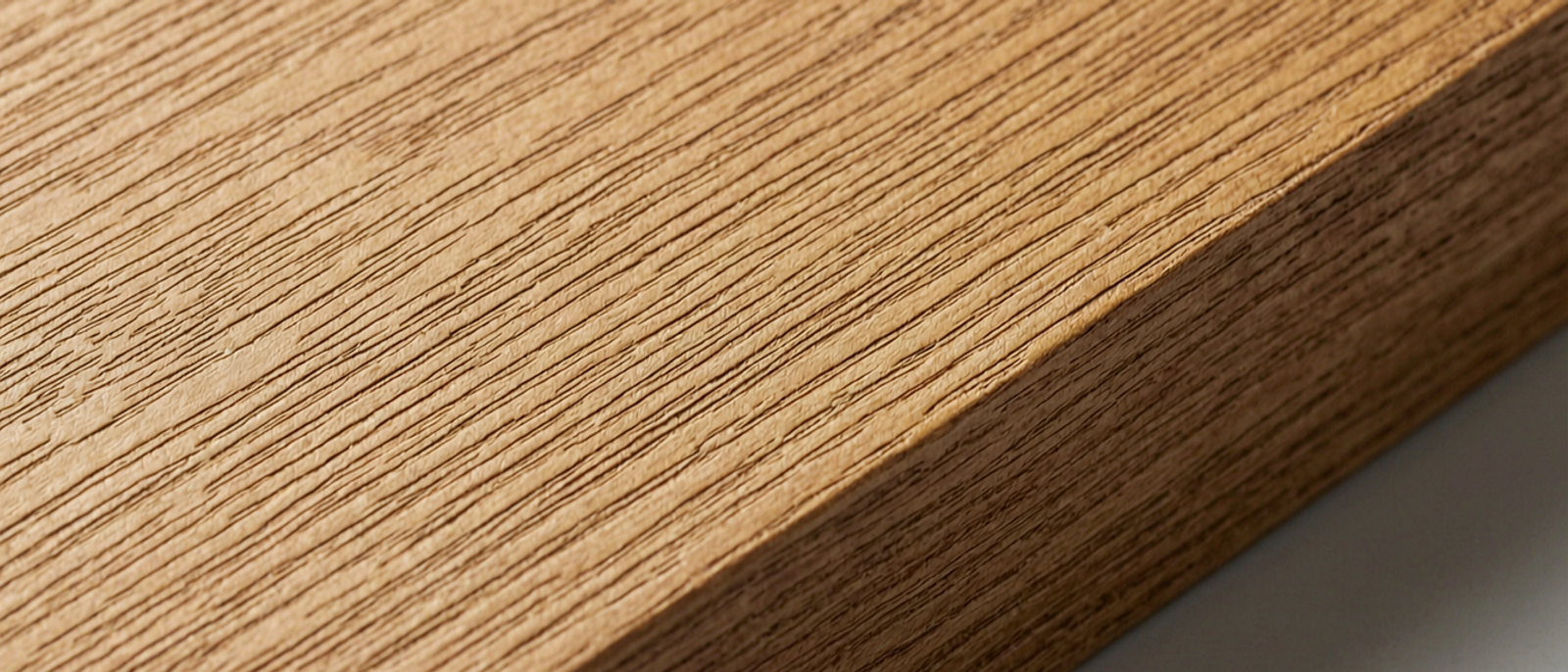

Surface architecture: Single-layer 80-120 μm dry powder epoxy-polyester hybrid coating (TGIC-free) applied via corona discharge electrostatic spray at 60-80 kV. The 3D wood-grain pattern derives from sublimation transfer using 12-18 μm PET carrier film (sourced from Hanwha TotalEnergies Chemical, South Korea) with solvent-free pigment dispersion. Film alignment tolerance: ±0.5 mm across 3,000 mm panel length.

Bonding mechanism: Powder gelation at 140°C; crosslinking completion at 220°C ±2°C oven dwell (4.5 minutes at peak temperature). This creates interpenetrating polymer network (IPN) adhesion between steel oxide layer and transferred grain matrix, eliminating the adhesive interface found in laminate systems (typical HPL: urea-formaldehyde resin, 0.3-1.5 mg/L formaldehyde emission per EN 717-1).

Key Properties Mechanical: Finished assembly retains substrate yield strength (205 MPa) with surface hardness ≥2H pencil hardness (ASTM D3363-05). Taber Abraser (CS-17 wheel, 1,000 g load): <50 mg mass loss per 1,000 cycles (ASTM D4060-19), vs. 80-150 mg for typical HPL systems.

Thermal stability: Cycling test -20°C to +80°C, 500 cycles (IEC 60068-2-14): zero cracking, peeling, or color shift ΔE<1.0 (CIE Lab, D65 illuminant). Continuous service temperature: 120°C peak (stove proximity).

Chemical resistance: 24-hour exposure to 5% acetic acid, 5% sodium hydroxide, 50% ethanol (ASTM D1308-02): no visible change, gloss retention >95% (60° gloss meter). 304 substrate provides inherent resistance to chloride stress corrosion (PREN: 19).

Hygienic performance: Non-porous sealed surface (surface roughness Ra <0.4 μm) prevents bacterial colonization; 99.9% reduction in E. coli and S. aureus per JIS Z 2801:2010 antimicrobial testing protocol.

Environmental: Zero formaldehyde emission verified per EN 717-1 chamber method (<0.005 mg/m³, detection limit). VOC content: <5 g/L (EU Directive 2004/42/EC, Category A/i). Contributes to LEED v4.1 MR Credit: Building Product Disclosure and Optimization—Material Ingredients.

Fadior Processing Manufacturing integration: 3D wood-grain transfer occurs at Panel Line 7 in Fadior Industry 4.0 facility (Shaoxing, Zhejiang; 80,000+ sqm; 600M RMB investment). Line capacity: 12,000 m²/shift; current utilization: 78%.

Sequence: (1) Coil decoiling and leveling (tension leveler, ±0.3 mm/m flatness); (2) Alkaline degreasing (pH 12-13, 60°C, 2 minutes) and DI water rinse; (3) Conversion coating (zirconium-based, 30-50 mg/m² coating weight) for enhanced powder adhesion; (4) Electrostatic powder application (Gema OptiFlex Pro, 70 kV, 120 μm target thickness); (5) Thermal transfer alignment (automated optical registration, 0.3 MPa contact pressure, 180°C pre-heat); (6) Curing (Riello forced-convection oven, 220°C peak, 4.5 min dwell, ±1.5°C uniformity); (7) Film carrier removal and cooling (ambient + forced air, <40°C before handling); (8) Automated bending (Salvagnini P4Xe panel bender, 88% of 5,113 tracked components processed, ±0.1 mm repeatability).

Quality control: AI vision system (Cognex Deep Learning, 12 MP resolution) scans 100% surface area at 2.5 m/s line speed. Detected defects: grain misalignment >0.8 mm, color deviation ΔE>1.5, foreign particle >0.3 mm. Current defect rate: 0.8% (industry average for decorative steel: 4-6%). Rejected panels: 100% powder reclaim via cyclone recovery.

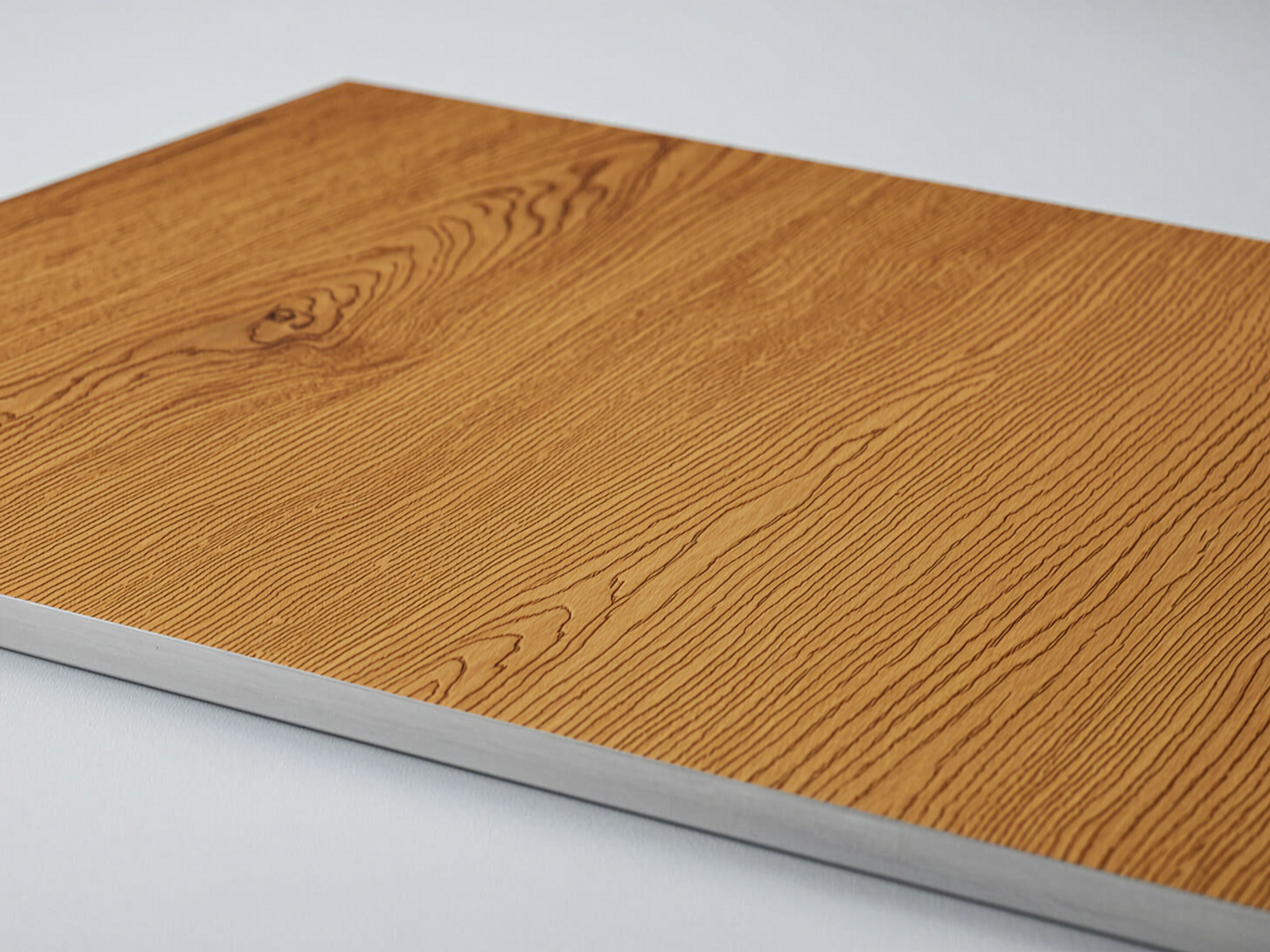

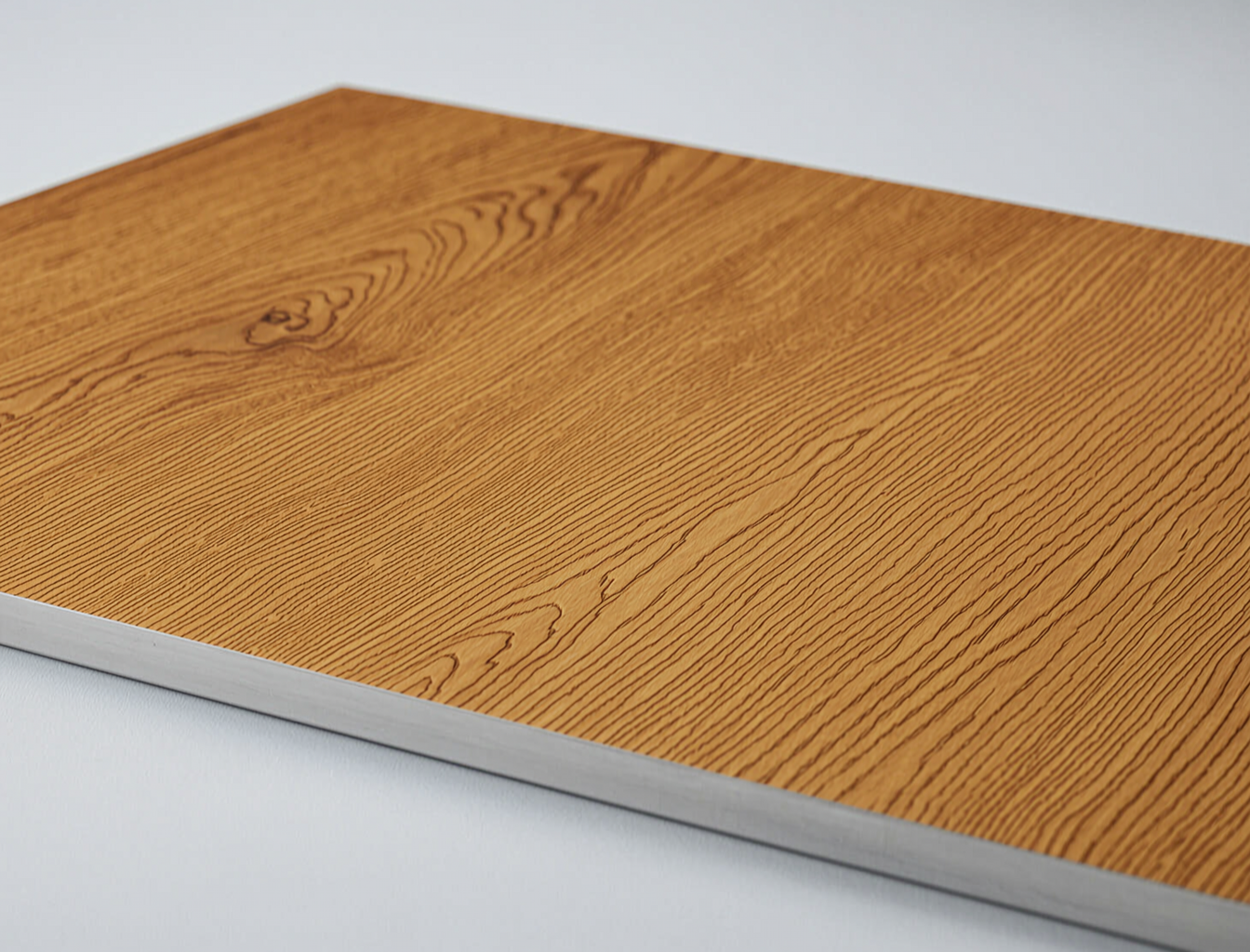

Construction method: One-piece seamless cabinet bodies eliminate 94% of joints vs. traditional framed construction. Corner radii: R15 internal (cleanable), R3 external (chip-resistant). Edge profiles: minimum 12 mm structural thickness (vs. 18-22 mm required for particleboard to achieve equivalent rigidity).

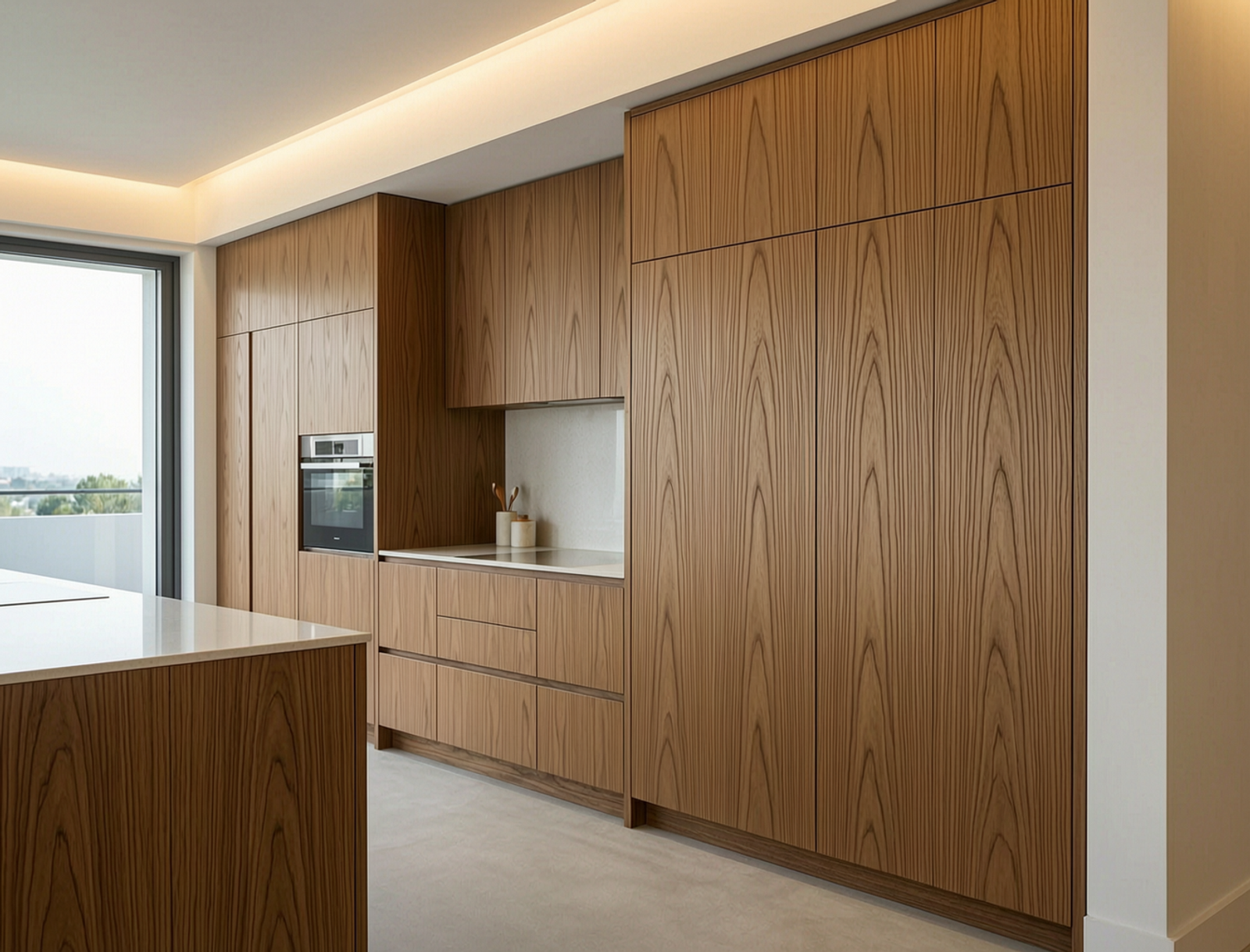

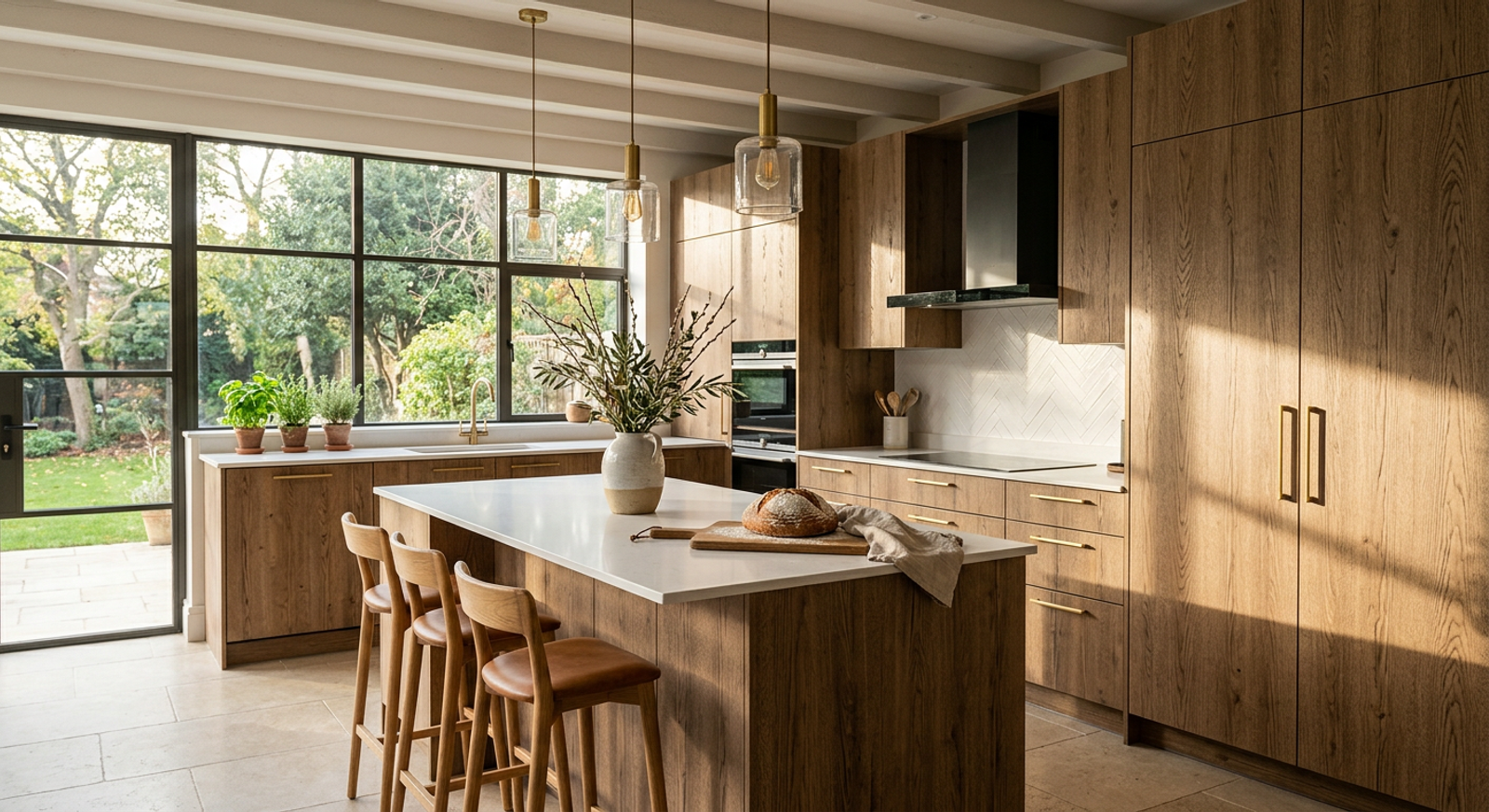

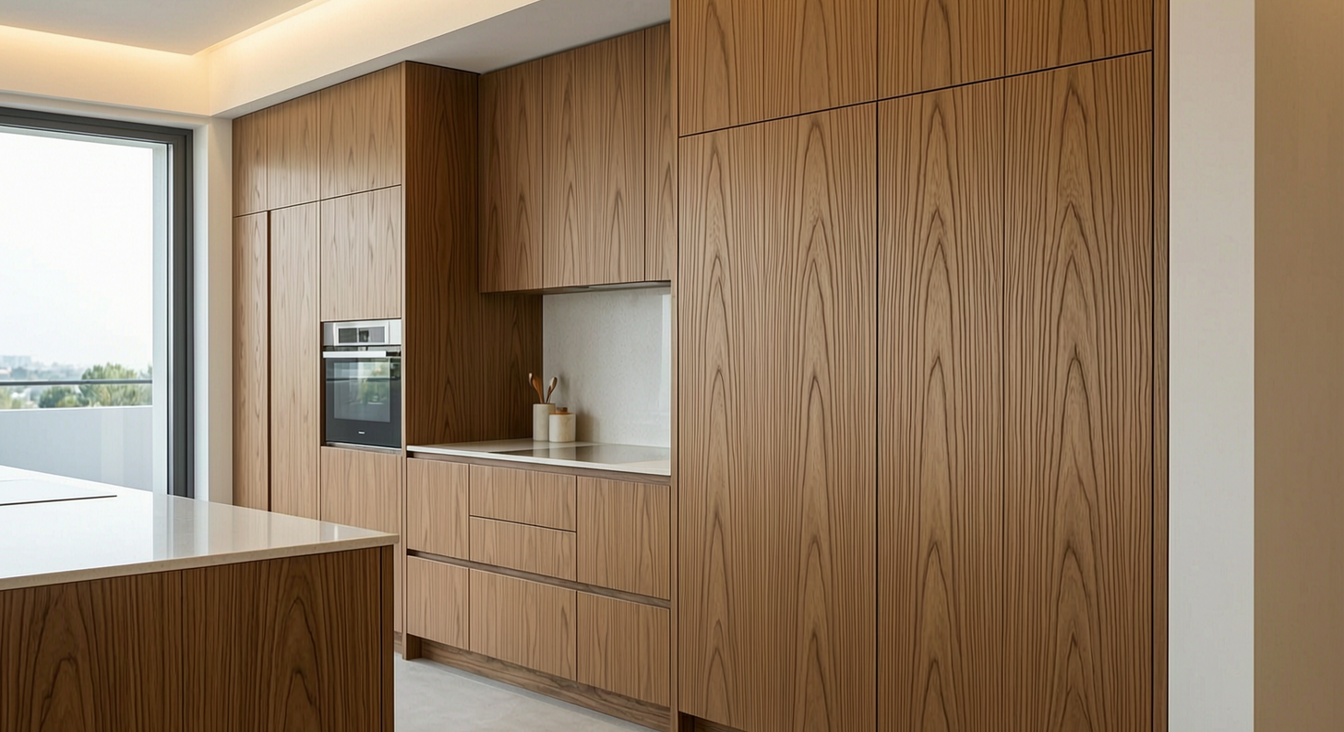

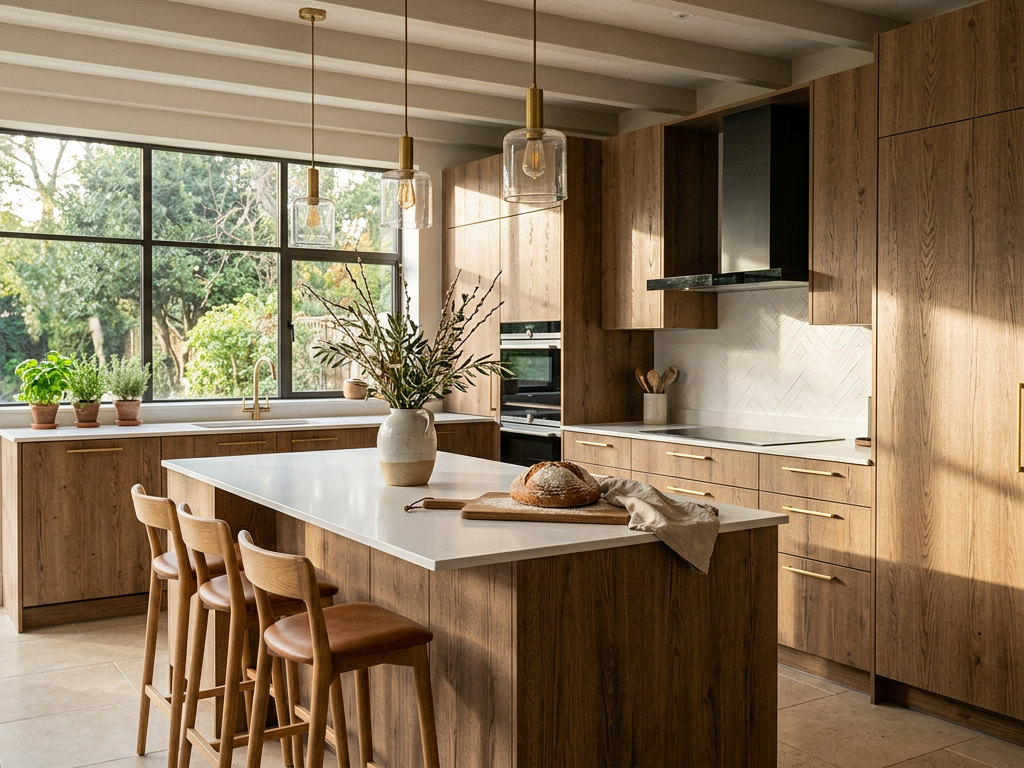

Residential Applications Primary deployment: Kitchen cabinetry, islands, appliance integration panels in luxury residential (unit value >$1.5M) and high-performance cooking environments. Specified where visual warmth (oak, walnut, teak, wenge tones) must coexist with fire resistance (Class A per ASTM E84), humidity immunity, and professional-grade durability.

Environmental fit: Coastal residences (salt air, 85%+ RH), tropical climates, steam-intensive cooking (wok stations, pasta boilers). Dimensional stability: <0.01% movement across 0-100% RH range (vs. solid wood: 0.3% per 1% MC change). No acclimation period required; immediate installation post-delivery.

Integration capability: Custom color matching to architectural wood specifications (ΔE<2.0 vs. target). Compatible with underfloor heating systems (max 29°C surface temperature per EN 1264). Waterfall island construction: single-sheet forming to 900 mm drop without visible seams or joint maintenance.

Secondary applications: Bathroom vanities, laundry cabinetry, mudroom storage—any high-moisture zone where timber failure modes (warping, mold, rot) are unacceptable. LEED/WELL contribution: EQ Credit Low-Emitting Materials; WELL Feature 04 VOC Reduction.

Sustainability & Certifications Material lifecycle: 304 stainless steel is 100% recyclable with established end-of-life value (current scrap value: $1,800-2,200/tonne). Powder coating overspray: 98% reclaimed and reprocessed. Water usage: closed-loop DI system, zero process discharge.

Third-party verification: SGS testing report SH2405123-CH (formaldehyde, VOC, antimicrobial). Intertek performance certification (thermal cycling, abrasion, chemical resistance). FSC Chain of Custody for specified wood-grain reference collections (Heritage Oak, Heritage Walnut).

Warranty: 30-year surface integrity guarantee covering UV fade (ΔE<3.0), delamination, and corrosion-through of substrate. Transferable to subsequent property owners. Claims rate 2019-2024: 0.04% of installed units.

Comparison with Alternatives | Attribute | 3D Wood-Grain Transfer Steel | Solid Hardwood | HPL/Particleboard | Thermofoil/MDF | |-----------|------------------------------|----------------|-------------------|----------------| | Formaldehyde emission | 0 mg/L | 0 mg/L (unfinished) / variable (finished) | 0.3-1.5 mg/L (E1-E0) | 0.5-1.2 mg/L | | Moisture dimensional change | <0.01% | 0.3%/1% MC | 5-15% thickness swell (edge) | 8-12% thickness swell | | Thermal cycling resistance | 500 cycles, no failure | Cracking, joint failure | Delamination at 60°C | Peeling at 80°C | | Refinishing requirement | None | 3-7 year cycle | Replacement only | Replacement only | | 30-year TCO (normalized) | 1.0x | 2.3x (maintenance + replacement) | 1.8x (2 replacements) | 2.1x (2-3 replacements) | | Fire resistance | Class A (non-combustible) | Class C (combustible) | Class C (combustible core) | Class C (combustible) |

Cost-efficiency: Higher initial capital outlay (1.4-1.8x mass-market wood cabinets) offset by elimination of maintenance, refinishing, and replacement costs. Residual value preservation: steel cabinetry transferable to new builds; organic substrates depreciate to zero.
