- Outdoor kitchen unit
- An outdoor kitchen unit is a fixed or modular section that supports cooking, food preparation, washing, storage or appliance housing in an exterior living area.
What planning directions does NKBA identify for 2026?
NKBA’s 2026 Kitchen Trends Report highlights outdoor connection, enhanced storage, powerful ventilation and smarter appliances as directions in kitchen planning. Use them as options to assess against the household’s routines and the terrace, rather than as a reason by themselves to add more modules.
What should stainless steel outdoor kitchen units include?
Begin by describing the unit as a sequence of jobs, not as a collection of doors. A useful sequence has a place to land groceries, a preparation surface near the cooking appliance, a protected location for utensils, a washing point, a serving surface and a place for waste. The household does not use every zone at once, but the plan should make it possible for two people to cook without repeatedly crossing the same narrow passage. For a weekly family dinner, that usually means giving the cook a clear side of the appliance and keeping plates, drinks and seating out of the hottest and busiest route.
The first drawing should identify what each bay contains. Label appliance models, opening directions, power and water needs, drainage assumptions, ventilation notes, access panels and any required clear space. A module that looks tidy in an elevation may become frustrating if a refrigerator door blocks the preparation area or a sink has no practical place for drying. Keep the plan simple enough to read on site. The best proposal lets a homeowner point to every activity and ask where it happens.
Use Fadior kitchen collections for room-scale planning as a reference point for how a coherent cabinet system can be documented, but make exterior dimensions and appliance instructions the decision-makers. A terrace has sun, wind, rain, cleaning and guest movement that an indoor render cannot predict. The answer is not to overfill the perimeter; it is to leave deliberate working surfaces, walking routes and service zones.
How should the cooking and cleanup zones be planned?

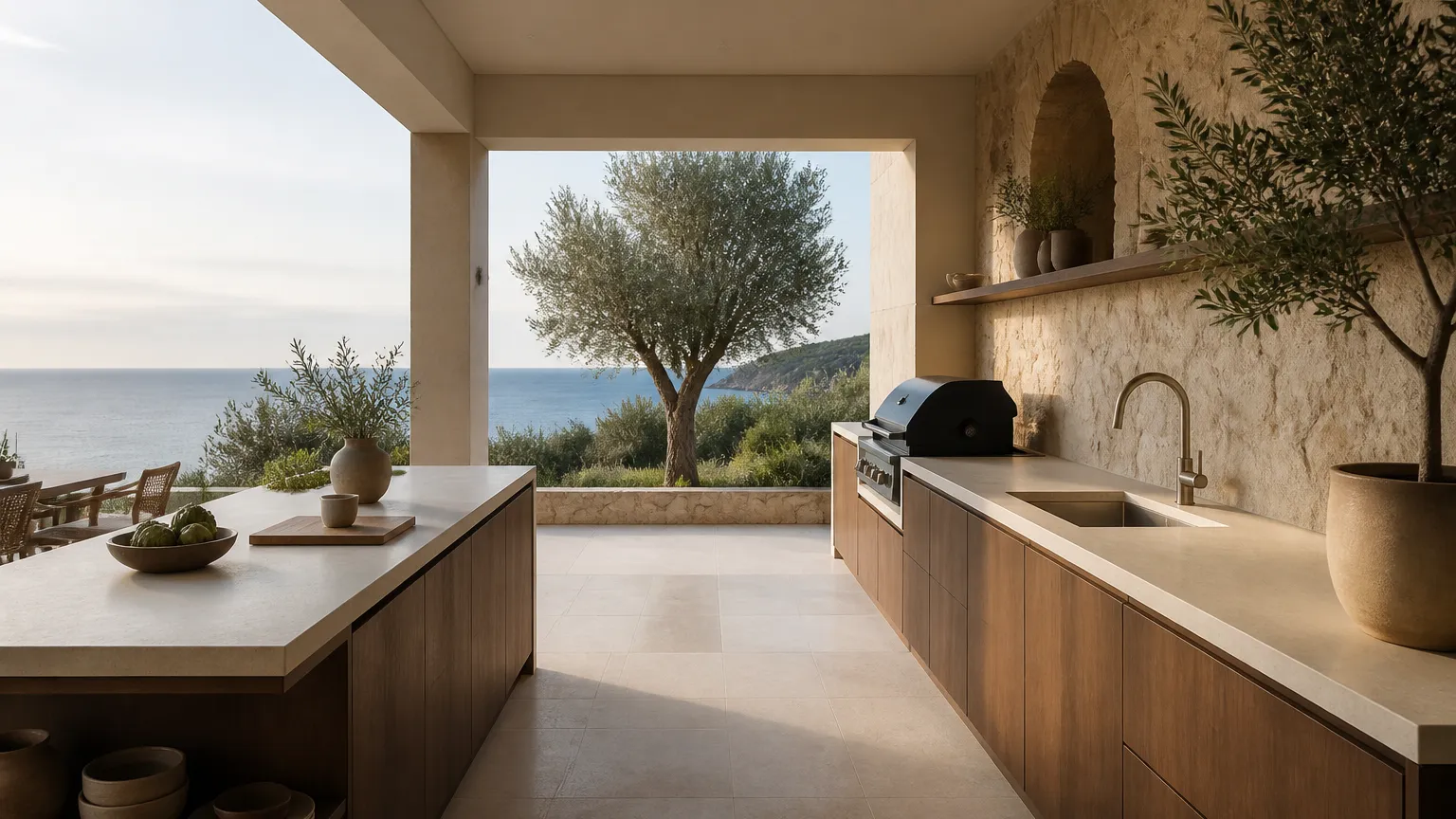

The cooking zone needs more than a grill opening. It needs safe landing space for trays, a place to keep tools, a route to the preparation surface and room to open any adjacent doors. Put the most frequent action close to the appliance, then protect the route back to the table. A long uninterrupted counter can be more useful than adding a narrow display bay, because it gives the household a place to set a hot tray, stage ingredients and serve without balancing items on a lid or armrest.

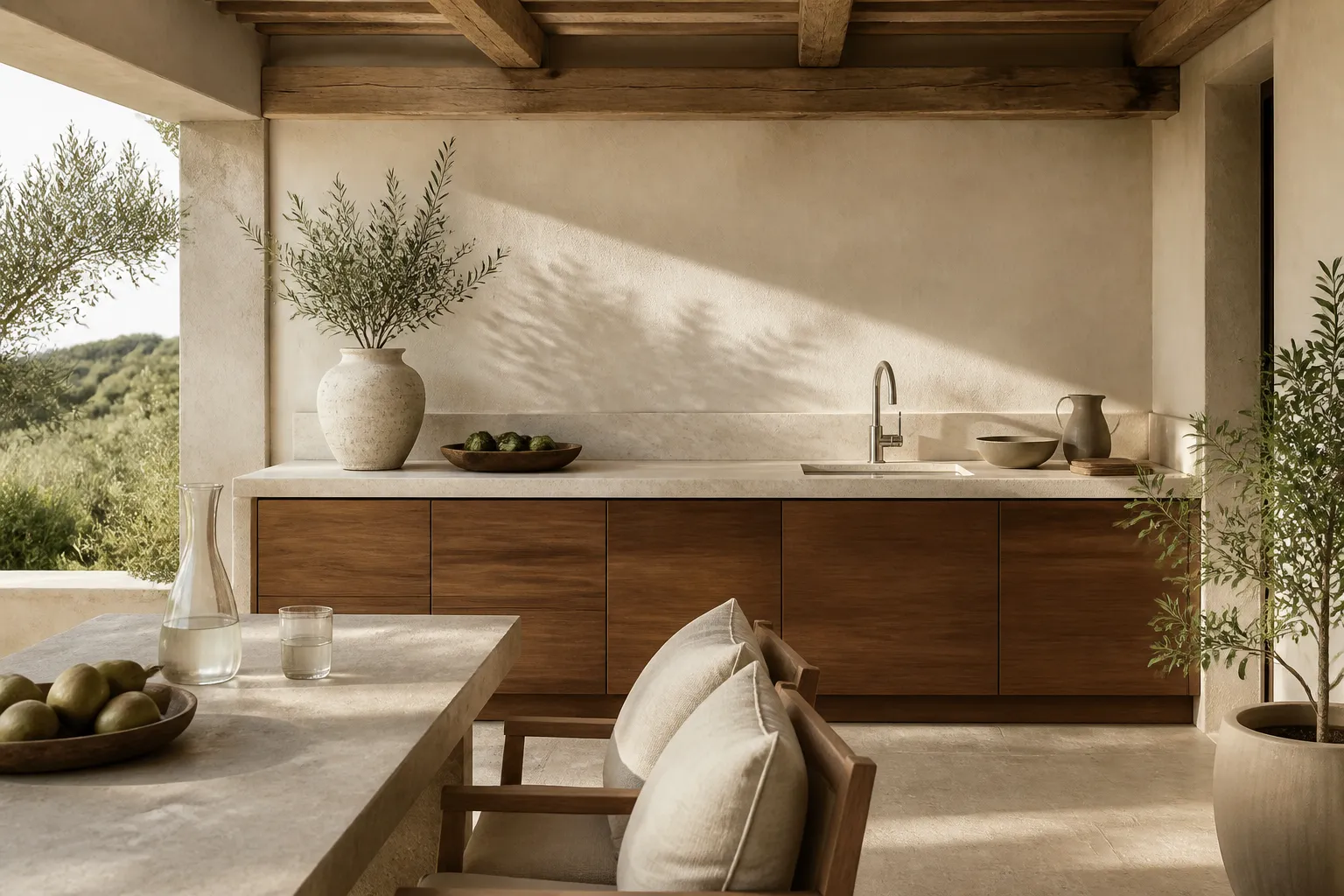

The cleanup zone should be planned as a complete sequence: water supply, sink, waste, drying, storage for cleaning tools and an accessible route to any valve or trap. If the project includes a dishwasher or another powered appliance, show the connections and the access strategy on the same drawing. A handsome door front is not a substitute for a workable service opening. Choose a location that does not make the person washing up stand in the main serving path.
A practical review can be done with ordinary objects. Place a tray, a chopping board, a stack of plates and a bin on a scaled plan. Then walk the route from refrigerator to preparation surface, appliance, serving area and sink. If these movements collide, revise the layout before the units are ordered. Fadior kitchen product system overview pages can help a buyer discuss cabinet organization, while the outdoor proposal must state its own appliance and utility assumptions. Apply these workflow questions through the Singapore outdoor planning guide before fixing the module layout.

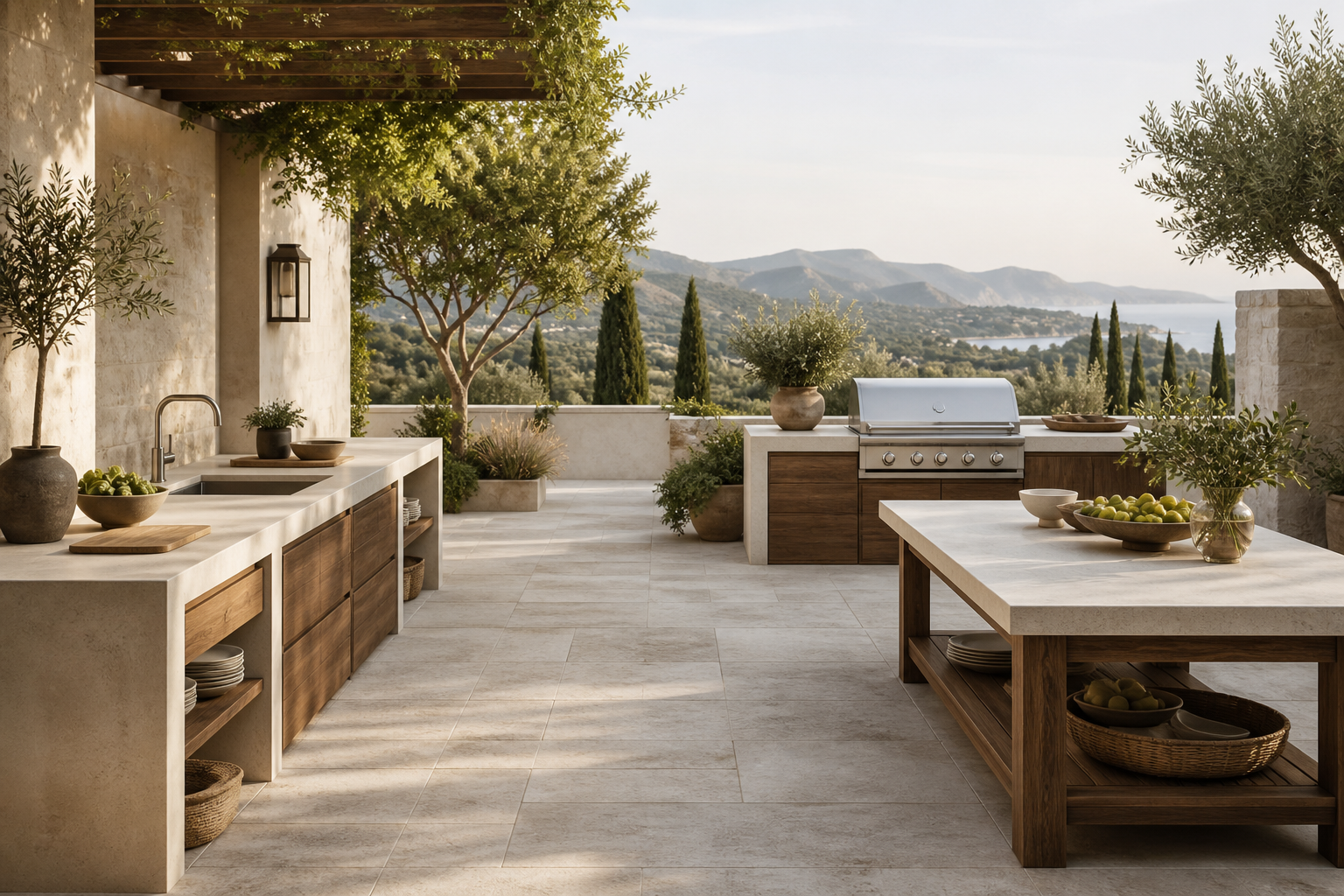

A modular plan can mark five work zones: cooking, a landing area for hot trays, preparation with waste access, storage for tools and serving items, and a social area where guests do not block the cook. On a small terrace, several zones can share one run; on a larger site, they can be separated where circulation allows.
Which clearances and ventilation questions matter before installation?
Plan clearance and ventilation around the appliance, its installation manual, the enclosure and nearby surfaces. Record the model, barrier detail and enclosure on the drawings so the installer can confirm the project clearances.
Ask whether the kitchen is fully open, partly enclosed or under a roof. A roof, side walls, screens and windbreaks can change how air moves through the space. Weber’s guidance also shows that ventilation treatment varies with the amount of permanently open wall area. Show the enclosure in plan and elevations so the installer can check the manual’s ventilation and clearance requirements.
The drawing should also show the path to the shutoff, outlet, appliance back and any service panels. A builder should not need to dismantle a finished cabinet run just to reach a connection. Include the appliance model number, manual revision and contact for the responsible trade in the handover pack. That record makes later service safer and reduces the temptation to improvise around a fixed installation.
How do cold storage and electrical access change the layout?
Cold storage changes a terrace from a serving area into an operating kitchen. Put it close enough to preparation that ingredients do not travel through the guest path, yet far enough from heat sources that the appliance can operate as its manufacturer intends. Use the appliance manual and local advice to plan cold storage for the household's food and serving routine.
Electrical planning needs the same discipline. Outdoor outlets are exposed to weather and cleaning, so their protection, cover type, location and accessibility should be planned with a qualified electrician. The U.S. Consumer Product Safety Commission advises weatherproof covers and ground-fault protection for outdoor outlets. Keep controls and disconnects reachable after the units are installed. A hidden outlet may look clean on a render but become a poor maintenance decision if it cannot be inspected or reset.
For energy comparison, look for product-specific efficiency information rather than assuming that every built-in cooler behaves alike. ENERGY STAR includes built-in coolers in its refrigerator criteria and sets different thresholds by product type. That makes the model number important: it lets the buyer compare capacity, ventilation needs, electrical load and efficiency on the same basis. Put these details in the appliance schedule, not in a salesperson's recollection.
What performance evidence should a buyer request?
Ask for evidence that matches the component being discussed. Review the cabinet body, door finish, hardware and cooking appliances separately. Request the material specification, care instructions and relevant product documents for each part of the outdoor kitchen.
For an exterior cabinet proposal, request the stated material specification, construction drawings, hardware information, finish-care guidance, warranty scope and a named service route. If a supplier specifies 304, ask where it is used, how visible edges and joints are finished, how the named surfaces should be cleaned and which warranty conditions apply.
Fadior material library for finish decisions and Fadior manufacturing proof and process can frame a productive discussion about documentation. The final proposal should still identify its own scope. A buyer needs a list that distinguishes included units, appliances, utility work, stone or surface work, installation, testing, care instructions and post-handover contact.
Fadior specifies 304 stainless steel for cabinet bodies. Doors, finishes, countertops, wall panels and installation materials each follow their own specifications and supporting documents. An outdoor proposal should identify the materials and care records for each component.
How should a modular outdoor kitchen be planned in phases?
Mark the permanent cabinet run, flexible island, dining edge, covered work area and service side before dividing the order into phases. The plan should name the modules included now, the modules reserved for later, and the utility points that must be installed or kept accessible in the first phase.
A future appliance bay is useful only when its opening, door swing, ventilation clearance and utility capacity are checked against the intended model. List the current appliance model and manual, identify which panels can be removed, and record what dimensions or connections a later replacement must match. Show these responsibilities and any later-phase work separately in the quote.
Who should review the final layout before ordering?
The final review should include the homeowner, the person responsible for the cabinet scope, the appliance supplier and the qualified professionals responsible for utility interfaces. Each participant sees a different risk. The homeowner tests whether the layout supports real routines. The cabinet team confirms unit dimensions, openings and access. The appliance supplier checks the current instructions. The trades confirm that the planned connections and enclosure conditions can be delivered at the site.
Use a simple review agenda. First, walk the cooking, serving and cleanup route. Second, open every door and appliance on the drawing. Third, identify the route to each service point. Fourth, compare the proposal schedule with the installation manuals. Finally, list open questions with an owner and a due date. This sequence turns a general design conversation into a project-ready decision.
Do not rush past a conflict because the visual scheme is attractive. A revised cabinet length, an added access panel or a relocated outlet is cheaper to resolve on a drawing than after the terrace is fitted. Once every party agrees on the same current information, the homeowner can approve the order with a much clearer view of what will arrive and how it will operate.
| Decision area | Evidence to request | Question for the proposal |
|---|---|---|
| Cooking appliance | Model manual and installation drawing | What clearances, ventilation and service access are required? |
| Cold storage | Model data sheet and electrical requirements | Where does heat reject and how is the outlet protected? |
| Cabinet units | Construction, hardware and care documentation | What is included behind each front and how is it serviced? |
| Water and drainage | Coordinated plumbing drawing | Where are shutoffs, traps and access panels located? |
| Handover | Final drawing, manuals and contacts | Who responds if a component needs adjustment after installation? |
Why should service access be designed before the fronts?
Outdoor kitchens need care from the first season, not only after a fault. Grills need cleaning, refrigerators need airflow according to their manuals, sinks need access to plumbing and electrical devices may need inspection or reset. Service access is therefore part of the architecture. The proposal should identify removable panels, door swings, appliance pull-out routes and the location of valves, receptacles and controls. These decisions are easiest to make before fabrication, when the terrace plan can still change.
A good test is to ask a simple question for every concealed component: how is it reached without damaging a finished face? If the answer is unclear, request a detail drawing. Do the same for cleaning. Specify where grease trays, filters, bins and cleaning tools are stored, and leave a clear place for wet or hot items to rest. An outdoor kitchen that is easy to reset after a dinner will be used more often than one that requires moving half the table to wash a pan.
Avoid treating access panels as a visual failure. When their position is coordinated with the cabinet rhythm and documented on the drawing, they are evidence that the project anticipates real use. Fadior cabinet manufacturing process guide can support the conversation about precision and accountability, while the local installation team remains responsible for the actual utility and appliance interfaces.
How should final outdoor kitchen proposals be compared?
Put competing proposals into the same schedule before comparing cost. Use rows for units, appliance models, preparation surface, sink and faucet, storage, power, water, drainage, gas work where applicable, ventilation measures, installation, commissioning, care materials and post-installation support. Mark every unknown as an open item. A low initial number can be impossible to compare if it omits the trade work, service openings or appliance accessories required to make the layout operate.
Then review the plan with the people who will use it. Ask who brings food from the house, who cooks, who clears plates and who cleans. A family that hosts ten people needs a different serving strategy from a couple using the terrace for breakfast. The shared drawing should make those routines visible. This is where a long counter, a wider passage or a better-positioned sink may add more value than one additional storage bay.
Keep the proposal decision evidence-led. The strongest supplier does not ask the client to trust a rendering alone; it identifies what will be installed, where it connects, who approves the interfaces and what happens after handover. That standard produces a clearer contract and a calmer project meeting.
A pre-order checklist for outdoor kitchen units
- Measure the terrace, doors, steps and delivery route in millimeters before fixing unit lengths.
- Record the exact appliance model numbers and attach the current installation manuals.
- Show cooking, preparation, washing, cold storage and serving routes on one scaled drawing.
- Confirm fuel, power, water, drainage, ventilation and weather exposure with qualified local trades.
- Locate shutoffs, protected outlets and service panels where they remain accessible after installation.
- List included accessories, commissioning tasks, care instructions, warranty limits and service contacts.
When is the outdoor kitchen ready for handover?
Handover is complete when the physical installation and the information package agree. The homeowner should receive final drawings, appliance manuals, cleaning guidance, warranty documents, product contacts and a simple record of who installed each utility connection. Walk the space with the installer. Open doors, remove trays, locate shutoffs, check the access panels and confirm that the household can understand the appliance controls without relying on memory.
This is also the moment to separate normal care from work that needs a professional. Routine wiping, emptying and visual checks belong in a clear care guide. Fuel, power, plumbing, appliance repairs and enclosure changes should follow the appliance instructions and local professional guidance. A written boundary protects the household from improvised changes after a successful first season.
A well-planned outdoor kitchen does not need to feel technical while it is being used. The documents can stay in a slim handover folder, while the terrace works as a relaxed place to cook and gather. The planning effort shows up as clear work zones, accessible services and a layout that continues to make sense after the party is over.
